LP-103450 Lithium Ion Polymer Battery Cells 1800mah 6.66wh Fast Charge / Discharge
LP-103450 Lithium Ion Polymer Battery Cells 1800mah 6.66wh Fast Charge / Discharge
LP-103450 Lithium Ion Polymer Battery Cells 1800mah 6.66wh Fast Charge / Discharge
LP-103450 Lithium Ion Polymer Battery Cells 1800mah 6.66wh Fast Charge / Discharge
LP-103450 Lithium Ion Polymer Battery Cells 1800mah 6.66wh Fast Charge / Discharge
LP-103450 Lithium Ion Polymer Battery Cells 1800mah 6.66wh Fast Charge / Discharge
LP-103450 Lithium Ion Polymer Battery Cells 1800mah 6.66wh Fast Charge / Discharge
LP-103450 Lithium Ion Polymer Battery Cells 1800mah 6.66wh Fast Charge / Discharge
Specifications
Brand Name :
Cyclenpo
Model Number :
LP-103450
Certification :
CE MSDS UN38.3 ROHS
Place of Origin :
Shenzhen,China
MOQ :
50
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150000 pieces per month
Delivery Time :
1~2weeks for samples; 3~6weeks for mass production
Packaging Details :
Standard carton box packing,filled with epe foam.
Cell Type :
Lithium polmer battery / batteries battery
Type :
Li-Ion, Li-polymer
Fully charge voltag :
4.28v Defined in this DOC: FC=4.28v
Max.charge current :
Constant current 1c constant voltage FC 0.01C cut-off
Size :
10*34*50mm
Description

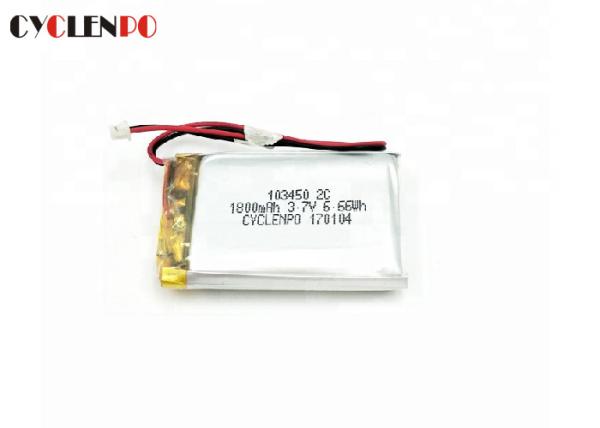

LP-103450 3.7 v 1800 mah 6.66 wh lithium ion polymer battery cells

Lithium ion polymer battery features:

1 . high volume ratio and energy
2 . low self-discharge but fast charge&discharge rate
3 . excellent performance of high and low temperature
4 . green energy and batteries are in compliance with UL/CB/CE/ROHS/UN38.3 standards

Application

1 . Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
2 . Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3 . Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
4 . Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
5 . Illuminate devices: miner lamp, searchlight.
6 . Others: toys, models.

Specification
NO.
Item
Specifications
1
Nominal capacity
1800mAh @ 0.2C Discharge
2
Initial Impedance
Pack ≤50 mΩ
3
Nominal voltage
3.7V
4
Fully charge voltage (FC)
4.28V Defined in this DOC: FC = 4.28V
5
Fully discharge voltage (FD)
3.0V Defined in this DOC: FD = 3.0V
6
Charge current
0.5=900mA
Standard Charging
1C=1800mA
Rapid charge
7
Standard charging method
0.2C CC ( constant current ) charge to FC, then CV(constant voltage FC)charge till charge current decline to ≤0.01C polymer battery
0.2C CC FC,CV( FC)≤0.01C
8
charging time
6.0 hours(Ref.)
Standard Charging
1 to 1.5hours(Ref.)
Rapid charge
9
Max. charge current
Constant Current 1C Constant Voltage FC 0.01 C cut-off
10
Max. discharge current
Constant current 1C end voltage FD
11
Standard Discharge Current
Constant current 0.5 C end voltage FD
12
Charge cut-off voltage
Ref. 7.1 VDET1
13
Discharge cut-off Voltage
Ref. 7.1 VDET2
14
Operating temperature
0℃~45℃
Charging
-20℃~60℃
Discharging
15
Storage temperature
-10℃~ +45℃ less than 1 month
Recommended storage temperature: 25℃,at the shipment state
-10℃~ +35℃ less than 6 months
at the shipment state:25℃
16
Recoverable capacity
Constant current 0.2C charge to FC, then constant voltage FC charge to current declines to 0.01C, rest for 10min,constant current 0.2C discharge to FD,rest for 10min.Repeat above steps 3 times, recording the maximum capacity
17
Storage Humidity
≤75% RH
18
Appearance
Without distortion and leakage
19
Standard testing condition
Temperature: 23±5℃
Humidity : ≤75%RH
Atmospheric Pressure : 86-106 Kpa
