Rechargeable 3.7 V Polymer Lithium Ion Battery , High Voltage Lithium Polymer Batteries 500mah
Rechargeable 3.7 V Polymer Lithium Ion Battery , High Voltage Lithium Polymer Batteries 500mah
Rechargeable 3.7 V Polymer Lithium Ion Battery , High Voltage Lithium Polymer Batteries 500mah
Rechargeable 3.7 V Polymer Lithium Ion Battery , High Voltage Lithium Polymer Batteries 500mah
Rechargeable 3.7 V Polymer Lithium Ion Battery , High Voltage Lithium Polymer Batteries 500mah
Rechargeable 3.7 V Polymer Lithium Ion Battery , High Voltage Lithium Polymer Batteries 500mah
Specifications
Brand Name :
Cyclenpo
Model Number :
LP-852528
Certification :
CE MSDS UN38.3 ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
50
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150000 pieces per month
Delivery Time :
1~2weeks for samples; 3~6weeks for mass production
Packaging Details :
Standard carton box packing,filled with epe foam.
Color :
Silver
Application :
Power Tools
Size :
H8.5*W25.0 *L 28.0mm
Nominal Capacity :
500mah
Description

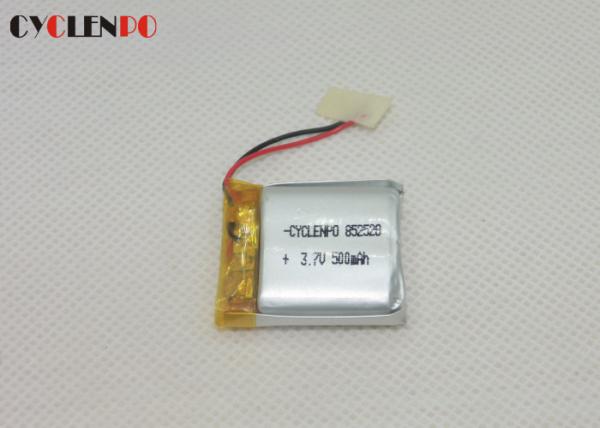

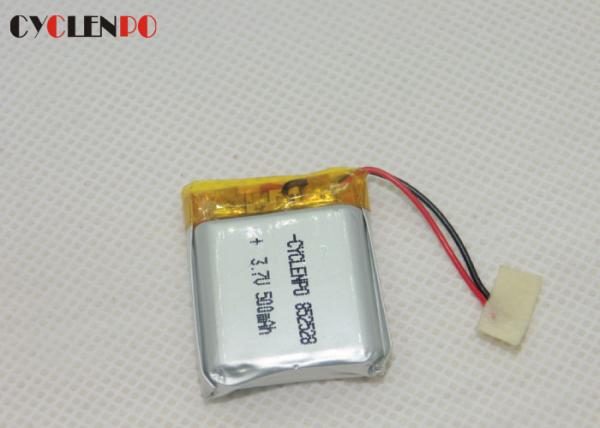

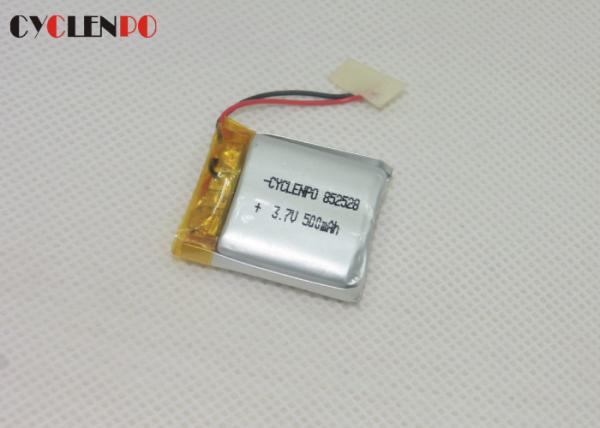

Rechargeable high capacity 3.7 V 500 mah lithium ion polymer battery

Features

1 . Safety: safest Li-Ion battery, CE UL approved, built-in PCM
2 . Clean and Green energy, no toxic material contained
3 . Long life cycle: more than 500 times
4 . No memory effect, highly efficient, charge anytime
5 . Small size and light weight,
6 . Good performance at high temperature
7 . Low self-discharge rate: < 3% monthly

Application

1 . GPS, MP3, MP4, PDA, PMC, PMP, PSP, portable electrograph,camcorder, portable pc, laptop, tablet pc;
2 . Lights, torch, searchlight, miner lamp, safety helmets, safety headlights;
3 . Bluetooth headsets, e-books, mobile DVD, mobile TV, mobile scales, handheld computer, positioning devices,interphone, storing power.
4 . Wireless meter reading, wireless ordering, wireless data transmitter, handheld scanner, mini-speaker, R/C toys, robot.

No Item Rated Performance Remark
1 Rated Capacity Typical 500mAh Discharge at 0.6C after standard charge fully.
Minimum 450mAh
2 Nominal Voltage 3.7V Mean operation voltage during standard discharge.
3

Voltage at end of

Discharge

 3.0V Discharge cut-off voltage.
4 Charging Voltage 4.2±0.03V
5 AC (1KHz) Impedance New Cell Max.(mW) ≤100mΩ
6 Standard Charge

Constant Current 0.5C

Constant Voltage 4.2V

0.01 C cut-off

 Charge time: Approx 4.0h.
7 Standard Discharge

Constant current 0.2 C

end voltage 3.0V
8 Fast Charge

Constant Current 1C

Constant Voltage 4.2V

0.01 C cut-off

 Charge time: Approx 2.5h.
9 Fast Discharge

Constant current 1 C

end voltage 3.7V
10 Maximum Continuous Charge Current 1.0C
11 Maximum Continuous Discharge Current 0.5C
12 Operation Temperature Range Charge: 0~45°C

60±25%RH.

Bare Cell.
Discharge: -20~60°C
13

Storage Temperature

Range

 Less than 1 year: -20~25°C
Less than 3 months: -20~40°C
14 Storage Humidity Range 60±25%RH.
15 Weight Approx:13g Whole product
16 Product Dimension Length:Max28mm Initial dimension
Width: Max25mm
Thickness:Max.8.5mm

Rechargeable 3.7 V Polymer Lithium Ion Battery , High Voltage Lithium Polymer Batteries 500mah
