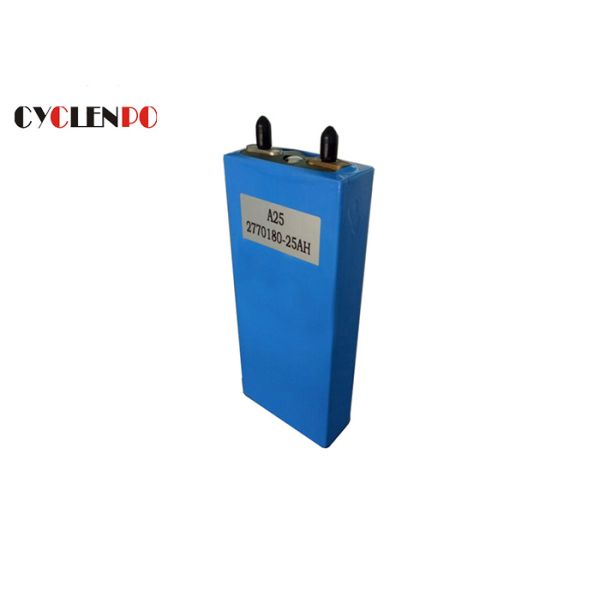

3.2v 25ah Deep Cycle Lifepo4 Prismatic Cell for Solar Power and EV Power
About Lifepo4
1) High density of energy
2) Small size and Light weight
3) Low self-discharge rate
4) Low internal resistance
5) Long cycle life, can be chargeable up to 3000 times
6) No memory effect
7) Environmental friendly.Doesn’t contain Mercury, No fire, No explosion, No leakage
Compared with cylindrical cells, prismatic lifepo4 cells have many advantages.
1. Easier composed ways.
2. More cycle lifes >3000 times.
3. Higher safety performance.
4. Deliver higher discharge current.
Battery Type | LiFePO4 | |
Nominal Capacity | 25Ah | |
Nominal Voltage | 3.2V | |
Internal Impedance | ≤3.5mΩ | |
Standard Charging Mode | CC/CV | |
Cell Weight | ≤350g | |
End of Charging Voltage | 3.65V | |
End of Discharging Voltage | 2V | |
Max Pulse Discharge Current | 50A | |
Max Continuous Discharge Current | 40A | |
Max Pulse Charge Current | 20A | |
Standard Charge Current | 3.3A | |
Cycle Life | ≥3000 cycles | |
Operating Temperature Range
| Charging Temperature | 0~55℃ |
Discharging Temperature | -20~55℃ | |
Storage Temperature | -10~45℃ | |
Appearance | Without break, scratch, distortion, contamination, leakage and so on | |
Application | backup power,energy storage,EV,mine locomotive,PHEV etc. |
Applications
This battery module is suitable for many new energy vehicles: high energy, long life, good consistency, etc.
Why Choose US
1. Provide OEM&ODM services with various designs.
2. Complete production lines, reliable quality, factory direct price.
3. 100% test before shipping, fast delivery with solid package.
4. Timely and professional pre-sales service and after-sales service.
FAQ
1. Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get
the product specifications such as voltage capacity application etc.
2. How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly
the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery
packs of large capacity.
3. What about the lead time for mass production?
It depends on your order quantity.Normally 2-5 days if we have sample in stock, 5-10 days for
newly produced samples.10-20 day for big order.
4. What shipping method can I choose? How about the shipping time?
By Express (3-7 working days), suitable for urgent time or small quantity.
By Sea (15-30 days), it suitable for mass production.
By Air (4-7 days), from airport to airport.
5. What is your term for payment?
We accept T/T,L/C,Paypal, Western Union,Money Gram,Ali Express,Cash,etc.
