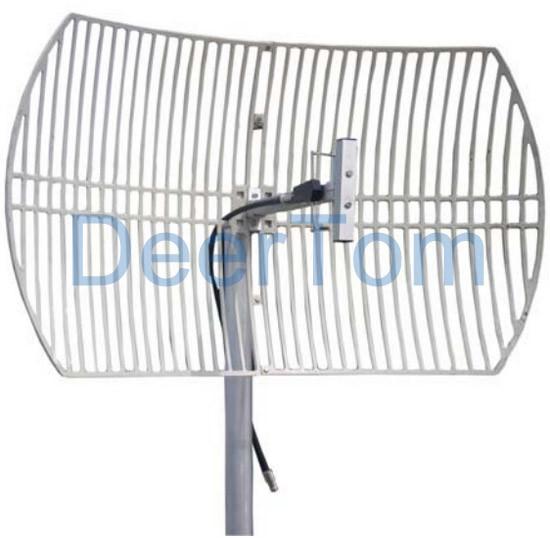

824-896MHz CDMA Grid Parabolic Antenna 15dBi High Gain Outdoor Point to Point Base Station Antenna Signal Coverage Anten
824-896MHz CDMA Grid Parabolic Antenna 15dBi High Gain Outdoor Point to Point Base Station Antenna Signal Coverage Anten
Specifications
Brand Name :
Deertom
Model Number :
DT-GPA824-896-15
Certification :
CE,ROHS,ETC
Place of Origin :
CHINA
MOQ :
50pcs
Price :
$10-$50 per piece
Payment Terms :
PAYPAL,TT,WESTERN UNION,ETC
Supply Ability :
5000PCS PER DAY
Delivery Time :
7
Packaging Details :
NEUTRAL
Frequency :
824-896MHz
Gain :
15dBi
Feature :
Point to Point
Description
ELECTRICAL
Model DT-GPA824-896-15
Frequency Range 824-896MHz
Gain 15dBi
Beamwidth H: 15° , E: 10°
VSWR ≤1.5
F/B Ratio ≥23dB
Polarization Vertical or Horizontal
Max Power 100W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female or customized
Antenna Dimension 600*900mm
Weight 5kg
Mounting Kits L Bracket & U Bolts
Working Temperature -40 ~ + 60℃
Pole Diameter Ф33～55mm
Rated Wind Velocity 60m/s
