Specifications
Brand Name :
Deertom
Model Number :
DT-GPA2500-2700-24
Certification :
CE/ROHS
Place of Origin :
SHENZHEN,CHINA
MOQ :
50
Price :
USD $ 50 per piece
Payment Terms :
T/T, Western Union,Paypal,etc
Supply Ability :
5000 pieces per week.
Delivery Time :
7 business days
Packaging Details :
OPP Bag + Neutral Box per Piece
Frequency :
2500-2700MHz
Gain :
24dBi
Name :
wimax grid parabolic antenna
Feature :
lte parabolic antena
Use :
parabolic antenna long range
Others :
wimax parabolic antenna
Other :
2500-2700mhz parabolic antenna
Description

Frequency: 2500-2700MHz

Gain: 24dBi

Name: Wimax Grid Parabolic Antenna

Feature: LTE Parabolic Antena

Use: parabolic antenna long range

Others: wimax parabolic antenna

Other: 2500-2700mhz parabolic antenna

The Grid Parabolic Antenna is an Outdoor External directional antenna, point to point.

Normally works for base station, routers, amplifiers/repeaters/boosters.Multi funcational. Even for Huawei Routers with SMA connectors and long cables.

Accessory compatubility :Couplers and splitters.

a). Wimax LTE Frequency Range, 2500-2700MHz

b). Designed for outdoor use only

c). It comes with U Bolts and other accessories.

d). Easy to install.

Product Data Sheet:

ELECTRICAL
Model DT-GPA2500-2700-24
Frequency Range 2500-2700MHz
Gain 24dBi

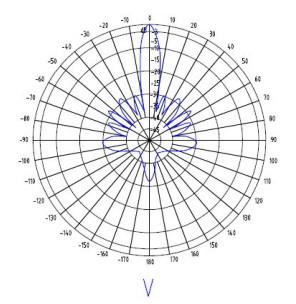

Beamwidth H: 9° , E: 13°
VSWR ≤1.5
F/B Ratio ≥30dB
Polarization Vertical
Max Power 50W
Nominal Impedance 50Ω
Lightning Protection DC Ground
MECHANICAL
Connector N Female or customized
Antenna Dimension 600*900mm
Weight 5kg
Mounting Kits L Bracket & U Bolts
Working Temperature -40 ~ + 60℃
Rated Wind Velocity 60m/s
