Heavy Duty Military HESCO Defensive Barriers SX - 10 / Galvanized Gabion Box
Heavy Duty Military HESCO Defensive Barriers SX - 10 / Galvanized Gabion Box
Heavy Duty Military HESCO Defensive Barriers SX - 10 / Galvanized Gabion Box
Heavy Duty Military HESCO Defensive Barriers SX - 10 / Galvanized Gabion Box
Heavy Duty Military HESCO Defensive Barriers SX - 10 / Galvanized Gabion Box
Heavy Duty Military HESCO Defensive Barriers SX - 10 / Galvanized Gabion Box
Specifications
Brand Name :
SHUXIN
Model Number :
SHUXIN-MIL 10
Certification :
CE, ISO, SGS, SASO, PVOC,COC, FM A, FM E, CO
Place of Origin :
CN
MOQ :
17 UNITS
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal, T/A
Supply Ability :
20 Units per week
Delivery Time :
15 working days
Packaging Details :
Pallet
Raw Material :
Low Carbon Steel Wire Q195
Geotextile :
300 g/㎡ Standard
Mesh Diameter :
5.0mm Diameter
Apeture :
3" (76.2mm×76.2mm)
T/S :
500 - 800 MPA
Accessories :
Staple, Joint Pin
Description

Shuxin Heavy Duty Galvanized SX10 Military Defensive HESCO Barriers For Army

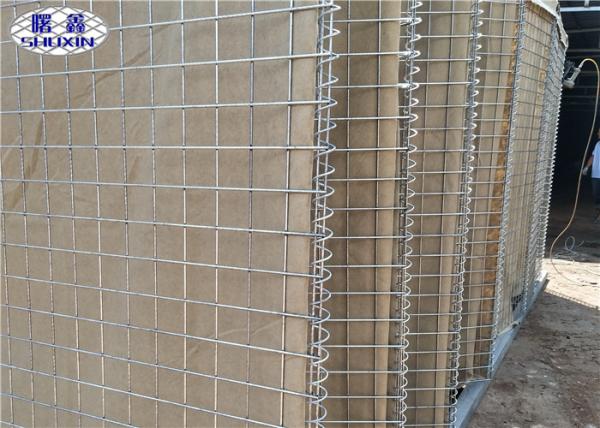

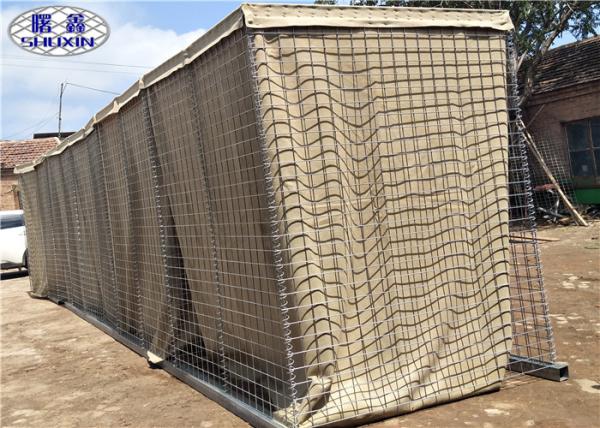

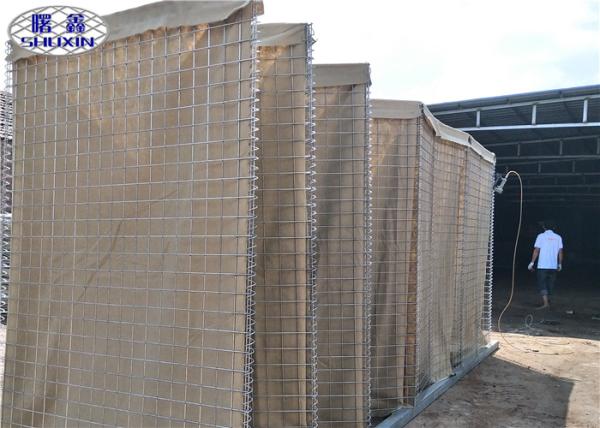

Military Defensive HESCO Barriers is a modern Gabion used for flood control and military fortification. Military Gabion Box is made of a collapsible welded wire mesh and geotextile.it used as a temporary to semi-permanent dike or barrier against blast or small-arms.

The Standard Technical Specifications from MIL 1 to MIL 19

Welded Gabion Box for HESCO Barriers
Model Height Width Length
SX-1 54"(1.37M) 42"(1.06M) 32'9"(10M)
SX-2 24"(0.61M) 24"(0.61M) 4'(1.22M)
SX-3 39"(1.00M) 39"(1.00M) 32'9"(10M)
SX-4 39"(1.00M) 60"(1.52M) 32'9"(10M)
SX-5 24"(0.61M) 24"(0.61M) 10'(3.05M)
SX-6 66"(1.68M_ 24"(0.61M) 10'(3.05M)
SX-7 87"(2.21M) 84"(2.13M) 91'(27.74M)
SX-8 54"(1.37M) 48"(1.22M) 32'9"(10M)
SX-9 39"(1.00M) 30"(0.76M) 30'(9.14M)
SX-10 87"(2.21M) 60"(1.52M) 100'(32.50M)
SX-11 48"(1.22M) 12"(0.30M) 4'(1.22M)
SX-12 84"(2.13M) 42"(1.06M) 108'(33M)
SX-19 108"(2.74M) 42"(1.06M) 10'5"(3.18M)

The Application for Welded Gabion Box for Defensive Bastion

Flood Control

1. Flood Prevention Barrier

From a simple perimeter wall to a complex base infrastructure, SHUXIN products provide rapid expeditionary protection

2. Permanent or Semi-permanent Dike

Gabion Box can as the Dike against the Flood permanently or Semi-Permanently.

3. Flood Control Retaining Wall

Wiht sand and earth in it, Welded Gabon BOx can as a retaining Wall to against the flood.

4. Protection Engineering of Seaside Area

Flood Control Barrier is more and more homemade at the seaside area as Protection Fence

5. Protecting Existing Structures

6. Coastal Erosion Control

The Advantages of Welded HESCO Defensive Barrier:

1. Lifetime

The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

2. Collapsible

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.

3. Strong Protection

Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.

Heavy Duty Military HESCO Defensive Barriers SX - 10 / Galvanized Gabion Box
