3.7mm Gabion Hesco Mil 7 Military Sand Wall For Coastal Erosion
3.7mm Gabion Hesco Mil 7 Military Sand Wall For Coastal Erosion
Specifications
Brand Name :
KN
Model Number :
mil 7
Certification :
CE SGS ISO 9001 COC
Place of Origin :
China
MOQ :
1pcs
Price :
USD1.33
Payment Terms :
T/T, Western Union, D/A, D/P, L/C, MoneyGram, , L/C
Supply Ability :
1000 pcs per day
Delivery Time :
3 days
Packaging Details :
wrapped with shrink film or packed in pallet
Mesh size :
3''*3''
advantage :
Collapsible ,Anti-Corrosion,Easy Installation
color :
White, Sand color, Military Green
Diameter of: :
4.00 mm,3.7mm
Description

Defensive Bastion Mesh Gabion Mil7 Safety Military Hesco Barrier Sand Wall

Military Hesco Barrier Application:

Perimeter Security and Defence Wall

Equipment Revetments

Personnel and Material Bunkers

Observation Points

Defensive Firing Positions

Guard Posts

Explosives and Contraband Search Areas

Highway Checkpoints

Border Crossing Checkpoints

Protecting Existing Structures

Flood control retaining wall

Coastal Erosion

Protection engineering of seaside area.

Material:

 Galvanized Iron Wire, Low-Carbon Iron Wire
Type: Welded Mesh
Hole Shape: Square
Wire Gauge: 4.0mm,5.0mm
Surface treatment: Galvanized
Certificate: CE , MIL Standard 810 Certificate

The Advantages for Barrier:
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times
5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.

The Quanlity certificate

our factory had been verified on site by world-leading inspection company SGS Group.

Our products are strictly follow ISO9001,SGS,CE certificate.

our product comply with BS EN 10244-2:2009 & BS EN 1208-2:2012

Defensive Barrier Wall specification:

Model Height Width Length Internal Cells

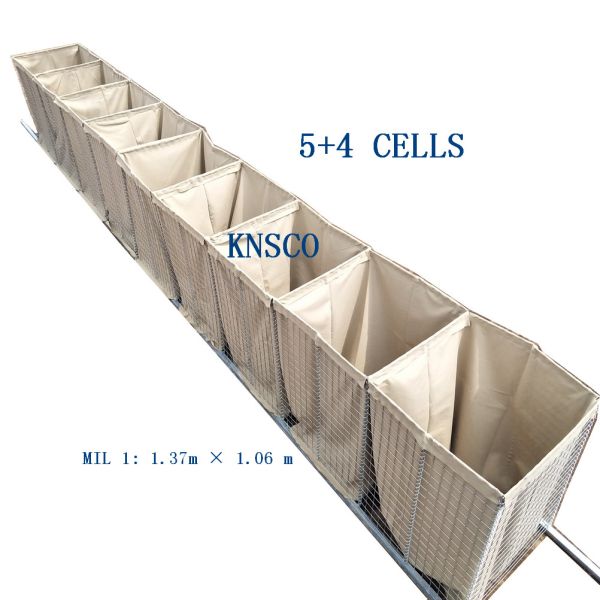

SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells

3.7mm Gabion Hesco Mil 7 Military Sand Wall For Coastal Erosion3.7mm Gabion Hesco Mil 7 Military Sand Wall For Coastal Erosion

1. Usually the HESCO Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.

2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin to connect(@HESCO Barrier Installation).

3. Full Fill the sand and earth in it and compaction

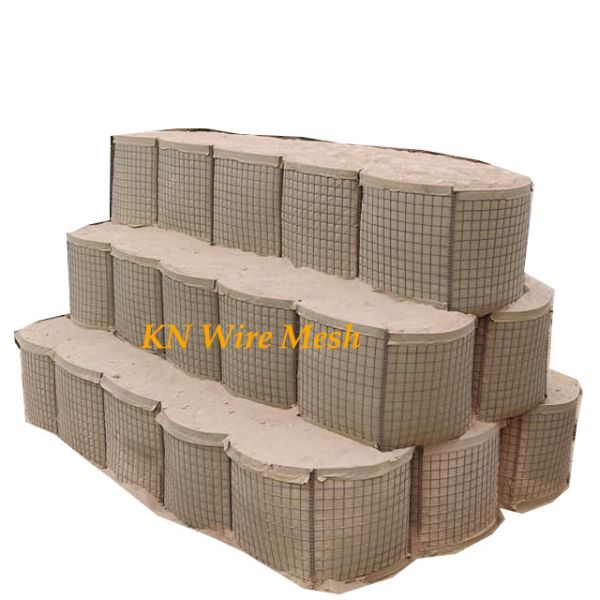

4. If you want more High and Wide of it, You can stack the HESCO Barrier on each other.

Defensive Mesh gabion box Application:

Perimeter Security and Defence Wall

Equipment Revetments

Personnel and Material Bunkers

Observation Points

Defensive Firing Positions

Guard Posts

Explosives and Contraband Search Areas

Highway Checkpoints

Border Crossing Checkpoints

Protecting Existing Structures

Flood control retaining wall

Coastal Erosion

Protection engineering of seaside area.

3.7mm Gabion Hesco Mil 7 Military Sand Wall For Coastal Erosion3.7mm Gabion Hesco Mil 7 Military Sand Wall For Coastal Erosion
