Mil 1 7 10 Galvanized Welded Bastion Barrier For Military
Mil 1 7 10 Galvanized Welded Bastion Barrier For Military
Mil 1 7 10 Galvanized Welded Bastion Barrier For Military
Mil 1 7 10 Galvanized Welded Bastion Barrier For Military
Specifications
Brand Name :
SHUXIN
Model Number :
MIL1
Certification :
CE ISO SGS COC PVOC
Place of Origin :
CHINA
MOQ :
1
Price :
USD13.5
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
1000 sets per week
Delivery Time :
1-5 work days
Packaging Details :
Wrapped with Shrink Film or Packed in Pallet
Wire Tensile :
500-800MPa
Geotextile :
Heavy Duty Non-Woven Polypropylene, Color Can Be W
Specification :
CE, BV, SGS
HS Code :
73144100
Packaging :
Wrapped with Shrink Film or Packed in Pallet
Wire Thickness :
3.5mm-5.0mm
Spring Wire Diameter :
3mm-5.0mm
Name 1 :
Hesco bastion
Name 2 :
Hesco defense wall
Name 3 :
sand cage
Name 4 :
welded gabion box
Description

Mil 1 7 10 Galvanized Hesco Barrier Welded Defensive Barriers for Military

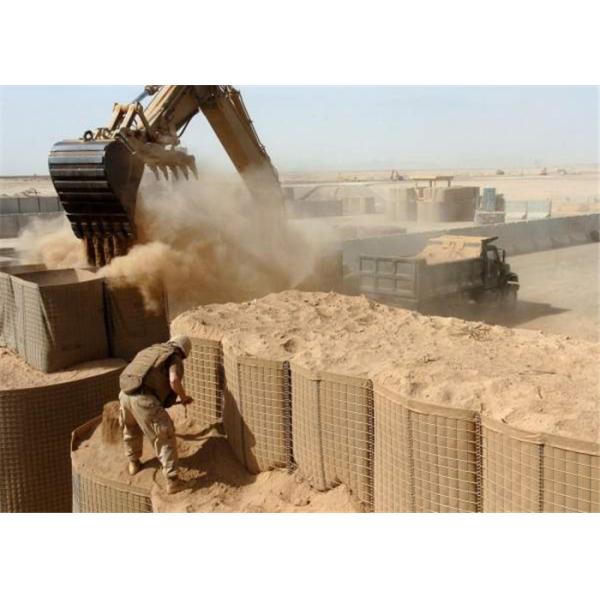

Hesco barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.It is a prefabricated,multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended,it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely used for military fortification and flood control.

Mil 1 7 10 Galvanized Welded Bastion Barrier For Military

Product Item standards
Height
Width
Length
Cells
SHUXIN MIL1
54''(1.37m)
42''(1.06m)
32'9''(10m)
1*4+1*5 cells
SHUXIN MIL2
24''(0.61m)
24''(0.61m)
4'(1.22m)
2 cells
SHUXIN MIL3
39''(1.00m)
39''(1.00m)
32'9''(10m)
2*5 cells
SHUXIN MIL4
39''(1.00m)
60''(1.52m)
32'9''(10m)
2*5 cells
SHUXIN MIL5
24''(0.61m)
24''(0.61m)
10'(3.05m)
5 cells
SHUXIN MIL6
66''(1.68m)
24''(0.61m)
10'(3.05m)
5 cells
SHUXIN MIL7
87''(2.21m)
84''(2.13m)
91'(27.74m)
2*4+1*5 cells
SHUXIN MIL8
54''(1.37m)
48''(1.22m)
32'9''(9.14m)
1*4+1*5 cells
SHUXIN MIL9
39'(1.00m)
30''(0.76m)
30'(9.14m)
2*6 cells
SHUXIN MIL10
87''(2.21m)
60''(1.52m)
100'(30.5m)
4*5 cells
SHUXIN MIL11
48''(1.22m)
12''(0.3m)
4'(1.22m)
4 cells
SHUXIN MIL12
84''(2.13m)
42''(1.06m)
108'(33m)
6*5 cells
SHUXIN MIL19
108''(2.74m)
42''(1.06m)
10'5''(3.18m)
3 cells

Mil 1 7 10 Galvanized Welded Bastion Barrier For Military

Specification:

Material: Galvanized Iron Wire
Application: Gabion Mesh, Gabions, Construction Wire Mesh
Hole Shape: Square
Usage: Civil, Military
Technics: Welded
Surface Treatment: Galvanized, Galfan Coated

Material: Galvanized steel wire or Galfan/

zinc-5%aluminum wire

Service Life: 15-20 years

Price:19.8$-99.8$/set

Wire diameter: 3.0mm- 6.0mm

Aperture:50*50mm 75*75mm

76.2*76.2mm 80*80mm 100*100mm etc

Color of geotextile:Grey and Military

Green,Sand color etc

Gram Weight of geotextile:200g/m2

or 300g/m2

Finish:hot dipped galvanized,Galfan wire.

Welded method:welded after galvanized

or galvanized after welded

Packing:Wrapped with shrink film then

packed in wood pallet or iron pallet

Mil 1 7 10 Galvanized Welded Bastion Barrier For MilitaryMil 1 7 10 Galvanized Welded Bastion Barrier For MilitaryMil 1 7 10 Galvanized Welded Bastion Barrier For Military

Application:

1.Perimeter security and defence walls

2.Equipment revetments
3.Ammunition compounds
4.Personnel and material bunkers
5.Obsercation points
6.Defensive firing positions
7.Entry control points
8.Guard posts
9.Explosives and contraband search areas
10.Highway checkpoints
11.Border crossing checkpoints
12.Protecting existing structures
13.Highway traffic management
14.Hostile Vehide Mltigation
Mil 1 7 10 Galvanized Welded Bastion Barrier For MilitaryMil 1 7 10 Galvanized Welded Bastion Barrier For Military
Certification:
CE certification, BV Certification, SGS Certification
Mil 1 7 10 Galvanized Welded Bastion Barrier For Military
We can provide inspection and certification before shipment,
quality assurance
The strength factory has its own equipment for 10 years
Payment method, convenient, simple and safe

Export term:FOB Tianjin port

CIF Port
