200 X 50 X 50 Welded Limestone Gabion Retaining Wall Common In 50cm High
200 X 50 X 50 Welded Limestone Gabion Retaining Wall Common In 50cm High
200 X 50 X 50 Welded Limestone Gabion Retaining Wall Common In 50cm High
200 X 50 X 50 Welded Limestone Gabion Retaining Wall Common In 50cm High
200 X 50 X 50 Welded Limestone Gabion Retaining Wall Common In 50cm High
200 X 50 X 50 Welded Limestone Gabion Retaining Wall Common In 50cm High
Specifications
Brand Name :
SHUXIN
Model Number :
SX-GC1110
Certification :
ISO, CE, SGS, PVOC and so on
Place of Origin :
HB
MOQ :
10 PCS
Price :
Negotiated
Payment Terms :
L/C, , T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 PCS Per Week
Delivery Time :
15 business days after getting payment
Packaging Details :
Usually packed by Pallet
Technical :
Welding and assembling
Surface Treatment :
Hot Dipped Galvanized, Galfan Coated
Usage :
Landscape Sight, Government project
Sample :
Available, Free
Aperture :
50*50mm, 50*100mm
Application :
Garden Gabion Retaining Wall, Shore Protection
Material :
HDP Galvanized Wire
Outer Size :
Common in 50cm high, also can cusotmized
Description

Hot Dipped Galvanized 200 x 50 x 50 Welded Limestone Gabion Retaining Wall

Specification of Welded Gabions:

Mesh Wire Diameter 3mm,4mm,5mm,6mm etc
Spring wire Diameter 3mm,4mm,5mm,6mm etc
Mesh size 50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or as your request.
Panel Size

50*200cm, 50*50cm,100*100cm, and so on.
Finish Electro galvanized after welded

Hot dipped galvanized welded

Galfan coated after welded
Packing Wrapped with shrink film or packed in pallet

Component of Welded Gabion Box Stone Cage:

Component Part Lid Mesh Panel, Bottom Mesh Panel, Side Mesh Panel
Welded Mesh Panel Welded by Low Carbon Steel Wire, with 50 *50mm or 50*100mm mehs hole
Spring Wire Make HDP Galvanized wire into Continuous Circle to connectting the panels
Wire Brace HDP Wire with two hooks, connected the side mesh panel

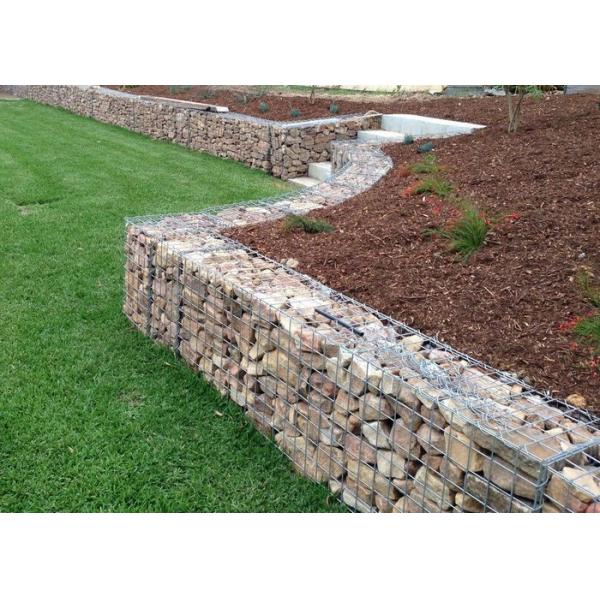

100x50x30 Limestone Gabion Retaining Wall:

Limestone Gabion Retaining Wall, is a kind of Gabion basket, can consist protection wall,used in garden, city road, and park and so on.Welded Gabion box also can used for flood control in smooth land. No matter Landscape Gabion basket or protection gabion retaining wall, both of them are often appeared in large project program. Small part of landscape used for homemade, and fit for express shipping.

Welded Gabion stone cage is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.

Welded Cage Gabions is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Gabion Basket is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.

Gabion Wall box Applications


control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures,dams and culverts; coastal embankment works; architectural feature retaining walls.

Features of Welded Gabion Box:

1. Easy to Install

2. Anti- Rust and Anti-Corrosive

3. Low - Cost

4. High Security

5. Beautiful Appearance

Advantages of Gabion Stone Wall:

1. Selected High Quality Low Carbon Steel Wire, Excellent Corrosion resistant performance and strong ability to withstand Natural Damage and resist adverse weather effects.

2. Complted by Automated, precision mechanical equipment, strictly Follow BS 1052:1986 Standard.

3. Directly Factory Price.

200 X 50 X 50 Welded Limestone Gabion Retaining Wall Common In 50cm High
