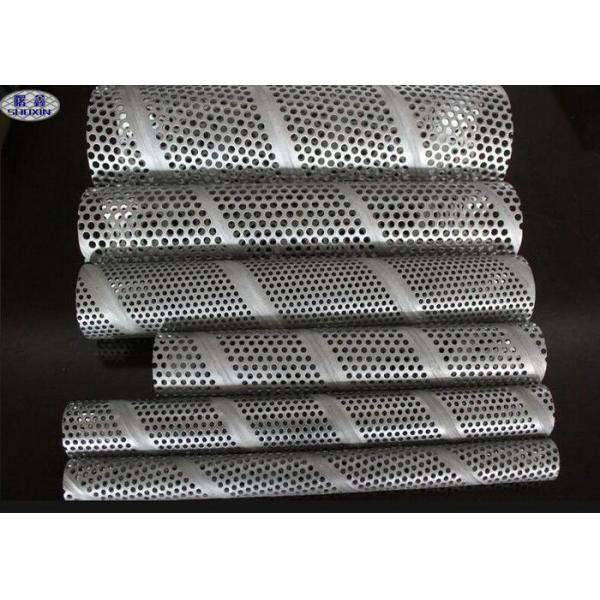

Spiral Seam Stainless Steel Filter Tube Welded For Industrial Filtration / Separation
Spiral Seam Stainless Steel Filter Tube Welded For Industrial Filtration / Separation
Spiral Seam Stainless Steel Filter Tube Welded For Industrial Filtration / Separation
Spiral Seam Stainless Steel Filter Tube Welded For Industrial Filtration / Separation
Specifications
Brand Name :
SHUXIN
Model Number :
SX-5
Certification :
COC ISO
Place of Origin :
CHINA
MOQ :
100 piece
Price :
pls contact us
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 piece per day
Delivery Time :
8-15 work days
Packaging Details :
carton
Usage :
Liquid Filter
Hole :
Round Customized
Thickness :
0.0748 inch
Filter precision :
90 %
Furure :
resistance to bending and crimping
Technique :
spiral seam welded
Specification :
customer require
Description

Spiral Seam Welded Perforated Tubes For Industrial Filtration And Separation

Different from other wire mesh filter, perforated filter tube is made of perforated metal mesh with a wide range of perforated patterns and open area percent. It can be made from a variety of materials including stainless steel wire mesh, hastelloy and mild steel. We manufacture the perforated tubes in various hole shapes, for instance round hole, square hole, rectangular hole and hexagonal hole. Because of its perforated structure, this type of filter can offer superior resistance to bending and crimping. So it is the ideal choice to be used where need rigidity and durability.

You can choose the suitable hole shape according to the type of impurities. Varying materials, hole sizes and perforation patterns are available.

name Stainless steel perforated filter tube
material stainless steel , iron, galvanized , aluminum,pvc coated,etc
Hole shape Round, Rectangular,Square, Triangle, Diamond, Hexagonal,etc
Hole size 0.6-20mm,ect
Thickness usually 1mm,1.2mm,1.5mm,2.0mm etc
Length 300mm,500mm customized
Width 30mm,35mm,50mm,60mm,customized
Openging rate 45%,60%,85% etc
SurfaceTreatment Electric galvanized, Hot dipped galvanized, oxidation treatment etc
Usage screening,decoration, sifting, filtration, drying, cooling, cleaning
Delivery Detail 7-15 days after receiving the 30% deposit or as required

Features :

  • Hard wearing, and easy to wash for reuse.
  • High dirt holding capacity.
  • Flat and smooth surface.
  • Durable and good strength.
  • Anti-acid, anti-alkali and anti-corrosion.
  • High reliable standard specifications.

Specification :

  • Thickness: 0.5 mm to 10 mm.
  • Diameter: 6 - 169 mm.
  • Material: stainless steel mesh, hastelloy, mild steel.
  • Hole type: round hole, elliptical hole, square hole, rectangular hole, hexagonal hole.
  • Filter precision: 2 - 2000 µm.
  • Packing: pallet or wooden boxes.
ROUND HOLES STAGGERED PATTERN
HOLE CENTERS

GAUGE / PLATE

THICK.

 OPEN AREA
.020" RD .045" Stag 26 18%
1/32" RD 1/16" Stag 22 23%
3/64" RD 5/64" Stag 24 33%
3/64" RD 3/32" Stag 22 thru 18 23%
1/16" RD 3/32" Stag 22 thru 16 40%
1/16" RD 7/64" Stag 20 thru 16 30%
1/16" RD 1/8" Stag 26 thru 16 23%
5/64" RD 1/8" Stag 22 thru 14 35%
3/32" RD 5/32" Stag 24 thru 14 33%
3/32" RD 3/16" Stag 24 23%
.117 RD 5/32" Stag 18 51%
1/8" RD 3/16" Stag 24 thru 11 40%
1/8" RD 7/32" Stag 14 thru 12 30%
1/8" RD 1/4" Stag 14, 13 23%
9/64" RD 3/16" Stag 18 51%
5/32" RD 3/16" Stag 22 thru 16 63%
5/32" RD 1/4" Stag 20 thru 10 35%
3/16" RD 7/32" Stag 22 thru 16 67%
3/16" RD 1/4" Stag 24 thru 12 51%
3/16" RD 5/16" Stag 10, 3/16" 33%
3/16" RD 3/8" Stag 14 thru 10 23%
1/4" RD 5/16" Stag 20 thru 16 58%
1/4" RD 3/8" Stag 26 thru 1/4" 40%
17/64" RD 5/16" Stag 20 66%
5/16" 7/16" Stag 20 thru 1/4" 46%
3/8" RD 9/16" Stag 20 thru 1/4" 40%
1/2" RD 11/16" Stag 20 thru 1/4" 48%
1/2" RD 3/4" Stag 16 40%
5/8" RD 7/8" Stag 10 thru 1/4" 46%
3/4" RD 1" Stag 16 thru 1/4" 51%
1" RD 1-3/8" Stag 10 thru 1/4" 48%
1-1/4" RD 1-5/8" Stag 1/4" 54%
1-1/2" RD 2" Stag 1/4" 51%
2" RD 2-1/2" Stag 1/4" 58%
2-1/2" RD 3" Stag 3/16" 63%
3" RD 3-1/2" Stag 3/16" 67%
4" RD 4-1/2" Stag 10 72%
