Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
Specifications
Brand Name :
KN
Model Number :
KN-D03
Certification :
ISO CE
Place of Origin :
Hengshui,China
MOQ :
10 pcs
Price :
USD 6.99-8.99/ pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pcs per week
Delivery Time :
7-15 days
Packaging Details :
Plastic bags+wooden pallet
Product name :
Defensive Barrier
Surface :
Hot Dip Galvanized 200g/m2
Meterial :
Q195, Carbon steel wire
Keyword :
defensive barrier
Usage :
Retaining wall
Advantage :
20 Years Experience
Surface treatment :
Hot dipped galvanized, or Galfan coated
Geotextile Color :
Beige, Green.white
Geotextile weight :
200g-400g
Wire diameter :
3.0-6.0mm
Description

Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall

Product description

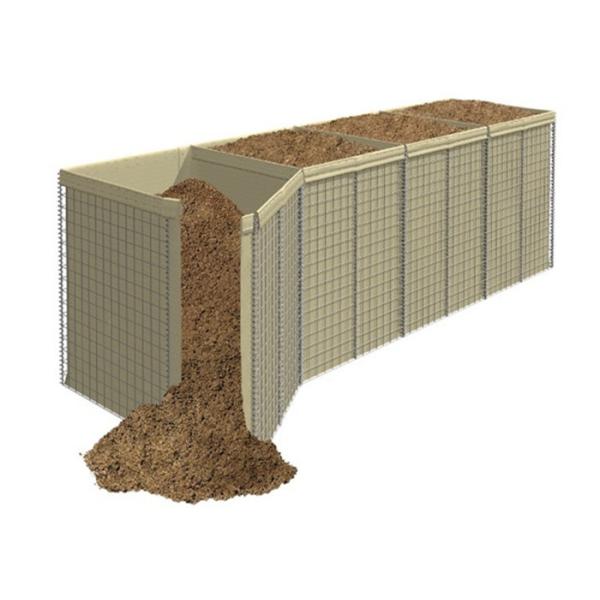

Defensive barrier is a prefabricated,multi-cellular system, made of zinc coated steel welded mesh and lined waith non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,like a defence wall or bunker,it is widely used for fortification and flood control.

Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall

Technical Specification for Barrier Panel
Steel wire
0.1% carbon max steel
Wire thickness
3.5mm-5.0mm
Wire tensile
500-800Mpa
Welding tensile
50-100% of wire tensile strength
Mesh size
76.2*76.2mm,100*100mm
Surface treatment
Zinc coating or Zinc-AI coating 40-600g/sqm
Technical Specification for Geotextile Fabric
Color
Beige sand,Olive green,Grey
Mass(g/sqm)
250,300,350
Tensile strength
16KN
Tear strength
0.42KN
CBR puncture
3.0KN
UV strength retention ASTM D4355
50% at 500 hours(5years use life in common environment)
70% at 500 hours(10 years use life in common environment)

Product Package

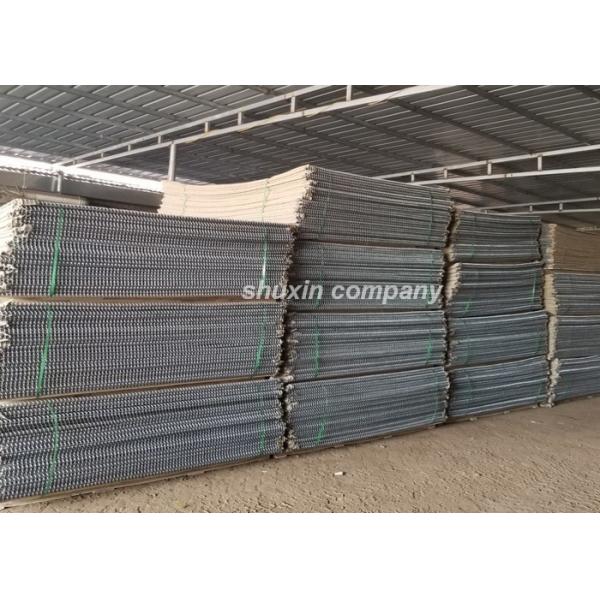

Defensive barrier packing on pallet then wrapped with plastic film outside .
Customers' request are also available!

Explosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence WallExplosion Proof Gabion Mesh Box Floating Perimeter Defensive Barrier Defence Wall
