Specifications
Brand Name :
SHUXIN
Model Number :
SX-HESCO
Certification :
CE ISO SGS COC PVOC
Place of Origin :
Hebei,China
MOQ :
100 UNITS
Price :
Negotiated
Payment Terms :
T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability :
200 Units per week
Delivery Time :
15-20 working days
Packaging Details :
wooden pallet
Product name :
Anti-blast Wall Protection Defense Barrier Durable Welded Sand Bag Gabion Wall
Hole Shape :
Hole Shape
Wire Gauge :
4.0 mm, 5.0 mm
Processing Service :
Bending, Welding, Cutting, Defensive barriers
Hole size :
3"*3" , 76.2 x 76.2 mm
Wire diameter :
4.0 mm, 5.0 mm
Surface treatment :
Hot dipped galvanized
Key word :
Anti-blast Wall Protection Defense Barrier
Description

Anti-blast Wall Protection Defense Barrier Durable Welded Sand Bag Gabion Wall

Product Description

Defensive Barrier is a structure, system or measure used for defending, protecting or blocking certain threats, attacks or adverse effects. It is made of Collapsible Welded Gabion Mesh and UV Protection Heavy Geotextile, The common surface treatment is Hot Dipped Galvanized before welding, HDP Galvanized after welding, and Galfan Coated. Both of them have a long using life. It has seen considerable use in Iraq, Afghanistan and Africa.

Application:

Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy, and robust solution foremergency flood protection or long-term wetland restoration.

Defensive Barriers: Protecting both and civilian personnel in dangerous environments demandsdefensive solutions that are secure, reliable, and readily available.

Protective Barriers: Protect your workforce, Create a secure refuge for your employees byprotecting up to eight people with Accommodation Bunker.

Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal forcustomer-facing perimeter security where a more benign appearance is required.

Defensive Barrier Wall that has the ability to resist explosion shock waves and can limit thedestructive effects of explosions within a certain range.

Compared with the concrete explosion-proof wall, it has the advantages of light weight, easyloading and unloading,recyclable and reusable.

Product Installation

All KN products are pre-as-sembledand delivered palletised with joining pins,to enable the connection of individual units,which can then be filled with availablematerial using minimal manpower andcommonly available equipment.

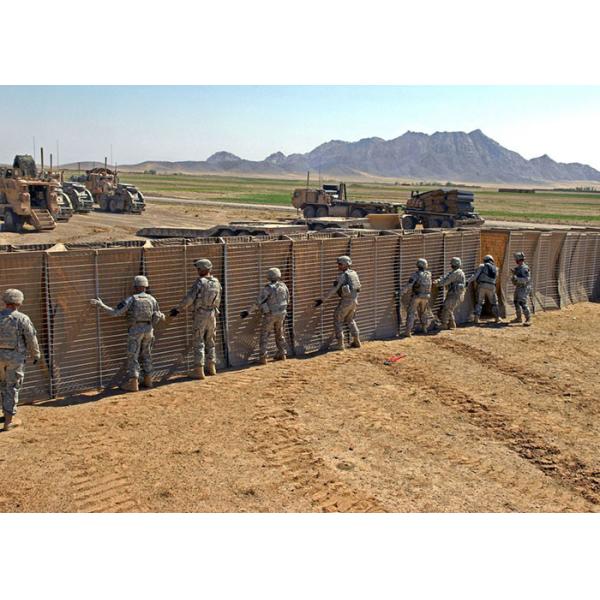

Assembling the bastion entails unfolding it andfilling it with sand, soil or gravel, usually usinga front end loader.The placement of the barrieris generally very similar to the placement of asandbag barrier or earth berm except that roommust generally be allowed for the equipmentused to fill the barrier.

Packing&Shipping

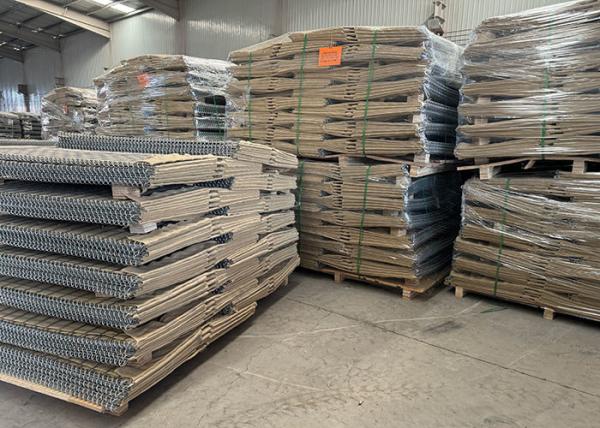

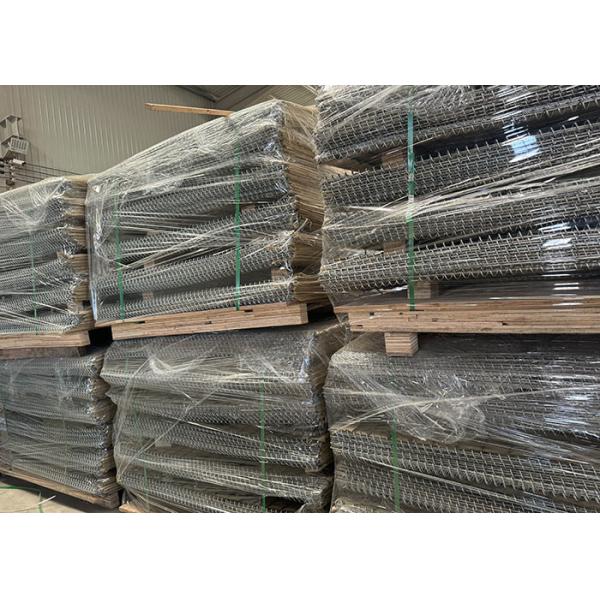

Defensive barrier packing on pallet then wrapped with plastic film outside .
Besides, customers' request are also available.

Company Profile
Hebei KN Wire Mesh Co,Ltd, was established in 2013 is a professional manufacturer engagedin the research, development, production, saleand service. We arelocated in Anping county hengshui city with convenient transportation access. Dedicated tostrict quality control and thoughtful customer service, our experienced staff members arealways available to discuss your requirements and ensure full customer satisfaction. Our products are also exported to clients in suchcountries and regions as Britain France,Germany, USA, UK Kenya, Zambia,Philippines,Thailand,Korea, New Guinea,Greece, Mexico.We also welcome OEM and ODM orders. Our company always insist on the quality strives for the survival, to the credibility of development the objective, wholeheartedly for the domestic and foreign customers, with quality products andfirst- class service and foreign customers, with quality products and first-class service.
Specification
MODEL HEIGHT WIDTH LENGTH WEIGHT CELLS No.s
KN-1 Unit 4'6''(1.37mm) 3'6''(1.06m) 32'9”(10m) 149(kg) 9 1x4+1x5cells
KN-2 Unit 2'(0.61m) 2'(0.61m) 4'(1.22m) 10(kg) 2 1x2cells
KN-3 Unit 3'3”(1.00m) 3'3”(1.00m) 32'9”(10m) 113(kg) 10 2x5cells
KN-4 Unit 3'3”(1.00m) 5'(1.52m) 32'9”(10m) 155(kg) 10 2x5cells
KN-5 Unit 2'(0.61m) 2'(0.61m) 10'(3.05m) 22(kg) 5 1x5cells
KN-6 Unit 5'6”(1.68m) 2'(0.61m) 10'(3.05m) 66(kg) 5 1x5cells
KN-7 Unit 7'3”(2.21m) 7'(2.13m) 91'(27.74m) 936(kg) 13 2x4+1x5cells
KN-8 Unit 4'6”(1.37m) 4'(1.22m) 32'9”(10m) 153(kg) 9 1x4cels+1x5cels
KN-9 Unit 3'3”(1.00m) 2'6”(0.76m) 30'(9.14m) 101(kg) 12 2x6cells
KN-10 Unit 7'3”(2.21m) 5'(1.52m) 100'(30.50m) 1040(kg) 20 4x5cells
KN-11 Unit 4'(1.22m) 12”(0.30m) 4'(1.22m) 16(kg) 2 1x2cells
KN-12 Unit 7'(2.13m) 3'6”(1.06m) 108'(33m) 813(kg) 30 6x5cells
KN-19 Unit 9'(2.74m) 3'6”(1.06m) 10'5”(3.175m) 198(kg) 6 1x6cells
All dimensions and weight are nominal
Diagrams and products are for iustrative purpose onlv.
