Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Automatic Stainless Steel Double Screw Extruder Cost Effective
Specifications
Brand Name :
DEGA
Model Number :
ECO Cost-effective Series
Certification :
CE, IOS 9001: 2015
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 Sets per Month
Delivery Time :
45 work days
Packaging Details :
Standard Export Packaging
Product Name :
Twin Screw Extruder
Screw Design :
Twin Screw
Motor Reduce Power :
30-2400KW
Assembly Structure :
Integral Type Extruder
Machine Material :
Stainless Steel
Automatic Grade :
Automatic
Warranty :
1 year
Machinery Test :
Provided
Installation And Commissioning :
Installation Oversea Provided; Online Technical Support
Description

Product Introduction:

ECO series models, specific torque 9N.m/cm3, economical models.

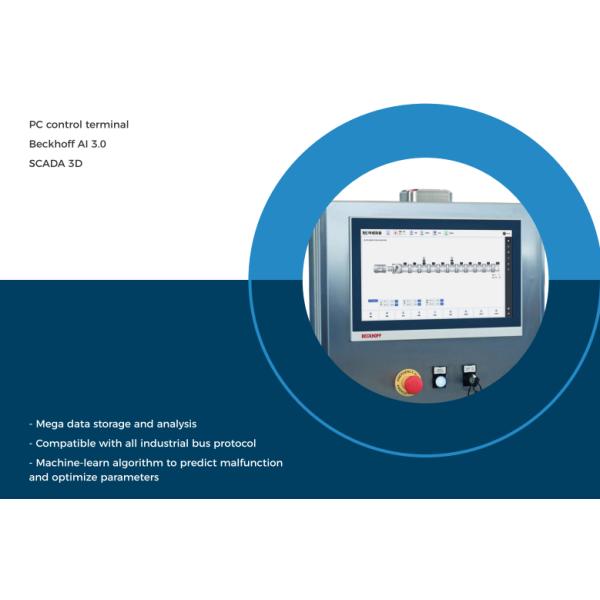

Intelligent Control System:

Automatic Stainless Steel Double Screw Extruder Cost Effective

Wear and Corrosion Resistant Solutions:

We offer wide range of MoC for barrels, screw elements and shafts. With out exclusively developed extremely wear and corrosion resistant material, the service life of barrels could be extended several times compared to HIP material for compounding polymers with glass and carbon fibers, ceramic and metal masses, and inorganic fillers.

Automatic Stainless Steel Double Screw Extruder Cost Effective

Automatic Stainless Steel Double Screw Extruder Cost Effective

Automatic Stainless Steel Double Screw Extruder Cost Effective

Specifications:

Model

Ratio

[Do/Di]

Specific Torque

[Nm/cm³]

Max. Speed

[rpm]

Max. Torque

[Nm]

Max. Motor Power

[KW]
ECO35 1.51 9 900 2x238 45
ECO50 1.55 9 900 2x584 110
ECO65 1.55 9 900 2x1167 220
ECO75 1.51 9 900 2x1883 355
ECO96 1.55 9 600 2x3979 500
ECO50/150(T+S) / / 600(T)/70(S) / 90(T)/45(S)
ECO65/180(T+S) / / 600(T)/70(S) / 160(T)/55(S)
ECO75/200(T+S) / / 600(T)/70(S) / 250(T)/75(S)
ECO96/250(T+S) / / 600(T)/70(S) / 500(T)/110(S)

Application Field:

Suitable for various modified material applications.

Automatic Stainless Steel Double Screw Extruder Cost Effective

Automatic Stainless Steel Double Screw Extruder Cost Effective

Automatic Stainless Steel Double Screw Extruder Cost Effective

Extruder Service:

More than just machine maintenance, we offer full cooperation.

Automatic Stainless Steel Double Screw Extruder Cost Effective
