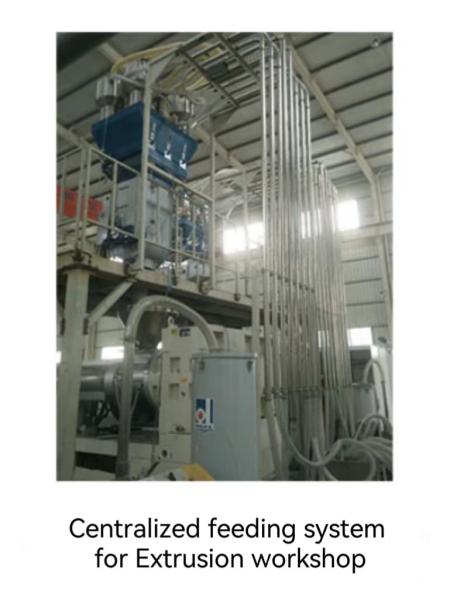

Centralized Feeding System: Plant for machines with central filter and plant for materials

Ready

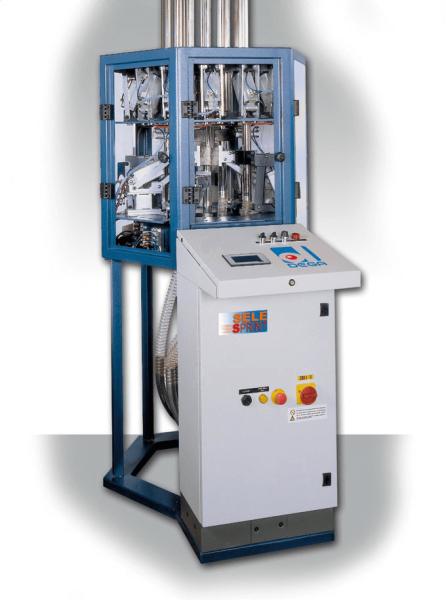

The main feature of our READY system is: The master control working as a sequencer is exactly the same one as the slave board and can be replaced by any slave control that, mounted in the position of the master board, automatically acquires its functions, without requiring programming. The system is expandable up to 128 connections.

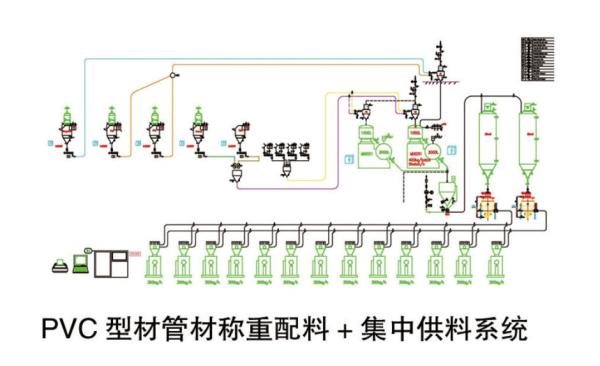

The READY system components are designed to achieve any type of installation and are suitable for transport of most of the granules, thanks to the many accessories, the different types of pumps and receivers it is possible to assemble all plants: "material lines" or "machine lines". The installation of the piping is of vital importance for the smooth functioning; our teams are equipped to manufacture and assemble any type of plant.

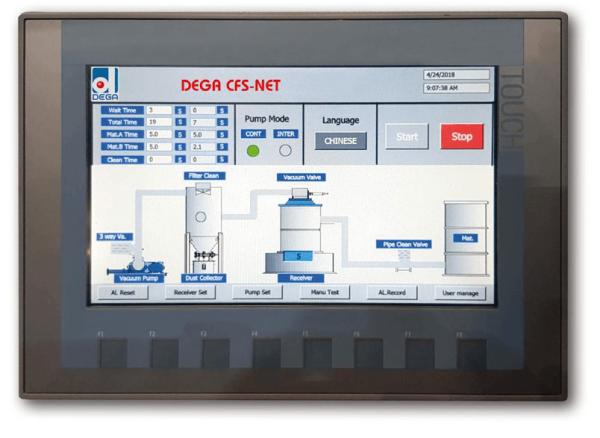

With the PCL management, the management of the transport systems integrates with the management software and interfaces with all the factory departments, from the production department to the purchase planning and the warehouse organization. From the comfortable TOUCH SCREEN interface, the production manager can program not only the parameters of the system workings, but also:

• If prearranged; the exact interconnection between the material storage silos and the receiver placed on the processing machine.
• When the silos or the receivers are placed on loading cells, it can manage the availability of the materials in the warehouse.
• It controls the power of the suction pumps reducing the speed according to the quantity, the quality and the distance of the material to be transported, in order to minimize the energy consumption and most of all the wear of the pipeline.

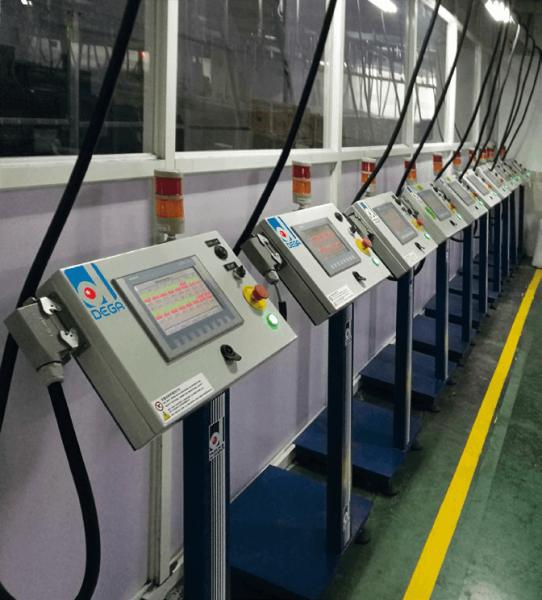

• The PLC shows the state of each receiver on the remote screen, giving a signal for each alarm or anomaly of the system.
• Through the wi-fi connection it is possible to show and program the state of the system with the mobile devices.

VACCUM PUMP SELECTION CHART UNIT: kg/h

NOTE: DATA ABOVE WAS TEST UNDER STANDARD CONDITION. USE ONLY FOR REFERENCE. NOT FOR ACCEPTANCE CRITERIA.

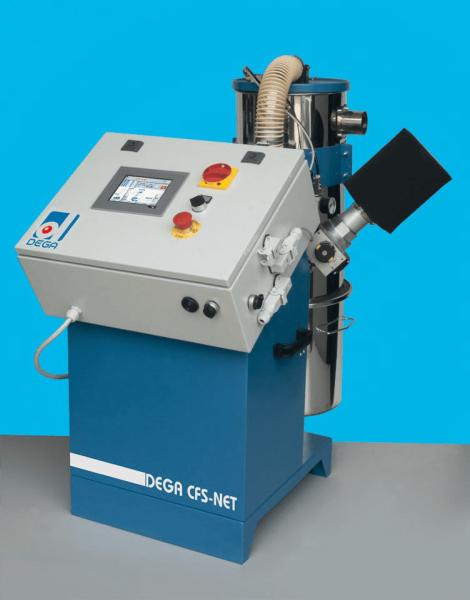

The main feature of our CFS system is:

• Single PLC can handle 128 materials receivers.
• Integrated controller can manage 5 sets of vacuum pump.
• Powder materials also can be handled by the customized powder material receiver.

Optional:

• Materials receiver with load cell can calculate the weight of single batch and total consumption.
• Wireless control can work in this system to fulfill the wireless control and monitor function.
