Granules Big Bag Unloading Station 200Ltr Big Bag Discharge Station With Electric Hoist
Granules Big Bag Unloading Station 200Ltr Big Bag Discharge Station With Electric Hoist
Granules Big Bag Unloading Station 200Ltr Big Bag Discharge Station With Electric Hoist
Granules Big Bag Unloading Station 200Ltr Big Bag Discharge Station With Electric Hoist
Granules Big Bag Unloading Station 200Ltr Big Bag Discharge Station With Electric Hoist
Granules Big Bag Unloading Station 200Ltr Big Bag Discharge Station With Electric Hoist
Specifications
Brand Name :
DEGA
Certification :
CE, IOS 9001: 2015
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets per Month
Delivery Time :
30 work days
Packaging Details :
Standard export wooden package
Product Name :
Electronic big bag support for granules
Frame Material :
304 Stainless Steel
Air Consumption :
6m³/hr
Dimension :
1450mmx2600mmx4860mm
Electric Hoist Power :
3KW
Dust Remove Blower Power :
1.5KW (Standard)
Product Type :
Automatic
Customize Service :
All Part Can Be Customized
Description

Electronic Big Big Support for Granules / Big Bag Unloading Station / Big Bag Station with Electric Hoist

Product Introduction:

Electronic big bag unloading station uses an electric hoist to lift the big bag to the feed port, press the bag, open the big bag unloading port, and use a flapping device or a vibration device to make the material fall into the hopper below.

The electronic big bag unloading station consists of a bag clamping mechanism, an electric hoist, a ton bag hanger, an automatic cylinder flapping device or a vibration device, a vacuum cleaner, an equipment bracket, etc. The whole set of structural design is reasonable, easy to operate, and the closed bag opening improves the working environment. The unloading is complete and there is less residual material.

The unloading port of the unpacking machine can be linked with various equipment such as the material bin, screw conveyor, rotary unloading valve, crusher, electromagnetic iron remover, vacuum feeder, and other devices.

Applicable materials:

Big bag packaging materials with poor fluidity, easy to absorb moisture, agglomerate materials, such as plastic resins and food additive's dry powder and granular materials.

Application field:

The big bag unpacking machine is widely used in food, chemical, pharmaceutical, plastic, lithium battery, new materials and other industries to unpack and unload powder and granular materials packed in big bags.

Struction specifications of Electronic big bag support for powder:

  • With electric hoist
  • Modular frame
  • Deliverable for local easy assembly
  • Paddle type material level alarm
  • Storage hopper volume 200L
  • Available for big-bag of granules and flakes

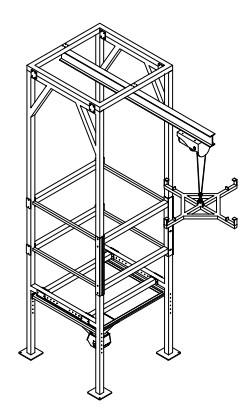

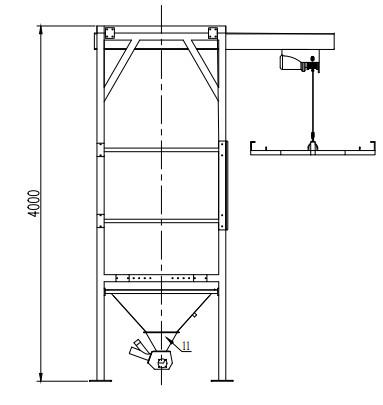

Outline Drawing
