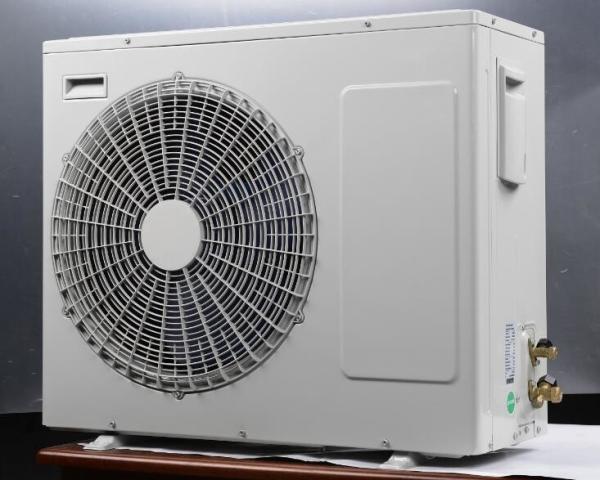

Dekon China VRF AIR CONDITIONER mini type Out door units 10kw 220V DC inverter technology under T3 conditions
Dekon China VRF AIR CONDITIONER mini type Out door units 10kw 220V DC inverter technology under T3 conditions
Dekon China VRF AIR CONDITIONER mini type Out door units 10kw 220V DC inverter technology under T3 conditions
Dekon China VRF AIR CONDITIONER mini type Out door units 10kw 220V DC inverter technology under T3 conditions
Specifications
Brand Name :
DEKON or OEM
Model Number :
DRV-H100S
Certification :
CE, ISO,AHRI
Place of Origin :
made in china
Price :
TBC
Payment Terms :
TT
Supply Ability :
200PCS PER MONTH
Delivery Time :
30days after payment
Packaging Details :
Standare Export packing
MOQ :
TBC
Use :
Room
Power Source :
Electrical
Type :
Central Air Conditioners
Cooling/Heating :
Cooling/Heating
Description

DEKON China Professional VRF AIR CONDITIONER factory

MINI type Out door units 10kw DRV-H100S

DC inverter technology under T3 conditions

Dekon China VRF AIR CONDITIONER mini type Out door units 10kw 220V DC inverter technology under T3 conditions

DEKON VRF air conditioner-China Professional VRF supplier/factory for many years.

Dekon China VRF AIR CONDITIONER mini type Out door units 10kw 220V DC inverter technology under T3 conditions

Dekon China VRF AIR CONDITIONER mini type Out door units 10kw 220V DC inverter technology under T3 conditions

Model: DRV-H100S

cooling capacity:10KW

Power supply: 220V-50HZ

Specification-Mini VRF
Model Outdoor 　 DRV-H080S DRV-H080W DRV-H100S DRV-H100W
Capacity Cooling kW 8.0 8.0 10.0 10.0
Heating kW 9.0 9.0 11.0 11.0
Electric Data Power Supply V~,Hz,Ph 220~240,50,1 380~415,50,3 220~240,50,1 380~415,50,3
Cooling Power Input kW 2.50 3.00 3.20 3.20
Heating Power Input kW 2.63 3.00 3.20 3.30
Cooling Current A 11.50 6.80 14.70 7.00
Heating Current A 12.00 6.90 14.60 7.20
Performance Air Flow Volume m3/h 4000 4000 4000 4000
Noise Level dB(A) ≤60 ≤60 ≤60 ≤60
Piping Limite Vertical Pipe Length m ≤15 ≤15 ≤15 ≤15
Actual Pipe Length m 20 20 20 20
Equivalent Pipe Length m 25 25 25 25
Total Pipe length m 50 50 50 50
Max. No. of Indoor Units unit 4 4 4 4
Connection Ratio 　 % 50~130 50~130 50~130 50~130
Dimension(WxDxH) Net mm 903x353x795 903x354x857 903x353x795 903x354x857
Packing mm 1030x430x850 1030x410x980 1030×430×850 1030x410x980
Weight Net kg 65 86 67 88
Gross kg 70 92 72 94
Refrigerant Type 　 R410a R410a R410a R410a
Pipe Diameter Liquid Side mm(inch) 9.52(3/8) 9.52(3/8) 9.52(3/8) 9.52(3/8)
Gas Side mm(inch) 15.88(5/8) 15.88(5/8) 15.88(5/8) 15.88(5/8)


Brief introduction about DEKON VRF System.
Dekon China VRF AIR CONDITIONER mini type Out door units 10kw 220V DC inverter technology under T3 conditions

1. Environmental and healthy
A. DC inverter module uses of R410A refrigerant, non destruction to the ozone layer, energy saving, environmental protection and pollution-free;
B. All materials of DC inverter module comply with RoHS environmental directive.
2. Reliable and durable
Adopted Hitachi compressors, efficient, reliable, frequency and fully verified.
3. High efficiency and energy saving
A. DC inverter module uses Hitachi high-performance high efficiency compressor;
B. DC inverter module uses advanced output capacity control technology, according to the indoor, outdoor temperature and load of indoor unit, automaticallyadjust system output capacity, so that indoor can remain in a stable and comfortable temperature, reaching high efficiency and energy saving effect;
C. In cooling mode, EER can achieve up to 4.18, with average EER 3.55;
D. In heating mode, COP can achieve up to 4.37, with average COP 3.96;
4. Long piping design
Maximum length of pipeline up to 150 meters, the max.
Height difference between indoor and outdoor unit up to 50 meters, widely use;
5. Wide operation temperatureCooling operation temperature: 0 ~ 46 degrees
Heating operation temperature: -15 ~ 28 degrees
6. Intelligent control
Our VRF unit only uses one set of control software can manage up to 4096 sets indoor units, canculating each indoor unit as 5HP, total management over 20, 000HP.

For more info, please mail us directly.
