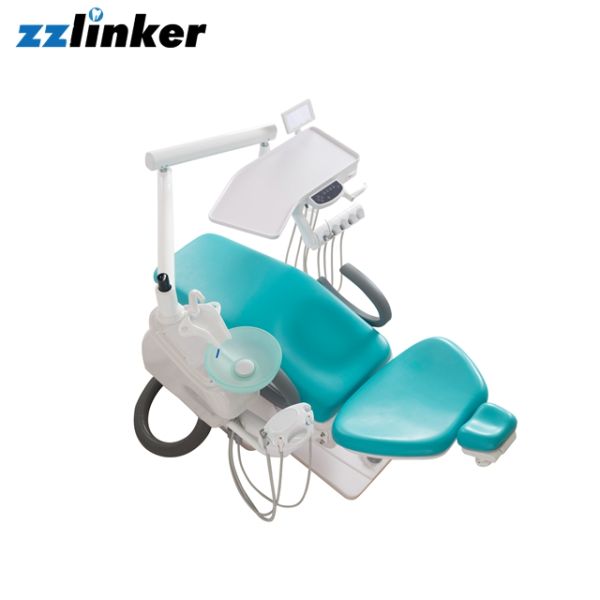

LK-A11Pro Timotion Motor Low Mounted Electric Dental Chair Unit

Dental Chair Unit Instruction:
External Pure water supply system for easy changing.
Big dentist & assistant instrument tray supply enough work space to make work easy & save time.
Smooth “Soft Entrance” function (seat descends when weighted)
Power for max. Load 180 kg
Chair construction anti rust powder coated
Special shaped backrest for protecting shoulder and dorsal
Strong metal ground plate for good stability of the unit

Dental Chair Unit Parameters

Dental Chair Unit Features:
1.Standard chair frame, rigorous scientific design, precise processing technology, double coating anti-rust treatment.
2.The dental chair motor is Taiwan brand TiMOTION,which is DC low-voltage motor, smooth and durable
3.Classic injection molding instrument plate, with Omron high-quality switch keyboard, integrated chair position adjustment, water heating, preset quantitative water supply program, first aid position and reset function, with LED xray film viewer.
4. New side box and built-in water storage bottle, more beautiful, with rotatable spitton which is convenient for customers.
5.Use EU-certified solenoid valve.
6.Use LED sensor oral light with dual-color temperature light source, has 8-level brightness adjustment.
Rotating pillow- lock holder
7.EI type transformer, wide environmental starting conditions, large overload current allowed in a short time, physical and electrical safety isolation, protective cover, effective protection of coil insulation, built-in self-recovery temperature insurance, more effective protection of electrical safety.
8.The strong and weak drain pipe adopts environmentally-friendly steel wire hose pipe, which can effectively prevent the bend and make pipe more durable.

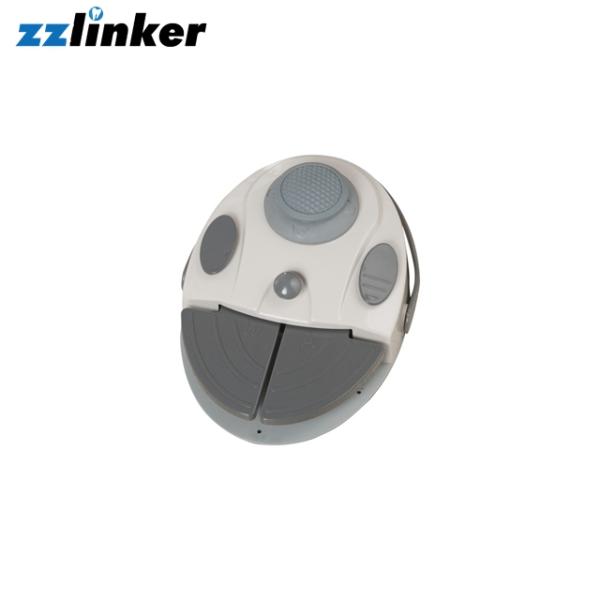

9.Mlti-function foor pedal
10. The main pylon can be rotated, making it easier to operate and prevent scratching, reducing the risk of medical staff.

Specifications of Dental Chair Unit

Supply Voltage110V 60Hz or 220V 50Hz
Air Pressure＞0.55Mpa
Water Pressure 0.2Mpa-.04Mpa
Lowest position of chair 440mm
Highest position of chair 860mm
Chair-back highest 5°
Chair-hack lowest 85°
