LK-A31 Mobile Dental Unit with Wheels 600ml Water Tank Air Compressor Optional

The Mobile Dental Unit User Instruction:

1.Pressure Gauge :Display pressure level while high/low speed handpiece is during operation.

2.Gas Switch :Adjust pressure level while high/low speed handpiece is during operation.

3.Nebulizer Switch :Adjust nebulizer pressure while high/low speed handpiece requires

nebulization function.

4. Gas Switch: Adjust pressure level while high/low speed handpiece is during operation.

5. Nebulizer Switch:Adjust nebulizer pressure while high/low speed handpiece requires

nebulization function.

6.Water Switch:Switch on when high/low speed handpiece requires water. NO NEED TO TURN

OFF.

7.Water Tank Switch:When high/low speed handpiece requires water, switch on the water tank first.

8.Tap Water Switch:When high/low speed handpiece requires tap water, please switch on this button

and switch off the water tank.

9.Water Filter:filter inpurities in the water,screw it down when water is full, empty thewater bucket, and screw it up.

10.Suction Water Joint:Connect Ø10soft tubing,drain away the waste water,please prepare yourOWN waster water bucket.

11.Tap Water Joint:Connect this joint when tap water is required

12.Intake Joint:Please connect with oilless air compressor.

13. Water Tank:Storage pure water.(we suggest you to use pure water instead of tap water,which

is better for the lifetime of this device.)

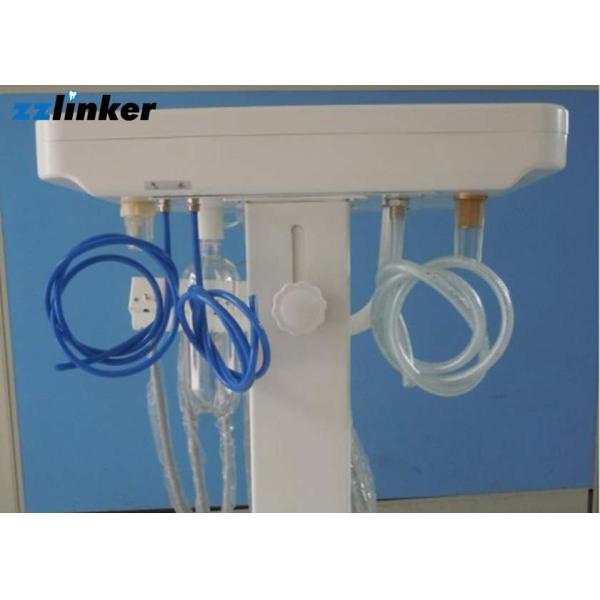

14. Height adjusting rotary button:Able to adjust its height to 10cm.

The Mobile Dental Unit Standard Parts

The Mobile Dental Unit Optional Parts:

High-speed handpiece

Low-speed handpiece

The Mobile Dental Unit Package Details:

Three parts of the package in one unit of device:

Four wheels at the end of basin；

2 Four screws on the connecting square tubing in the middle；

3 One ratory button to adjust height is packed with tool basin.

Honeycomb carton package

Net Wight:16KG

Gross Weight:22KG

Package Dimension:690*520*410(mm)

The Mobile Dental Unit Warranty:

Warranty-period is ONE year,following condition are NOT in the warranty scope:

Man-made damage

Damages caused by abnormal operation.

Damages caused by operation that NOT according to user instruction
