Tungsten Medical X Ray Tube For Mobile Radiography Units 600W / 5200W Power
Tungsten Medical X Ray Tube For Mobile Radiography Units 600W / 5200W Power
Specifications
Brand Name :
SAILRAY
Model Number :
KL10-0.6/1.8-110
Certification :
SFDA
Place of Origin :
CHINA
MOQ :
50PCS
Payment Terms :
T/T, Western Union
Supply Ability :
500PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
CARTON
Nominal Tube Voltage :
110KV
Nominal Focal Spot :
0.6/1.8
Exposure rating :
600W/5200W
Model :
KL10-0.6/1.8-110
Target Angle :
15°
Continuous Rating :
225W
Equivalent to :
CEI 110-15
Price :
Negotiation
Description

Medical X-ray Tubes for Mobile Radiography Units equivalent to CEI 110-15

Quick Detail:

Type:Station anode x-ray tube

Application: For general diagnostic x-ray unit and are available for a nominal tube voltage with self-rectified circuit.

Model: KL10-0.6/1.8-110

Equivalent to CEI 110-15

Integrated high quality glass tube

Description:

KL10-0.6/1.8-110 Stationary anode X-Ray tube is especially designed for Mobile Units for radiography, for Portable Radiographic Units, and available for a nominal tube voltage with high frequency or DC generator.

Specifications:

Nominal Tube Voltage.........................................................................................................................................................110kV

Nominal Focal Spot........................................................................................................................................................small:0.6

.............................................................................................................................................................large:1.8(IEC60336/2005)

Filament Characteristics...........................................................................................................small: Ifmax=4.5A,Uf=5±0.5V

.....................................................................................................................................................large: Ifmax=4.5A,Uf=6.3±0.8V

Nominal Input Power(at 1.0s)......................................................................................................................small spot: 0.6kW

...........................................................................................................................................................................large spot:: 5.2kW

Maximum Continuous Rating............................................................................................................................................225W

Anode Heat Storage Capacity.............................................................................................................................................30kJ

Target Angle...............................................................................................................................................................................15°

Target Material...............................................................................................................................................................Tungsten

Inherent Filtration..................................................................................................................Min 0.6mmAl equivalent at 75kV

Weight.........................................................................................................................................................................approx600g

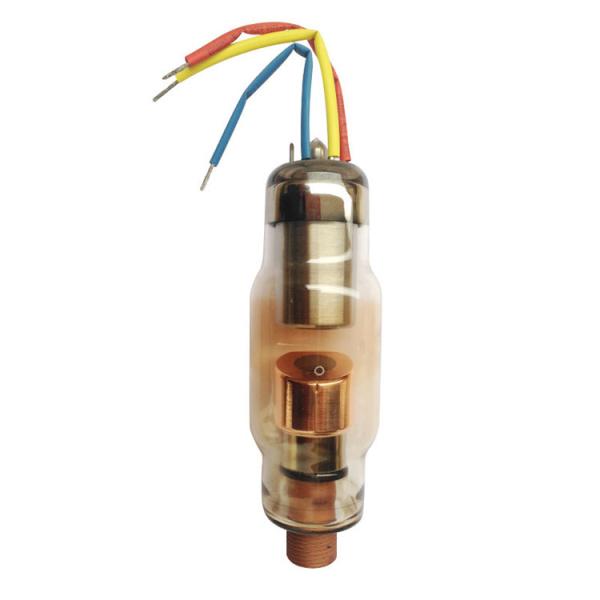

Tungsten Medical X Ray Tube For Mobile Radiography Units 600W / 5200W Power

Detailed Images

Tungsten Medical X Ray Tube For Mobile Radiography Units 600W / 5200W Power

For more type of our x-ray tube, please see the following chart:

BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE
Type Equivalent Nominal Focal Spot Value

Max

Rating

(W)

Max.

Voltag

(kV)

 Filament Characteristics

Target

Angle

( °)

Anode

Heat

Content(KJ)

 Dimension

Length

×Diameter
KL1-0.8-70 CEI OX/70-P 0.8 840 70 2.2A 3.6V 19 7 80×30
KL2-0.8-70G CEI OCX/65-G 0.8 560 70 2.8A 4V 19 7.5 80×30
KL5-0.5-105 OPX/105 0.5 950 105 3.5A 5.5V 5 35 140×42
KL10-0.6/1.8-110 CEI 110-15 0.6/1.8

600

/5200

 110 4.5A 5V/
4.5A 6.3V		 15 30 155×50
KL11-0.4-70 Toshiba D-041 0.4 430 70 3A 3.2V 12 4.3 67×30
KL12-1.5-85 1.5 1800 85 2.5A 2.8V 23 10 105×30
KL13-2.6-100 2.6 3500 100 4.5A 7.8V 19 30 180×50
KL20-2.8-105 CEI OX105-6 2.8 6000 105 5A 10V 19 30 145×50
KL22-1.8-90 CEI OX90-2 1.8 2200 90 4.3A 6.5V 19 20 140×42
KL25-0.6/1.5-110 CEI 110-5 0.6/1.5 600/
3500		 110 4.5A 5V/
4.5A 6.3V		 12 30 145×50
KL27-0.8-70 CEI OX/70-M 0.8 840 70 2.1A 2.8V 19 7 72×30
XD2-1.4/85 1.5 1800 85 2.6A 3.0V 23 10 105×30
XD3-
3.5/100		 2.6 3500 100 4.5A 7V 19 30 180×51
XD3A-
3.5/105X		 CEI OX105-4 2.6 3500 100 4.5A 7V 19 30 178×51
XD4-
2,9/100		 1.8/4.2 2500/
10000		 100 4.5A 5V/
4.5A 10V		 19 55 230×60
XD6-1.1,3.5/100 1.0/2.6 1100/
3500		 100 4.5A 3.7V/
4.5A 7.8V		 19 30 180×50
XD9-
3.1/100		 2.2 3100 100 4.5A 8.5V 19 30 147×50
