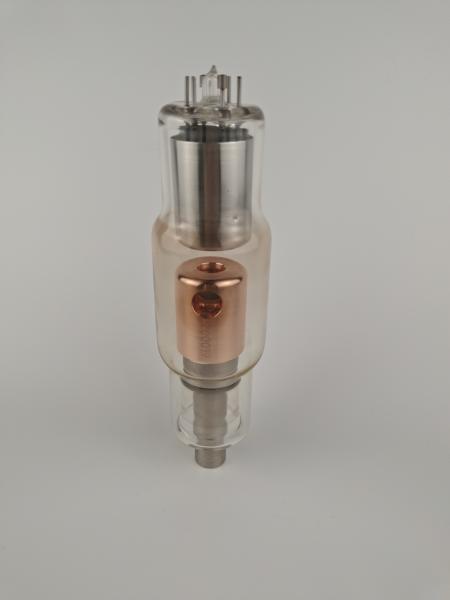

50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
50mA Medical X Ray Tube for general medical diagnotic x-ray equipment
Specifications
Brand Name :
SAILRAY
Model Number :
XD3-3.5/100
Certification :
SFDA
Place of Origin :
CHINA
MOQ :
50PCS
Payment Terms :
T/T, Western Union
Supply Ability :
500PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
CARTON
Price :
Negotiation
Model :
XD3-3.5/100
Nominal Tube Voltage :
100KV
Nominal Focal Spot :
2.6
NomMax Rating :
3500W
Target Angle :
19°
Description

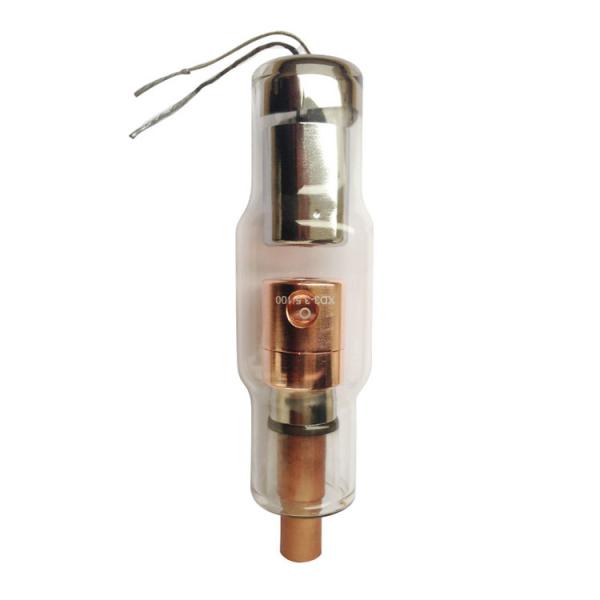

Digital Medical Device Stationary Anode Tube Insertion for Diagnostic X-ray System

Description:

This tube, XD3-3.5/100 is designed for general diagnostic x-ray unit and available for a nominal tube voltage with self-rectified circuit.

XD3-3.5/100 tube has two focus.

The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode.

The high anode heat storage capacity ensures a wide range of applications for general diagnostic x-ray application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support

Quick Detail:

Type: Station anode x-ray tube

Application: For general diagnostic x-ray unit

Model: XD3-3.5/100

Integrated high quality glass tube

Specifications:

Nominal Tube Voltage..........................................................................................................................................................100kV

Nominal Focal Spot....................................................................................................................................2.6 (IEC60336/1993)

Max. Anode Heat Content .................................................................................................................................................35000J

Target Angle.................................................................................................................................................................................19°

Filament Characteristics......................................................................................................................If max= 4.5A , Uf= 7±0.8

Permanent Filtration........................................................................................................Min. 1mmAl/ 50kv (IEC60522/1999)

Target Material.................................................................................................................................................................Tungsten

Max Rating............................................................................................................................................................................3500W

Competitive Advantage:

Elevated anode heat storage capacity and cooling

Constant high dose yield

Excellent lifetime

50mA Medical X Ray Tube for general medical diagnotic x-ray equipment

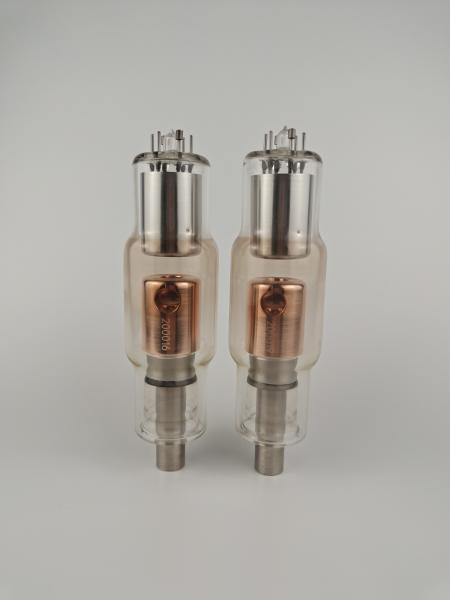

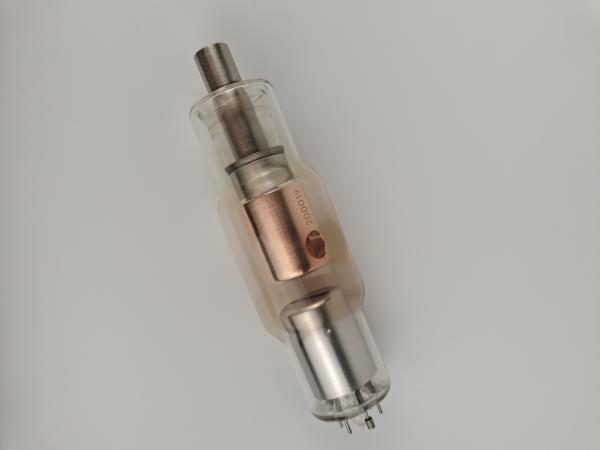

Detailed Images

50mA Medical X Ray Tube for general medical diagnotic x-ray equipment

For more type of our x-ray tube, please see the following chart:

BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE
Type Equivalent Nominal Focal Spot Value

Max

Rating

(W)

Max.

Voltag

(kV)

 Filament Characteristics

Target

Angle

( °)

Anode

Heat

Content(KJ)

 Dimension

Length

×Diameter
KL1-0.8-70 CEI OX/70-P 0.8 840 70 2.2A 3.6V 19 7 80×30
KL2-0.8-70G CEI OCX/65-G 0.8 560 70 2.8A 4V 19 7.5 80×30
KL5-0.5-105 OPX/105 0.5 950 105 3.5A 5.5V 5 35 140×42
KL10-0.6/1.8-110 CEI 110-15 0.6/1.8

600

/5200

 110 4.5A 5V/
4.5A 6.3V		 15 30 155×50
KL11-0.4-70 Toshiba D-041 0.4 430 70 3A 3.2V 12 4.3 67×30
KL12-1.5-85 1.5 1800 85 2.5A 2.8V 23 10 105×30
KL13-2.6-100 2.6 3500 100 4.5A 7.8V 19 30 180×50
KL20-2.8-105 CEI OX105-6 2.8 6000 105 5A 10V 19 30 145×50
KL22-1.8-90 CEI OX90-2 1.8 2200 90 4.3A 6.5V 19 20 140×42
KL25-0.6/1.5-110 CEI 110-5 0.6/1.5 600/
3500		 110 4.5A 5V/
4.5A 6.3V		 12 30 145×50
KL27-0.8-70 CEI OX/70-M 0.8 840 70 2.1A 2.8V 19 7 72×30
XD2-1.4/85 1.5 1800 85 2.6A 3.0V 23 10 105×30
XD3-
3.5/100		 2.6 3500 100 4.5A 7V 19 30 180×51
XD3A-
3.5/105X		 CEI OX105-4 2.6 3500 100 4.5A 7V 19 30 178×51
XD4-
2,9/100		 1.8/4.2 2500/
10000		 100 4.5A 5V/
4.5A 10V		 19 55 230×60
XD6-1.1,3.5/100 1.0/2.6 1100/
3500		 100 4.5A 3.7V/
4.5A 7.8V		 19 30 180×50
XD9-
3.1/100		 2.2 3100 100 4.5A 8.5V 19 30 147×50
