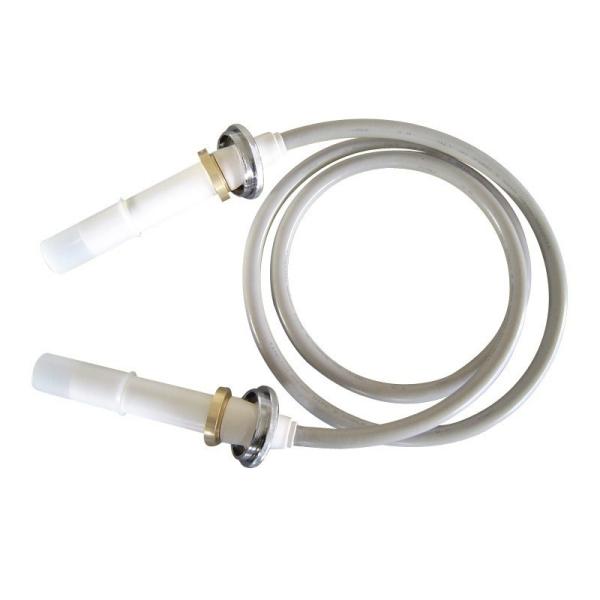

HV cable Medical x ray high voltage cables for X-ray Machine

Description:

This 3-conductor with rubber insulated high voltage cable's
typical applications are as followings:
1, Medical x-ray equipment like standard x-ray, computer tomography and angiography equipment.
2, Industrial and scientific x-ray or electron beam equipment like electron microscopy and x-ray diffraction equipment.
3, Low power high voltage testing and measuring equipment.

Connection Diagram:
54mm X Ray High Voltage Cables Epoxy Curing Agent Material Pvc Jacket

Cable Sectional Drawing

54mm X Ray High Voltage Cables Epoxy Curing Agent Material Pvc Jacket

Plug Sectional Drawing

54mm X Ray High Voltage Cables Epoxy Curing Agent Material Pvc Jacket


Technical Data

Electrical Data
Rated voltage 75KVdc
Routine test voltage (between conductor and copper braid) 90kVDC/10min
Routine test voltage (between conductor) 2kVAC/5min
Max D.C. Conductor resistance @20ºC ≤13.7Ω/Km
Insulated conductor resistance ≥1000MΩ·Km
Machnical Data:HV cable
Item Construction Remark
Conductor Material Tinned copper
Wire gauge AWG 15
Construction pc/mm 19/0.32
Diameter mm Nominal 1.6±0.03
Insulation Material,Color FEP Two colors
Thickness mm Nominal 0.3
Diameter mm Nominal 2.2±0.1
Ground Wire Material Tinned copper
Wire gauge AWG 18
Construction pc/mm 42/0.15
Diameter mm Nominal1.6±0.03
Semi-conducting Tape Thickness mm 0.1
Diameter mm 4.7±0.2
Nature rubber insulation Material,Color Natural rubber main material
Thicknes mm Nominal 4.7
Diameter mm Nominal 14.2±0.2
Nature rubber insulation Semi-conducting Tape Thicknes mm 0.1
Diameter mm 14.5±0.2
Shielding Braid Material Tinned copper
Construction 24/13/0.12
Braiding Density ≥85%
Diameter mm 15.2±0.2
PVC Jacket Material,Color PVC elastomer light grey
Thicknes mm Nominal 1.2
Diameter mm Nominal 17.8±0.3

Machnical Data: Plug
Item Construction Remark
HV Cable Diameter mm 17.8±0.3
EPOXY Material EPOXYCuring agent
Construction Filled in the space between plug and HV cable
PBT plug Size According to the International Standard Pin on the connector is silvered and demountable
Sleeve Length mm

54
