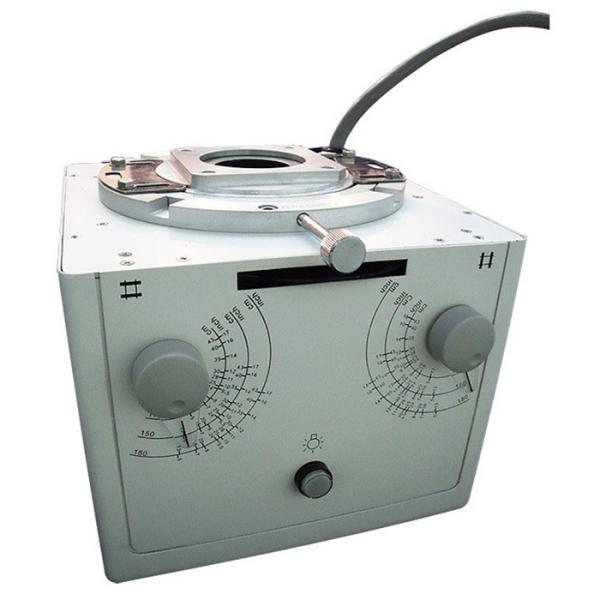

Iron Shell X Ray Collimator For C - Arm Fluoroscopy High Power Durable
Iron Shell X Ray Collimator For C - Arm Fluoroscopy High Power Durable
Iron Shell X Ray Collimator For C - Arm Fluoroscopy High Power Durable
Iron Shell X Ray Collimator For C - Arm Fluoroscopy High Power Durable
Specifications
Brand Name :
SAILRAY
Model Number :
SR302
Place of Origin :
CHINA
MOQ :
4
Payment Terms :
T/T, Western Union
Supply Ability :
100 per month
Delivery Time :
30 work days
Packaging Details :
Wooden Case
Model No :
SR302
Max Voltage :
150KV
Input Power :
AC24V
Shell Material :
Iron Shell
contrast ratio :
>4:1
Control Method :
Manual
Dimension(mm) :
260×210×190
Price :
Negotiation
Description

150kv Iron Shell Manual X-ray Beam Collimator for C-Arm fluoroscopy

Quick Detail:

Type: SR302

Applicable for Bed mobile x-ray machine
Maximum X-ray field coverage range: 440mm×440mm

Max Voltage: 150KV

Weight(Kg): 7.9

technical parameters:

Radiation Shielding 150KV
Maximum X-ray field coverage range 480mm×480mm (SID=100cm)
The average brightness of the light field >160 lux
Edge contrast ratio >4:1
Power supply requirement of projection lamp 24V AC/150W
Bright X-ray field duration for Once 30S
Distance from Focal Spot of X-ray tube tl he mount plane of collimator SFD (mm)(optional) 60
Filteration(Inherent) 75kV 1mmAl
Filteration(Additional) Manually choose three filtration
Control method Manual
Drive motor --
Motor Control --
Position detection --
Input power AC24V
(SID)Measuring tape Configuration
Center laser instructions optional
Dimension(mm)(W×L×H) 260×210×190
Weight(Kg) 7.9

Detailed Images

Iron Shell X Ray Collimator For C - Arm Fluoroscopy High Power Durable
