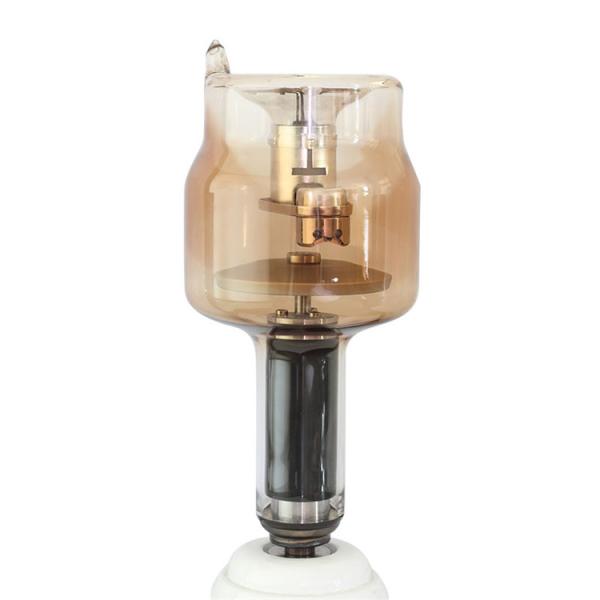

2800RPM 30kW / 50kW Rotating Anode X Ray Tube Glass Material High Dose Yield
2800RPM 30kW / 50kW Rotating Anode X Ray Tube Glass Material High Dose Yield
Specifications
Brand Name :
SAILRAY
Model Number :
SRMWTX90-1.0/2.0-150
Certification :
SFDA
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
CARTON
Nominal Tube Voltage :
150KV
Nominal Focal Spot :
1.0/2.0
Exposure rating :
30kW/50kW(50Hz)
Target Angle :
16°
Model :
SRMWTX90-1.0/2.0-150
Maximum Continuous Dissipation :
490W
Rotation Speed :
2800RPM
Heat Storage :
200KHU
Price :
Negotiation
Description

T 30kW/50kW Rotating Anode X-ray Tube Equivalent to IAE X50 Nago Gd6

Quick Detail:

Type: Rotating anode x-ray tube

Application: For Medical diagnosis x-ray unit

Model: SRMWTX90-1.0/2.0-150

Equivalent to IAE X50 Nago Gd6

Integrated high quality glass tube

Description:

XD90-1.0/2.0-150 tube has a double focus designed for use with standard-speed anode rotation for high energy radiographic and cine-fluoroscopic operations.

The integrated high quality tube with glass design has two super imposed focal spots and a rein-forced 90 mm anode. The high anode heat storage capacity ensures a wide range of applications for standard diagnostic procedures with conventional radiographic and fluoroscopy systems.

A special designed anode enables an elevated heat dissipation rate which leads to a higher patient through- put and a longer product life.

A constant high dose yield during the entire tube life is ensured by the high density rhenium-tungsten compound target. Ease of integration into system products is facilitated by extensive technical support.

Specifications:

Maximum Operating Voltage....................................................................150KV

Focal Spot Size........................................................................................1.0/2.0

Diameter....................................................................................................90mm

Target Material............................................................................................ RTM

Anode Angle................................................................................................16°

Rotation Speed....................................................................................2800RPM

Heat Storage..........................................................................................190kHU

Maximum Continuous Dissipation.............................................................490W

Filament Characteristics

Small filament..............................................................fmax=5.4A ,Uf=8.0±1V

Big filament ..............................................................Ifmax=5.4A,Uf=11.0±1V

Inherent Filtration....................................................................................1mmAL

Maximum Power...…..................................................................30KW/50KW

OUTLINE DRAWING:

2800RPM 30kW / 50kW Rotating Anode X Ray Tube Glass Material High Dose Yield

Detailed Images

2800RPM 30kW / 50kW Rotating Anode X Ray Tube Glass Material High Dose Yield

For more type of our rotating anode x-ray tubes, please see the following chart:

Type Focal
spot		 Max rating(kW) Max
voltage
(kV)		 Max tube current
(mA)		 Target
angle()		 Target
material		 Dimension
(mm)		 Rotation
rate
(W/min)		 Max anode
heat content
(KHU)		 Max anode
continuous heat dissipation(W)
MWTX64-0.3/0.6-130 0.3/0.6 5/17(50Hz) 130 110/360 10° RTM 218×Φ80 2800 210 300
MWTX64-0.6/1.3-130 0.6/1.3 11/32(50Hz) 130 250/700 15° RTM 218×Φ80 2800 110 300
MWTX64-0.8/1.8-130 0.8/1.8 12/33(50Hz) 130 180/480 15° RTM 218×Φ80 2800 70 175
MWTX64-0.6/1.3-130H 0.6/1.3 20/54(150Hz) 130 400/880 15° RTM 218×Φ80 2800/8400 110 300
MWTX70-1.0/2.0-125 1.0/2.0 21/42.5(50Hz) 125 340/570 16 RTM 250×Φ108 2800 140 475
MWTX71-0.6/1.2-125 0.6/1.2 20/40(50Hz) 125 350/750 12.5 RTM 250×Φ108 2800 150 500
MWTX72-1.0/2.0-125 1.0/2.0 20/40(50Hz) 125 380/800 16° TM 250×Φ108 2800 140 410
MWTX72-1.0/2.0-150 1.0/2.0 20/40(50Hz) 150 380/800 16° TM 250×Φ108 2800 140 410
MWTX73-0.6/1.2-150 0.6/1.2 20/50(50Hz) 150 400/1fff 12° RTM 250×Φ108 2800 300 750
MWTX74-0.6/1.2-150 0.6/1.2 20/46(50Hz) 150 370/760 12 RTM 250×Φ108 2800 150 475
MWTX75-0.6/1.2-150 0.6/1.2 20/50(50Hz) 150 300/700 12 RTM 250×Φ108 2800 220 750
MWTX76-0.6/1.2-150 0.6/1.2 20/50(50Hz) 150 300/700 12 RTM 250×Φ108 2800 300 870
MWTX78-0.6/1.5-125 0.6/1.5 18/47.5(50Hz) 125 260/750 14° RTM 250×Φ108 2800 200 410
MWTX90-0.6/1.2-150 0.6/1.2 19/50(50Hz) 150 350/800 12° RTM 265×Φ120 2800 300 500
MWTX90-1.0/2.0-150 1.0/2.0 30/50(50Hz) 150 400/700 16° RTM 265×Φ120 2800 200 490
