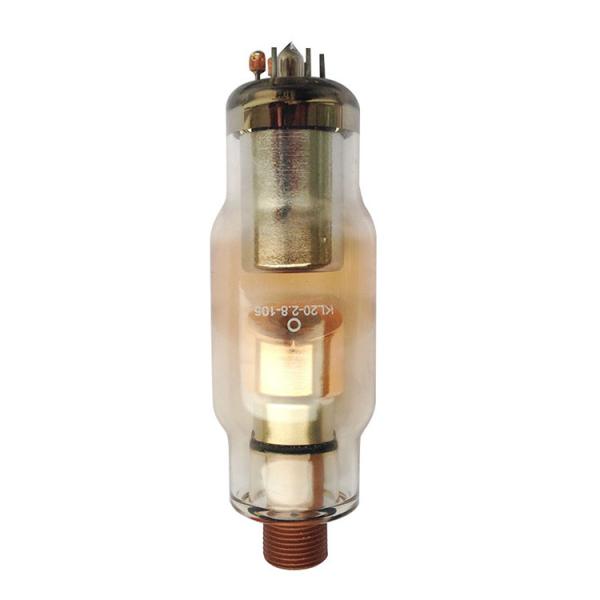

Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit
Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit
Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit
Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit
Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit
Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit
Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit
Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit
Specifications
Brand Name :
SAILRAY
Model Number :
KL20-2.8-105
Certification :
SFDA
Place of Origin :
CHINA
MOQ :
50PCS
Payment Terms :
T/T, Western Union
Supply Ability :
500PCS/MONTH
Delivery Time :
30DAYS
Packaging Details :
CARTON
Price :
Negotiation
Nominal Tube Voltage :
105KV
Nominal Focal Spot :
2.8
Model :
KL20-2.8-105
Nominal Anode Input Power :
6000W
Target Angle :
19°
Max.continuous current :
3.0mA@100kVAC
Description

Portable Diagnostic X Ray Machine Tube Insertion KL20 Equivalent to CEI OX105-6

Quick Detail:

Type: Station anode x-ray tube

Model: KL20-2.8-105

Application: For general diagnostic x-ray unit

Equivalent to CEI OX105-6

Integrated high quality glass tube

Description:

KL20-2.8-105 stationary X-Ray tube is especially designed for general diagnostic x-ray unit and available for a nominal tube voltage with self-rectified circuit.

KL20-2.8-105 tube has one focus.

The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode.

The high anode heat storage capacity ensures a wide range of applications for general diagnostic x-ray application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support

Specifications:

Maximum Tube Voltage 105KV
Nominal Inverse Voltage 115KV
Maximum anode cooling Rate 250W
Anode Heat Storage Capacity 30KJ
Filament Characteristics 3.0 – 5.0A, 6.0 – 10.0V
Focal spot 2.8(IEC 60336/2005)
Target Angle 19°
Target Material Tungsten
Cathode type W filament
Dimensions 145mm length by 50mm diameter
Inherent Filtration Max 1.0mmAl(IEC60522)
Nominal Anode Input Power 3.0mA@100kVAC

Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit

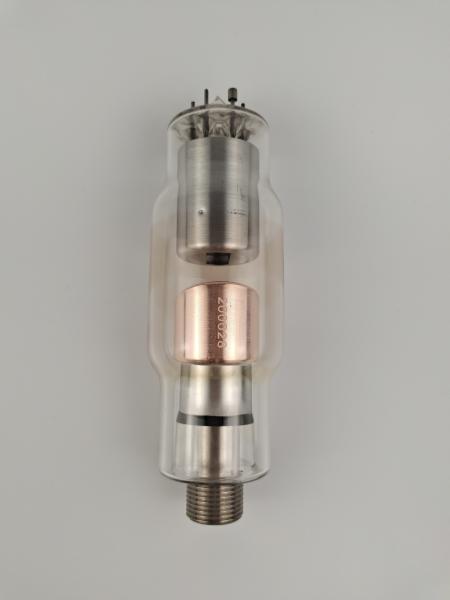

Detailed Images

Medical Stationary Anode X Ray Tube For Mobile X-Ray Machine/X-Ray Unit
