Photographic Construction X Ray Machine , Portable Stationary X Ray Machine
Photographic Construction X Ray Machine , Portable Stationary X Ray Machine
Specifications
Brand Name :
SAILRAY
Model Number :
HS-01
Certification :
CE, CQC, ROHS
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Model :
HS-01
Type :
Two step
Internal structure :
Mechanical
Cover Materia :
PU
Wires Material :
Copper
Applications :
Electric Control Parts
Warranty :
1 Year
Operation voltage :
125v
Price :
Negotiation
Description

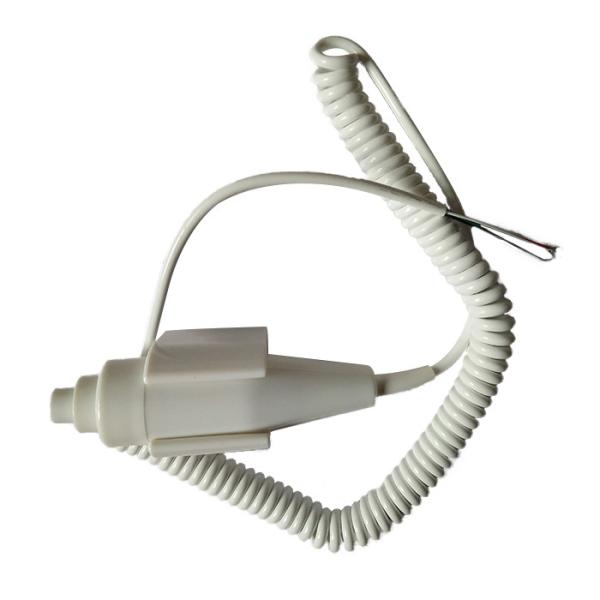

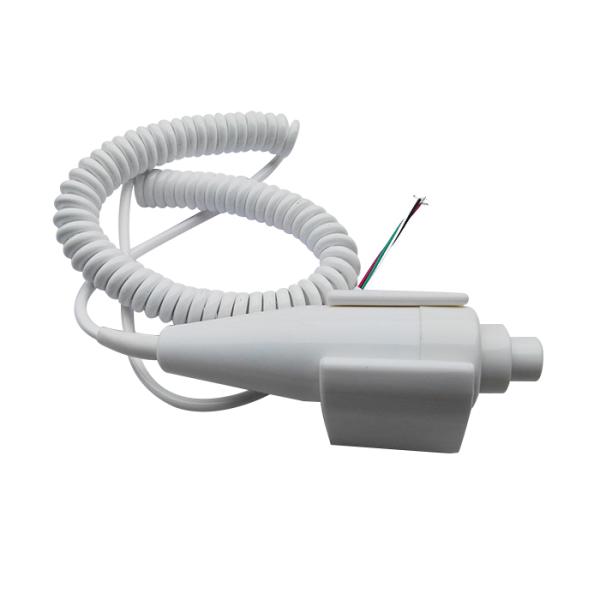

ABS Plastic Two step X ray Exposure Switch for Dental x-ray machine

Type and Useful time:

Cores:................................................................................................three cores, four cores
Type:.................................................................................................. two step
Useful time(Mechanical life): .......................................................1.0 million times---50 million times
Useful time(Electrical life): ...........................................................100 thousand times---300 thousand times

Quick Detail:

1. Model: HS-01

2. Type: Two stepping

3. Construction and material: With Mechanical switch, PU coil cord cover and copper wires

4. Wires and coil cord: 3cores or 4cores, 2.2m or 5m

5. Certification: CE, CQC, RoHS

6. Connector: can fixed to RJ11,RJ12,RJ45,D9 connector or Air plug



Description:
X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure.



Performance Parameters( 3cores and 4 cores):

Working Voltage(AC/DC) Working Current(AC/DC) Shell Material Cores
Red Green White
125V/30V 1A/2A White, ABS engineering plastics Ⅰstage Concentric line Ⅱstage

Working Voltage Working Current Shell Material Cores
White + Red green + Black
125V 1A White, engineering plastics
Ⅰstage
Ⅱstage


Operation Method:
When pressing the button, it is connected while loosing it is cut. Press the button to the first stage, the first grade is connected. This is for x-ray preparation. Then do not loose your thumb, and press the button to the bottom, the second grade is connected while the first grade remains connected. This is for x-ray operation.
