DB9 Connector Omron X Ray Hand Switch For Medical Diagnostic Custom Design
DB9 Connector Omron X Ray Hand Switch For Medical Diagnostic Custom Design
Specifications
Brand Name :
SAILRAY
Model Number :
HS-01
Certification :
CE, CQC, ROHS
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union
Supply Ability :
500pcs per month
Delivery Time :
30 days
Packaging Details :
Carton
Model :
HS-01(3 Cores,2.2m,with DB9 Connector )
Type :
Two step
Cover Materia :
PU
Wires Material :
Copper
Applications :
Electric Control Parts
Connector :
DB9
Inner Construction :
Omron micro switch
Price :
Negotiation
Description

Two Step X-ray Exposure Omron micro Switch with DB9 Connector



Applications:
X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure

Quick Detail:
Model: HS-01
Type: Two stepping
Construction and material: with Omron micro switch, PU coil cord cover and copper wires
Wires and coil cord: 3cores or 4cores, 2.2m or 5m
Mechanical life: 1.0 million times
Electrical life: 100 thousand times
Certification: CE, CQC, RoHS
Connector: can fixed to DB9,RJ11,RJ12,RJ45 or Air plug


Performance Parameters( 3cores and 4 cores):

Working Voltage(AC/DC) Working Current(AC/DC) Shell Material Cores
Red Green White
125V/30V 1A/2A White, ABS engineering plastics 1 stage Concentric line 2 stage

Working
Voltage		 Working
Current		 Shell
Material		 Cores
White + Red green + Black
125V 1A White, engineering plastics
1 stage
2 stage



Type and Useful time:

Cores:......................................................................................................three cores, four cores
Type:........................................................................................................ two step
Useful time(Mechanical life): ..............................................................1.0 million times---50 million times
Useful time(Electrical life): .................................................................100 thousand times---300 thousand times


Operation Method:
When pressing the button, it is connected while loosing it is cut. Press the button to the first stage, the first grade is connected. This is for x-ray preparation. Then do not loose your thumb, and press the button to the bottom, the second grade is connected while the first grade remains connected. This is for x-ray operation.


Transportation and Storage Conditions:

Environment Temperature Relative Humidity Atmospheric Pressure
(-20~70)ºC ≤93% (50~106) KPa

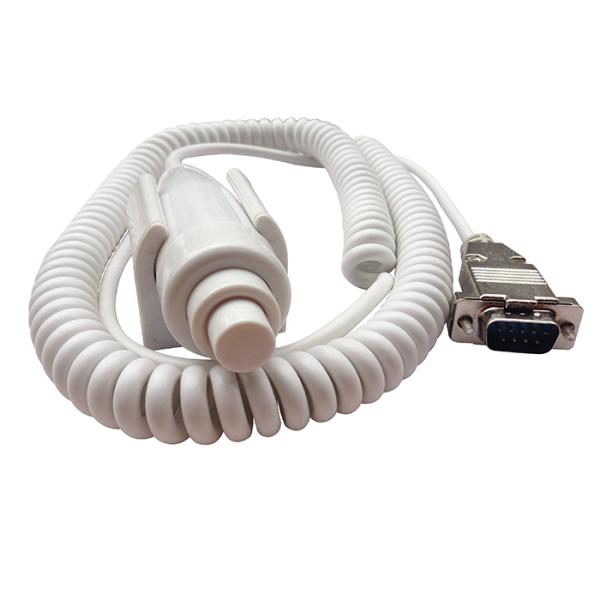

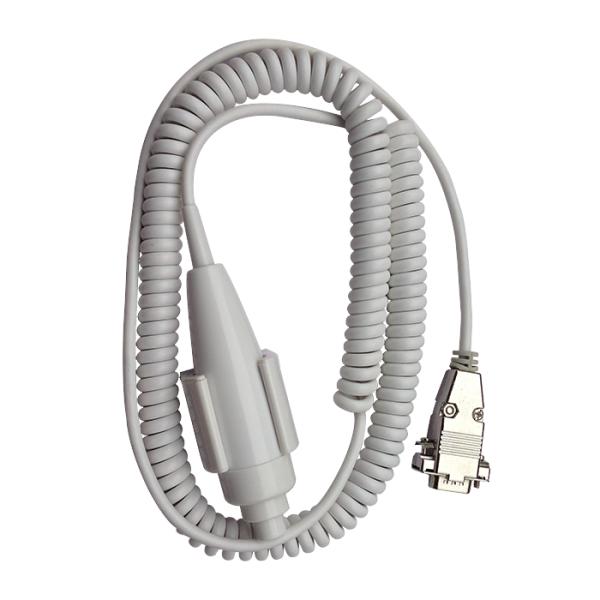

Detailed Images

DB9 Connector Omron X Ray Hand Switch For Medical Diagnostic Custom Design

DB9 Connector Omron X Ray Hand Switch For Medical Diagnostic Custom Design
