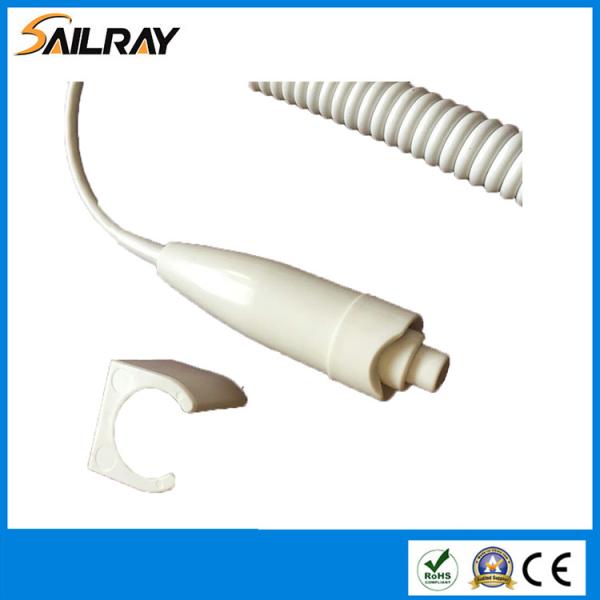

One Step X Ray Exposure switch for X-ray Machine or Medical Equipment

Quick Detail:
Model: HS-03-1
Type: One step
Construction and material: With Mechanical switch, PU coil cord cover and copper wires
Mechanical life: 1.0 million times
Electrical life: 100 thousand times
Certification: CE, CQC, RoHS
Connector: can fixed to RJ11, RJ12


Competitive Advantage:
Better performance with Omron micro switch
Better elasticity of coil cord with PU cover and pure copper wire
Longer Mechanical life and Electrical life
CE, CQC, ROHS approval.


Applications:
X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure

Type and Useful time:

Cores:................................................................................................two cores or three cores
Type:.................................................................................................. one step
Useful time(Mechanical life): .......................................................1.0 million times---50 million times
Useful time(Electrical life): ...........................................................100 thousand times---300 thousand times


Operation Method:
When pressing the button, it is connected while loosing it is cut. Press the button to the first stage, the first grade is connected. This is for x-ray preparation. Then do not loose your thumb, and press the button to the bottom, the second grade is connected while the first grade remains connected. This is for x-ray operation.


Transportation and Storage Conditions:

More detail:
