Aixin AX-JT5 dental lab equipment workstation with double vacuum suction

Item

New AX-JT5 Dental Workstation (Single)

Article Number
MP07010

Certification
CE Approved　ISO9001:2000 Approved

Purpose
This unit is used in dental laboratories for removal of dust resulting from machining.

Description

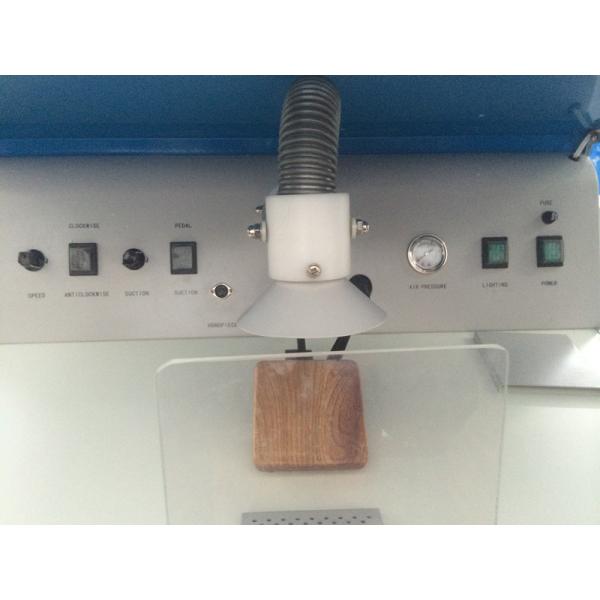

The New AX-JT5 Dental Workstation, designed by Aixin Medical in 2014, is probably the most user-friendly product of its kind. Plexiglass of high transparency forms a closed working space for polishing. The unique design of double suction hood enables dust suction from both above and below the working platform, realizing dust-free operation in dental labs. With a wooden working platform that can be adjusted both upward/downward and forward/backward, and an upper suction hood that can be adjusted in different directions and opened/closed independently, each dental technician can find a working posture that suits him most. In addition, the workstation is equipped with perfect lighting, automatic retrievable air nozzle, storage drawers, as well as an automatic foot control for both the handpiece and the dust collector(one Korean handpiece included). The user can simply control the dust collector and handpiece simultaneously with one pedal. This design can increase the lifespan of the motor by 200% and reduce the power consumption by 300%.(The product life and power saving improvement tests are individual tests, they may be invalid under certain operating environments. )

Technical Data

Parts Included

Fluorescent Lighting System×1
Air Nozzle×1

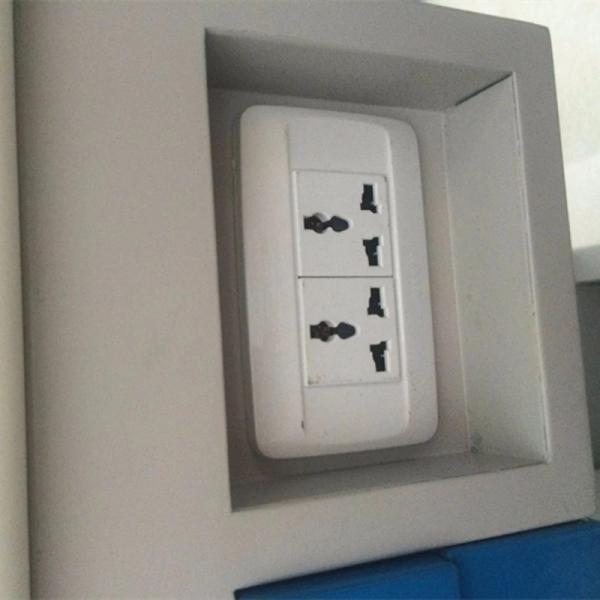

Backup Power Socket×1
Dust Extraction System×1

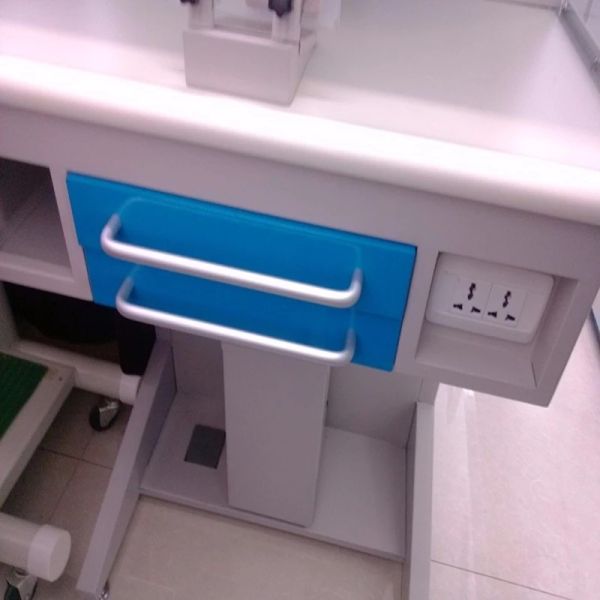

Tools Drawer ×2
The cover of suction Hood ×2

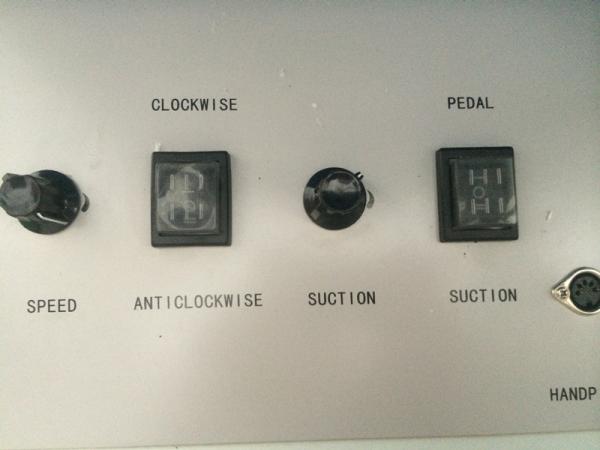

Handpiece Control Assembly ×1
Micromotor Handpiece×1
Stainless steel Tabletop×1 (Optional)
Technician Stool×1 (Optional, please refer to C450)

Colors
If the order quantity is more than 12PCS, the color of the workstation can be customized. The colors in the pictures are for reference only, and are not used for final color matching.

Gloss Paint: Color Card 01, Color Card 02, Color Card 03, Color Card 04, Color Card 05
Flat Paint: Color Card 01, Color Card 02, Color Card 03
Sand Textured Paint: Color Card 01, Color Card 02, Color Card 03
