Input | 230V~ 50/60Hz 150mA / 110V~ 50/60Hz 300mA |
Output power | 3W~ 20W |
Output primary tip vibration excursion | ≤200μm |
Output tip vibration frequency | 28kHz±3kHz |
Output half-excursion force | <2N |
Water flow rate | 0~50ml/min |
Weight of main unit | 2.5kg |
Operating mode | Continuous operation |
Degree of protection against electric shock | BF |
Degree of protection against harmful ingress of water | Ordinary equipment(IPX0), Foot switch(IPX1) |
Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air or with Oxygen or Nitrous Oxide | Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide |
The condition of working environment:
1. Environmental temperature: +10’C to +40’C
2. Environmental humidity: 0 to 80%
3. Atmospheric pressure: 700hPa to 1060hPa.

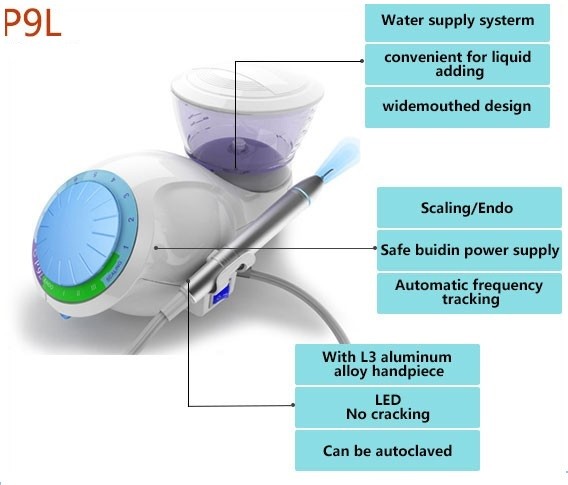

Advantage
1. More beautiful appearance. Compact size.
2. No consumables in waterway system. It can save much repair cost and charge after sales. The pump of P9L is not peristalsis one, and it can avoid many troubles compared with traditional peristalsis one.
3. Detachable aluminum alloy LED handpiece: It is the world's first invention in the field of scaler handpiece, which obtains 15 patents.Better heat dispersion. No cracking. No deformation. No yellowing. More comfortable.
It and its spare parts can be autoclaved together or separately, but other brands' LED lamp and light guide can't be autoclaved separately.
Use life of LED lamp and light guide are longer than original EMS according to repeated testing in our lab.
LED color temperature: 3000K-3200K, warm white light. Dentist isn't easy to feel tired when operation.
Now other Chinese competitors are following us to develop aluminum alloy scaler handpieces or copy ours.
4. Built-in power supply with smaller volume is much safer, more convenient than portable one.
5. Identifying scaler tip automatically. It means that you can not use endo function normally at the scaling area and vice versa.
6. Noiseless working pump. Not only the pump can save the consumables but also it is silence.
7. Independent and wide-mouth bottle is easy to be cleaned and added liquid inside. We offer 2pcs bottles.
8. TW3 torque wrench with aluminum alloy material. It keeps unique patent certificate. We use magnet on it, and that can help it adsorb scaler tip to avoid dropping off to hurt the dentist or patient because of carelessness. Meanwhile, its special clamping device can prevent scaler tip from damage even dentist hard screws the tip. Now other factories’ wrench has no magnet on it. TW3 can screw the tips for more than 3000 times, but others can screw the tips only about 500 times.
