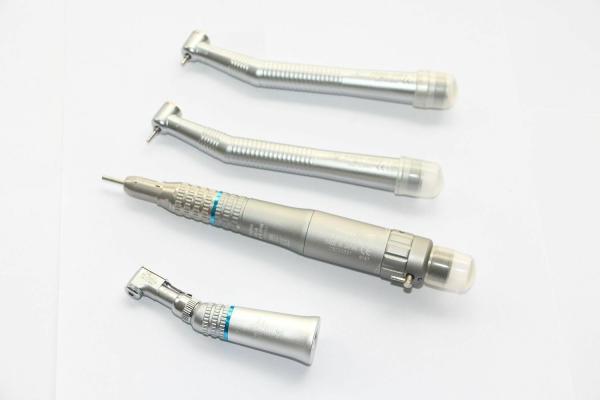

Dental NSK pana air high speed handpiece contra/straight low speed handpiece kit students handpiece kit

Features:

Single Water Spray High Speed Dental Handpiece , Straight Nsk Low Speed Handpiece

High speed handpiece Compatible NSK PANA Air Style
2-hole/4-hole standard wrench type handpiece
Single water spray
It has unique appearance design and fluent outline.
Smooth as silk, it has excellent texture.
With people-friendly design, easy for operation.
With best quality cartridge, easier for cleaning.
With high-speed turbine rotation, it has better performances.
Chucking power of chucking needle is 20N-45N.
It is noise-free and stable.
Applicable Bur: 1.6mm and should be conformed to ISO standard.
Idling speed of handpiece should be no less than 370,000 rotations under working air pressure of 25-30 pressure atmosphere.
Special for operations such as clamping high-speed dentistry machine needle to drill and grind teeth in department of stomatology, it is more professional.
It is only for people who have dentistry medical qualification.

Specification:

DESCRIPTION

Standard Wrench type, high speed handpiece, single water spray 2 hole

NEEDLE CHANGE TYPE

Wrench Type

AIR PRESSURE AT THE BACK END OF HP

206~231 KPa (2.1~2.35 kgf/cm2)

AIR PRESSURE AT THE GAUGE IN THE DENTAL UNIT

240-294 KPa (2.45-3.0 kgf/cm2)

WATER PRESSURE

198Kpa (2 kg)

ROTATION SPEED

370,000-420,000 rpm

HEAD HIGHT

13.14 mm

HEAD DIAMETER

φ12.5 mm

BUR APPLICABLE

φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)

NOISE

≤70dB

Functions and Characteristics:

Self-illuminated, just a little air can generate sufficient power, superior brightness.

Can be used without connecting circuit

Wrench type

Opening cartridge

Triple water sprays

135°C Autoclavable

Contra angle handpiece

Low Speed 22,000-27,000 rpm.

The shank of the instrument mounted therein is 2.35 mm

Fastening of the instruments with a turning latch

Autoclavable 135°

For any lab or E-type motors

Straight Nosecone

Working pressure: 0.3MPa (2-hole);

0.25MPa (2-hole/4hole) (Measure meter is installed at the end of air motor to measure the air pressure).

Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)

Noise: ≤68dB

Air consumption: about 56L/mi

Ratio: 1:1

Max speed of contra angle: 25000rpm/min.

Air Mortor EX-203

Supply air pressure: 245-392KPa (2.5-4kgf/CM2)

1:1 Direct Drive

Borden 2 holes/4 hole

Max speed 20,000 min-1

Warranty:

- Long Life-Span
- One Year Manufacturer Warranty

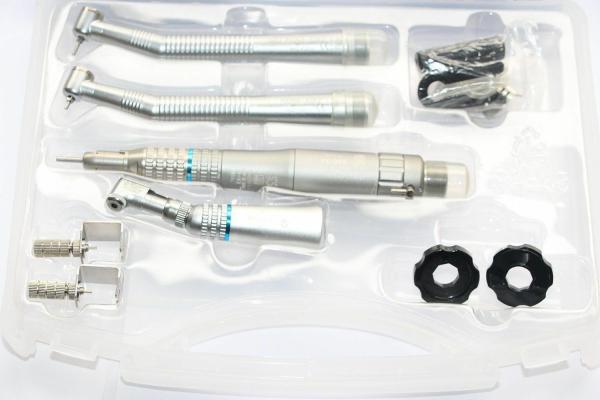

Packing list:

2 x Dental high speed handpiece 2hole/4hole

1 x E-type air motor EX-203 2-Hole/4-Hole

1 x Straight nose cone

1 x Contra Angle handpiece

1 x English manual
