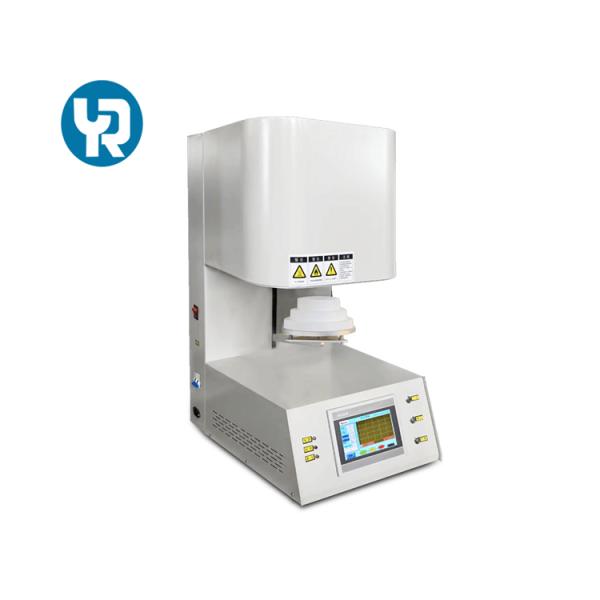

1700C Zirconia Dental Sintering Furnace For Dental Zirconia Crown

Feature for Zirconia Dental Sintering Furnace:

1. YUCREA is a professional manufacturer for dental equipment and dental consumable accessories such as dental sintering furnace; dental milling machine; dental LAB bur; zirconia block; wax; Pmma and so on

2. Automatic program for heating, platform moving. It’s very convenient for dental crown firing.

3. The special high purity Molybdenum disilicide heating elements offer best possible protection against chemical interaction between charge and heating elements.

Character for Zirconia Dental Sintering Furnace :

1. This 1700C Dental zriconia sintering furnace is perfectly suited for sintering zirconia crown

2. The special high purity Molybdenum disilicide heating elements offer best possible protection against chemical interaction between charge and heating elements.

Zirconia Sintering Furnace Technical Parameters:

chamber size:Dia100xH100mm

Max. temperature:1700 ℃ (<2hour)

Working temperature:800-1600℃

Temperature controlling:

1. PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor
2. Touch screen panel which can store 30pcs different programs
3. Built in PID Auto-Tune function with overheating & broken thermocouple broken protection
4. Over temperature protection and alarm allows for operation without attendant.

Temperature accuracy:± 1℃

Temperature Uniformity:± 5℃

Heating rate:0-30℃ /min

Thermocouple:B type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube

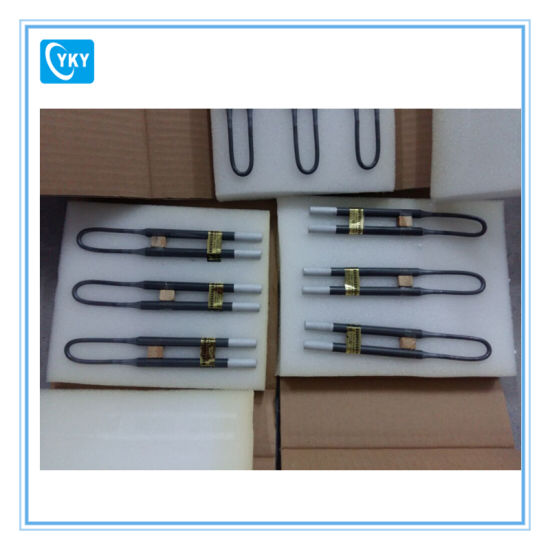

Heating element:U type MoSi2 heating elements(4pcs)

Zirconia Sintering Furnace Chamber:Zirconia Sintering Furnace Three layers of ceramic fiber insulation materials
1. First layer: 1800℃ ceramic fiber board
2. Second layer: 1600℃ ceramic fiber board
3. Third layer: 1260℃ ceramic fiber board

Furnace structure:Double layer steel casing with dual cooling fan, surface temperature below 60℃

Furnace door:

1. Elevator opening with platform
2. Power cutting off when furnace door open

Outer dimension:About 550X420X810mm

Working voltage:220V, 50HZ/60HZ, 1 phases (As per your order)

Rated power:2KW

Weight:Net Weight: about 90kgs
Gross Weight: about 110kgs

Warranty:One year limited warranty with lifetime support. (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products)

ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty
