Specifications
Brand Name :
Yucera
Model Number :
SK-5A 5 Axis milling machine
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
negotiation
Supply Ability :
20000pcs/month
Delivery Time :
15 days
Packaging Details :
1 piece for one package
Drill speed :
0-60000rpm / 500w
After-sale Service :
Online technical support
G. W. :
150KG
Power voltage :
per your requirements
Material :
Acrylic+Metal
Application :
for zirconia/PMMA/Wax/PEEK block
Usage :
5 axis milling machine for zirconia block
Support lanuage: :
English, German, Italian, FrenchSpanish, Portuguese
Description

5 Axes Dentaire CAD CAM Milling Machine For Zirconia PMMA Wax

Fraiseuse 5 Axes Dentaire For Zirconia PMMA Wax 5 Axis Dental CADCAM Milling Machine For Odontologia Equipament

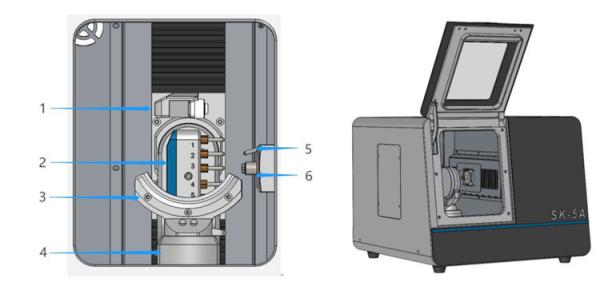

Detailed specification of Yucera 5 axis dental milling machine:

Axis 5 Axis
Cut Method dry milling
Milling Materials zirconia block, pmma, wax, PEEK
Size of milling materials φ98, thickness(10-30mm)
Range of rotation & tling rotation x/y/z: 105 / 135/ 90 A:360° B:±30°
Speed of Principal axis 0-60000rpm / 500w
Driver Full rotation servo motor drive
cutters 5 tools; φ4mm
size of dental 5aixs milling machine CNC machine:55*56.5*46cm;Host milling machine:45*25*45cm
G.W: of dental 5aixs milling machine CNC machine:95kg; Host milling machine:20kg
Compressed Air: 4.5-7.5bar;50ml/min
Min Capacity-Dry: 3000L/min
Power requirement : 800W;220-230v AC,56/60 hz

Support language:

English, German, Italian, French, Dutch, Spanish, Polish, Portuguese, Japanese, Korean, Chinese

Characteristics for Yucera 5 axis dental milling machine :

After 2 years of design and development,more than 100 dental labs tested, our Separation of mechanical and electrical control design to get unanimous praise:

1. Horizontal processing-speed can be increased by nearly 20%

2. simplifying maintenance- When the all-in-one machine fails, the after-sales maintenance is more complicated. The split equipment only needs to replace the processing system to complete the update and maintenance;

3.Tool detection sensor with 2um

4.24hours on-line technical support
5.include hyperdent(free)

5 Axes Dentaire CAD CAM Milling Machine For Zirconia PMMA Wax
Advantage of Yucera 5 Axis dental milling machine:
1.Why is Yucera-5A horizontal processing?(Dental CAD CAM 5 Axis Milling Machine)?
5 Axes Dentaire CAD CAM Milling Machine For Zirconia PMMA Wax

*Horizontal processing VS Vertical machining,Based on the original stable vertical machining, the horizontal cutting equipment puts the center of gravity lower.

*Vertical processing and horizontal processing are cradle processing,There is not much difference between the two in the layout and processing mode, but due to the excellent stability of horizontal processing, the processing speed can be increased by nearly 20%.

2.Why is Yucera-5A a split design?(Dental CAD CAM 5 Axis Milling Machine)?
5 Axes Dentaire CAD CAM Milling Machine For Zirconia PMMA Wax

Easy to maintain:

*When the all-in-one machine fails, the after-sales maintenance is more complicated. The split equipment only needs to replace the processing system to complete the update and maintenance;

*The control system is separated from the processing system to reduce the slight damage to the equipment caused by dust

3.How many teeth can SK-5A cut at one time?(Dental CAD CAM 5 Axis Milling Machine)?

*38-40 units crown/bridge.

Innovative fixture design, compared with a metal fixture, the utilization rate of porcelain blocks is increased by 30%
