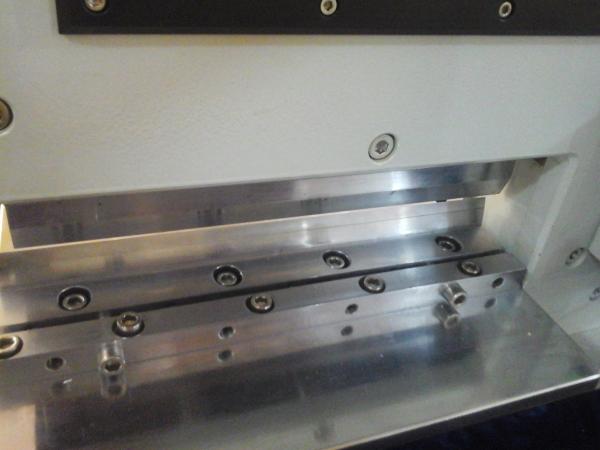

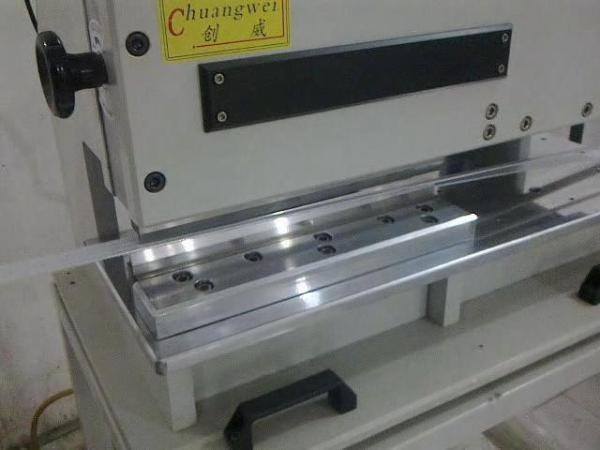

PCB V Cut Machine for Aluminium Substrate 220V RUV Pneumatic
PCB V Cut Machine for Aluminium Substrate 220V RUV Pneumatic
PCB V Cut Machine for Aluminium Substrate 220V RUV Pneumatic
PCB V Cut Machine for Aluminium Substrate 220V RUV Pneumatic
PCB V Cut Machine for Aluminium Substrate 220V RUV Pneumatic
PCB V Cut Machine for Aluminium Substrate 220V RUV Pneumatic
Specifications
Place of Origin :
Dongguan City, Guangdong province, China
Brand Name :
SMTfly
Certification :
CE ISO
Model Number :
SMTfly-3
MOQ :
1 Set
Packaging Details :
seaworthy plywood case,safe, no need to fumigated
Delivery Time :
within 7 days after receipt the payment.
Payment Terms :
T/T ,L/C
Supply Ability :
1000 sets/year
Price :
Negotiable
Warranty :
one year
Blade material :
high speed steel
Blades life :
7-8 months
Cutting capacity :
unlimit
Cutting thickness :
0.3-3.5mm
Description

Pneumatic V-Cut PCB Separator With Customize Platform For Aluminium Substrate CWVC-3

The most professional PCB shearing machine manufacturer in China.

V-CUT PCB shearing machine


1.Max. PCB shearing length is unlimted
2.Shearing PCB without bending and tension stress
3.Safety use, easy operation
4.Shearing process without vibrations


V-CUT PCB shearing machine specifications:

Model SMTfly-3
Max. PCB shearing length unlimited
PCB shearing thickness 0.3-3.5mm
Voltage and Power 110V/220V -- 10W
Working air pressure 0.5-0.7Mpa
PCB shearing speed due to operator skilled level
PCB shearing machine size 780x500x620mm
PCB shearing machine weight 185Kg


V-CUT PCB shearing machine features:


1.The machine was designed to shear pre-scored PCB carefully, without bending and tension stress.
2.Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the shearing process, or thin board even to 0.3mm can be worked safely.
3.Shearing process without vibrations.
4.PCB shearing control method is by pneumatic-driven and electromagnetic valve.
5.PCB control operation is that operator stamps the foot pedal to shear PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.

Our best service

  1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support
  1. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router

Our R&D team continuously upgrade the existing machines to meet the market development trend.
  1. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
  1. Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

Our mission

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

]Production flow

PCB V Cut Machine for Aluminium Substrate 220V RUV Pneumatic

CE Certification

PCB V Cut Machine for Aluminium Substrate 220V RUV Pneumatic

More information welcome to contact us:

Email: sales@dgwill.com
