PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards
PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards
PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards
PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards
PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards
PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards
PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards
PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards
Specifications
Brand Name :
ChuangWei
Model Number :
CWVC-5S
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
50 sets per month
Delivery Time :
5-7 days
Packaging Details :
plywood case
Color :
White
Laser power :
10W(optional)
Type :
UV
Working size :
450*430 mm
Size :
1480mm*1360mm *1412 mm
Precision :
±20 μm
Laser brand :
USA or Germany
Laser Wavelength :
355nm
Laser Scanning Speed :
2500mm/s (max)
Product :
PCB Laser Cutting Machine
Description

PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards Laser PCB Separator Advantages

  • The laser process is completely software-controlled. Varying materials or cutting contours are easily taken into account through adapting the processing parameters and laser paths.
  • In the case of laser cutting with the UV laser, no appreciable mechanical or thermal stresses occur.
  • The laser beam merely requires a few µm as a cutting channel. More components can thus be placed on a panel.
  • The system software differentiates between operation in production and setting up processes. That clearly reduces instances of faulty operation.
  • The fiducial recognition by the integrated vision system is done in the latest version around 100% faster than before.


Laser PCB Separator Machine Principle

PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards

Laser PCB Separator Parameter

Parameter







Technical parameters

Main body of laser1480mm*1360mm*1412 mm
Weight of machine1500Kg
PowerAC220 V
Laser355 nm
Laser

Optowave 10W(US)

Material≤1.2 mm
Precisio±20 μm
Platfor±2 μm
Platform±2 μm
Working area450*430 mm
Maximum3 KW
VibratingCTI(US)
PowerAC220 V
Diameter20±5 μm
Ambient20±2 ℃
Ambient＜60 %
The MachineMarble


Laser PCB Separator Features

1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time
3. High quality ,no distortion,surface clean& uniformity
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed.

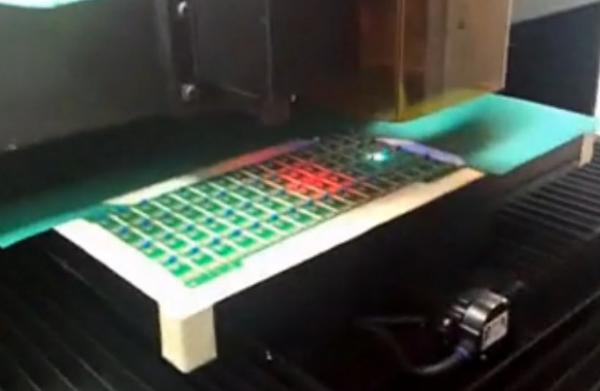

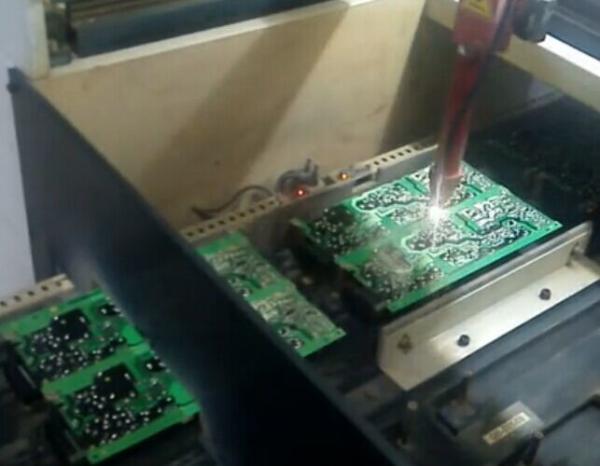

Product Photos


PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB BoardsPCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards
PCB Laser Cutting Machine PCB Depaneling with ±20 μm Precision for FR4 PCB Boards

Our Service


# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# 14 years experience
# 1 year warranty
