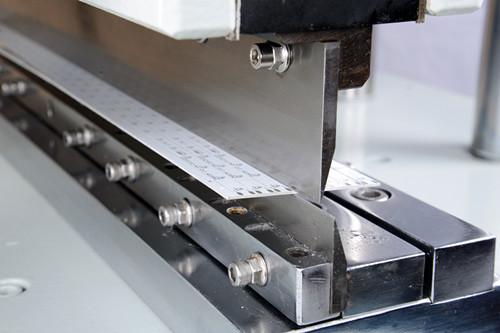

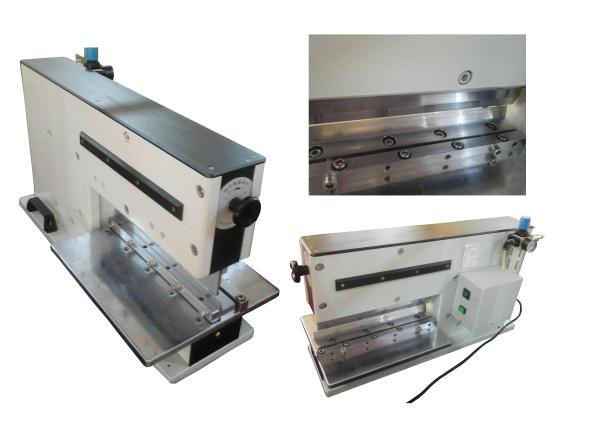

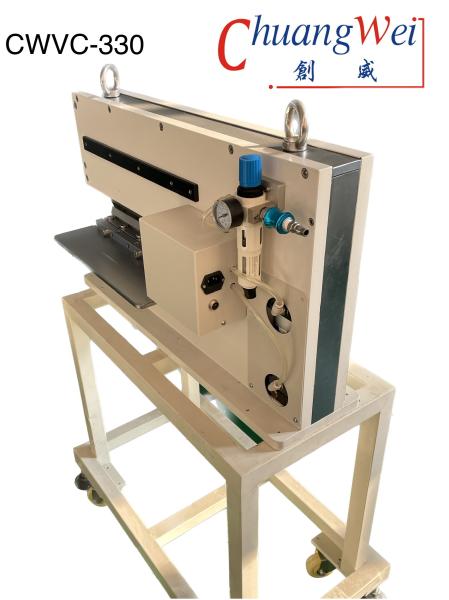

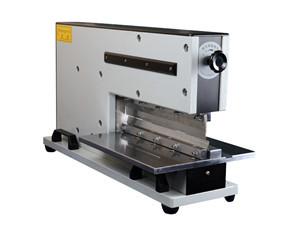

0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades
0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades
0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades
0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades
0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades
0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades
0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades
0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades
Specifications
Place of Origin :
Dongguan City, Guangdong province, China
Brand Name :
ChuangWei
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number :
CWVC-2L
MOQ :
1 set
Packaging Details :
seaworthy plywood case,safe, no need to fumigated
Delivery Time :
within 7 days after receipt the payment.
Payment Terms :
T/T ,L/C
Supply Ability :
800 sets/year
Price :
Negotiable
warranty :
free one year
Blades type :
two linear blades
blade lifes :
7-8 months
certificatio :
CE ISO
Cutting length :
330mm (customize)
cutting thickness :
0.3-3.5mm
Description

0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades CWVC-2L

Details


1. Easy maintenance and operation
2. Thin PCB even to 0.3mm can be sheared safely
3. Shearing process without vibrations due to pneumatic drive unit

Specification

Model CWVC-2L
Max. PCB shearing length 330mm(Can custom made)
PCB shearing thickness 0.3-3.5mm
Voltage and Power 110V/220V 10W
Working air pressure 0.5-0.7Mpa
PCB shearing speed due to operator skilled level
PCB shearing machine size 620*230*400mm
PCB shearing machine weight 165kg


Feture:

1. Pneumatically driven and electromagnetic valve control.
2. Shearing process without vibrations due to pneumatic drive unit .
3. Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.
4. Shearing operation is that operator stamps the foot pedal to shear PCB.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.


Why us


1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2.Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3.Effective customer service. pcb router machine

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.

4.One year warranty for the machines except accessories. b router machine

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

Our mission:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:

PCB industry to become the world's leading solution providers PCB separator. pcb router machine

Production flow

0.5-0.7Mpa working air pressure pcb cutting machine with japan steel linear blades

More information welcome to contact us:

Email: sales@dgwill.com
Wechat/Skype:+86 15273473462


24 Hours Service,Welcome to Inquiry!!
