Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Specifications
Certification :
ISO
MOQ :
10
Place of Origin :
China
Brand Name :
OEM
Model NO. :
LW-R20-K
Installation Mode :
Ground Steel Bracket or Tripod
Application :
Industry, Special Equipment
Operating Frequency :
Ku Frequency Band (16GHz-17GHz)
Power :
<500W
Minimum Range :
1000m
Number of Targets Detected by The System :
>= 60 Pieces
Transport Package :
Aviation Box Packaging
Specification :
Ku frequency band (16GHz-17GHZ)
Trademark :
OME acceptable
Origin :
China
HS Code :
8526109090
Supply Ability :
100pieces/Year
Customization :
Available
Type :
Sensor
Usage :
Security Warning and Protection
Description
Low Altitude Multidimensional Defense System In Key Areas

The low altitude defense system in key areas mainly includes surveillance radar, passive radio detection equipment, multispectral electro-optical cameras, fixed unmanned jamming aircraft, individual handheld jamming guns, and data acquisition and processing centers. The system is easy to install and disassemble, with flexible deployment. It can set up warning areas, alarm areas, and no fly areas within the detection area. The system integrates multiple detection technologies and has real-time monitoring capabilities in multiple frequency bands, all directions, and no blind spots. It provides an integrated solution for preventing the intrusion of unmanned aerial vehicles, powered parachutes, gliders, and helicopters into airports, oil and gas fields, oil depots, border lines, nuclear power plants, bridges, reservoir dams, important government agencies, major conference venues, and other areas.

Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector

performance

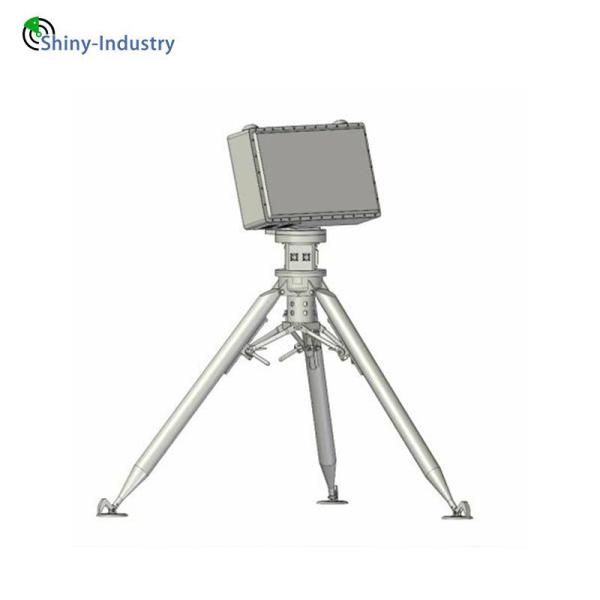

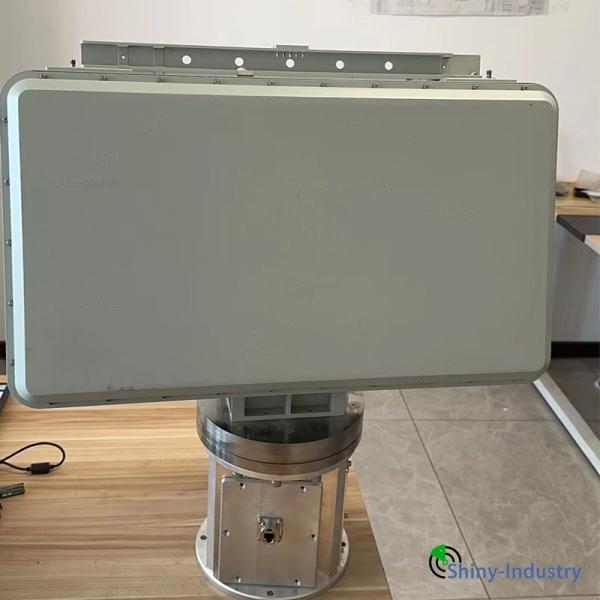

The LW-R20-K low altitude unmanned aerial vehicle early warning radar adopts technologies such as elevation active antenna high-efficiency ammoniated gallium transceiver components, DBF simultaneous multi beam reception, azimuth machine scanning, and structural integration design. It is a developed equipment that can detect and locate unmanned aerial vehicles. It has the characteristics of small size, light weight, high accuracy, and easy use. Can be used for air surveillance in key locations such as nuclear power plants, oil depots, prisons, airports, important government agencies, borders, etc.

Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Technical Parameter
project index
radar frequency Ku frequency band (16GHz-17GHz)
Search Distance R maximum value ≤ 5km, R minimum value>200m
Coverage The azimuth angle covers 0 °~360 °, the elevation angle covers 0 °~30 °, and the height covers 10~1000m
positioning accuracy Distance ≤ 10m, azimuth ≤ 0.5 °, pitch ≤ 0.5 °, radial velocity ≤ 1m/s
resolution ratio Distance ≤ 25m, azimuth angle ≤ 3 °, elevation angle ≤ 4 °, radial velocity ≤ 2m/s
Tracking data rate 2s, starting frame rate of 3 frames per batch
Number of targets detected by the system ≥ 60 pieces
Target classification and recognition ability Support the recognition of fixed wing, rotary wing and other unmanned aerial vehicle targets
power supply AC220v+10%,50Hz±1Hz
Peak emission power ≤500w
weight ≤50kg

Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector

Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
Low Altitude Multidimensional Defense System UAV Early Warning Radar Detector
