Specifications
Certification :
ISO
MOQ :
10
Place of Origin :
China
Brand Name :
OEM
Model NO. :
LW-R25-K
Installation Mode :
Ground Steel Bracket or Tripod
Application :
Industry, Special Equipment
Operating Frequency :
9370+160MHz
Peak Power :
>=150W
Power :
300W
Minimum Range :
≤200m
Transport Package :
Aviation Box Packaging
Specification :
9410± 30MHz
Trademark :
OME acceptable
Origin :
China
HS Code :
8526109090
Supply Ability :
100pieces/Year
Customization :
Available
Type :
Sensor
Usage :
Security Warning and Protection
Description
Low Altitude Multidimensional Defense System In Key Areas

The low altitude defense system in key areas mainly includes surveillance radar, passive radio detection equipment, multispectral electro-optical cameras, fixed unmanned jamming aircraft, individual handheld jamming guns, and data acquisition and processing centers. The system is easy to install and disassemble, with flexible deployment. It can set up warning areas, alarm areas, and no fly areas within the detection area. The system integrates multiple detection technologies and has real-time monitoring capabilities in multiple frequency bands, all directions, and no blind spots. It provides an integrated solution for preventing the intrusion of unmanned aerial vehicles, powered parachutes, gliders, and helicopters into airports, oil and gas fields, oil depots, border lines, nuclear power plants, bridges, reservoir dams, important government agencies, major conference venues, and other areas.

Real Time Monitoring Multidimensional Defense Radar For Low Altitude Flying Targets

performance

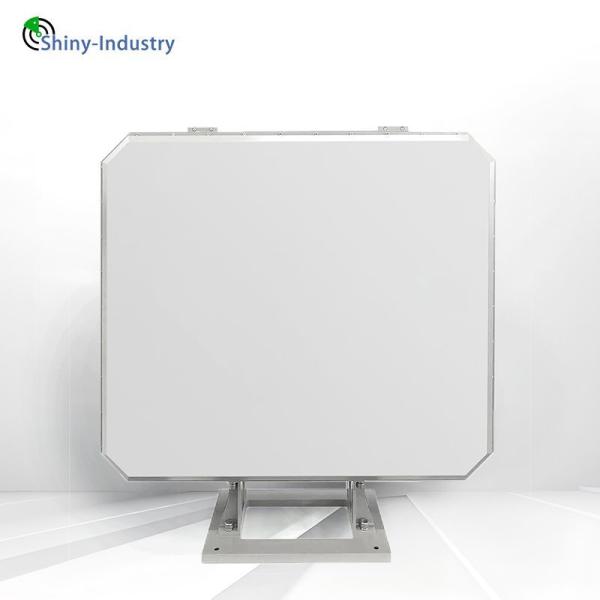

LW-R25-K three coordinate early warning radar is a low altitude small target surveillance radar with advanced technology and excellent performance. This type of radar adopts advanced modern radar technologies such as fully coherent pulse Doppler technology, microstrip patch array antenna technology, elevation digital beamforming technology, simultaneous multi beam reception technology, single pulse angle measurement technology, TWS technology, etc., to achieve active phase scanning in both azimuth and elevation dimensions. It has the characteristics of fast beam scheduling, high data rate, high angle resolution, and accurate height measurement. It can be used for air surveillance in key areas such as border defense, coastal defense, oil and gas fields, oil depots, bridges, reservoirs, nuclear power plants, etc.

Real Time Monitoring Multidimensional Defense Radar For Low Altitude Flying Targets
Technical Parameter
project index
Working frequency range X-band: 9.22GHz-9.48GHz
minimum range 1000m
Low altitude target monitoring mode ≥ 25km (RCS=1m2 coverage height of 2600m)
measurement accuracy (RMS) Distance measurement accuracy: 10m
azimuth angle measurement accuracy: 0.2 °
elevation angle measurement accuracy: 0.3 °
Electric scanning range Orientation: ± 45 °
Pitch: ± 10 °
Tracking data rate ≤3s
Multi objective capability ≥ 200 batches
anti-interference ability Anti ground clutter improvement factor>45dB
Anti meteorological clutter improvement factor>30dB
Equipped with sidelobe masking function
reliability MTBF>5000h
consumption ≤600w
size 650mmx600mmx200mm
weight ≤65Kg
