Specifications
Model NO. :
LW-R25-SG
Installation Mode :
Ground Steel Bracket or Tripod
Certification :
ISO
Application :
Industry, Special Equipment
Operating Frequency :
9370+160MHz
Peak Power :
>=150W
Power :
300W
Minimum Range :
≤200m
Transport Package :
Aviation Box Packaging
Specification :
9410± 30MHz
Trademark :
OME acceptable
Origin :
China
HS Code :
8526109090
Supply Ability :
100pieces/Year
Customization :
Available
Type :
Sensor
Usage :
Security Warning and Protection
MOQ :
10
Place of Origin :
China
Brand Name :
OEM
Description
Water Area Monitoring Multi-sensor System

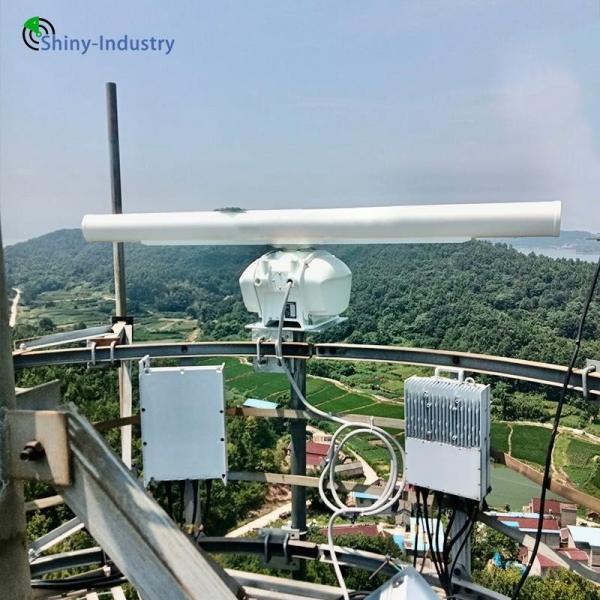

The multi-dimensional joint perception system for water monitoring is a comprehensive water monitoring system that uses monitoring radar, automatic identification of ships (AIS), optical video, and unmanned aerial vehicles as the main perception methods. It has the functions of detecting, identifying, and tracking small targets in complex water environments, as well as radar guided optical equipment tracking, photography and evidence collection, and alarm. Using multi-dimensional data fusion, image recognition, and AI intelligent algorithms to identify illegal fishing, illegal fishing, illegal sand mining, maritime smuggling, and illegal immigration, the system realizes automatic machine search and discovery, automatic alarm, and automatic evidence collection. This system can be applied in fields such as smart fishery administration, smart fishing ports, smart sand control, smart coastal defense, offshore oil and gas fields, offshore wind power plants, bridge collision prevention, etc.

Water Area Monitoring Multi-Sensor System/LW-R25-SG/Radar Detector Upgraded Version for Security Warning and Protection
Water Area Monitoring Multi-Sensor System/LW-R25-SG/Radar Detector Upgraded Version for Security Warning and Protection Centers Mobile Platform
performance

LW-R25-SG solid-state pulse compression water monitoring radar. This radar is a technological upgrade based on the LW-R25-SC model, with main technical indicators superior to the original model. This radar adopts advanced technologies such as solid-state transmitter, digital signal processing, multi waveform pulse compression, and STC, and has the characteristics of long detection range, small blind spot in close range detection, high tracking accuracy, and accurate target tracking. It can be applied in fields such as smart fishery administration, smart fishing ports, smart ports, and smart border defense.

Water Area Monitoring Multi-Sensor System/LW-R25-SG/Radar Detector Upgraded Version for Security Warning and Protection
Technical Parameter
project index
Operating Frequency 9370±160MHz
peak power ≥150w
power 12.0km (RCS>1 m², height 2m, Pd=0.8, Pf=10-6) 20.0km (RCS>10m, height 2m, Pd=0.8, Pf=10-6) 60km (RCS 21000 m², height 10m, Pd=0.8, Pf=10-6)
resolution ratio ≤200m
positioning accuracy Distance resolution: ≤ 15m
Speed resolution: ≤ 1m/s
power Distance accuracy (root mean square): ≤ 8m
Azimuth accuracy (root mean square): ≤ 0.3
reliability 300W
