Specifications
Model NO. :
LW-R25-SC
Installation Mode :
Ground Steel Bracket or Tripod
Certification :
ISO
Application :
Industry, Special Equipment
Operating Frequency :
9410±30MHz
Peak Power :
25kw
Power :
300W
Transport Package :
Aviation Box Packaging
Specification :
9410± 30MHz
Trademark :
OME acceptable
Origin :
China
HS Code :
8526109090
Supply Ability :
100pieces/Year
Customization :
Available
Type :
Sensor
Usage :
Security Warning and Protection
MOQ :
10
Place of Origin :
China
Brand Name :
OEM
Description
Water Area Monitoring Multi-sensor System

The multi-dimensional joint perception system for water monitoring is a comprehensive water monitoring system that uses monitoring radar, automatic identification of ships (AIS), optical video, and unmanned aerial vehicles as the main perception methods. It has the functions of detecting, identifying, and tracking small targets in complex water environments, as well as radar guided optical equipment tracking, photography and evidence collection, and alarm. Using multi-dimensional data fusion, image recognition, and AI intelligent algorithms to identify illegal fishing, illegal fishing, illegal sand mining, maritime smuggling, and illegal immigration, the system realizes automatic machine search and discovery, automatic alarm, and automatic evidence collection. This system can be applied in fields such as smart fishery administration, smart fishing ports, smart sand control, smart coastal defense, offshore oil and gas fields, offshore wind power plants, bridge collision prevention, etc.

Water Area Monitoring Multi-Sensor System/Surveillance Radar LW-R25-SC Security Warning and Protection with LW-R25-SC
Water Area Monitoring Multi-Sensor System/Surveillance Radar LW-R25-SC Security Warning and Protection with LW-R25-SC Centers Mobile Platform
performance

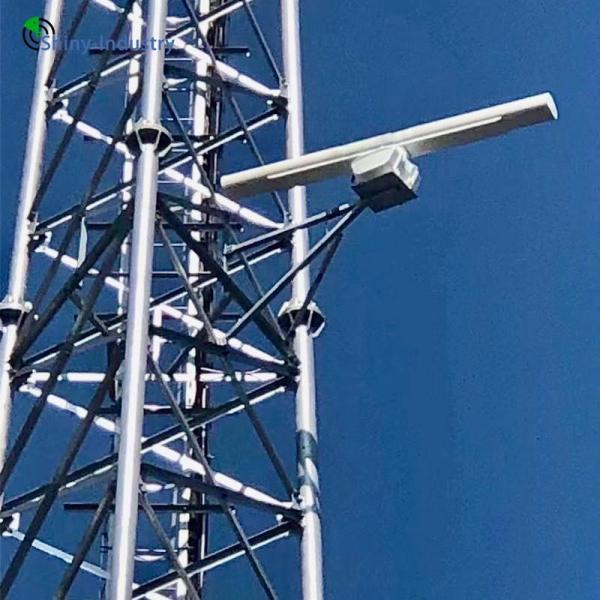

The LW-R25-SC water surveillance radar adopts advanced signal and data processing technology, with excellent situational awareness capability and extremely high reliability. It has excellent detection and tracking capabilities for various types of water surface moving or stationary targets, especially low RCS targets, under complex weather conditions.

Water Area Monitoring Multi-Sensor System/Surveillance Radar LW-R25-SC Security Warning and Protection with LW-R25-SC
Technical Parameter
project index
Operating Frequency 9410+30MHZ
peak power 25Kw
power 10.0km (RCS>1m, height 2m, Pd=0.8, Pf=10-6) 50.0km (RCS>1000m, height 10m, Pd=0.8, Pf=10-6)
resolution ratio Distance resolution: ≤ 10m Speed resolution: ≤ 1m/s
positioning accuracy Distance accuracy (root mean square): ≤ 8m Direction accuracy (root mean square): ≤ 0.3
power 300w
reliability MTBF value (Mean Time Between Failures)>9000hMTTR value (Mean Time to Repair) 0.5h
