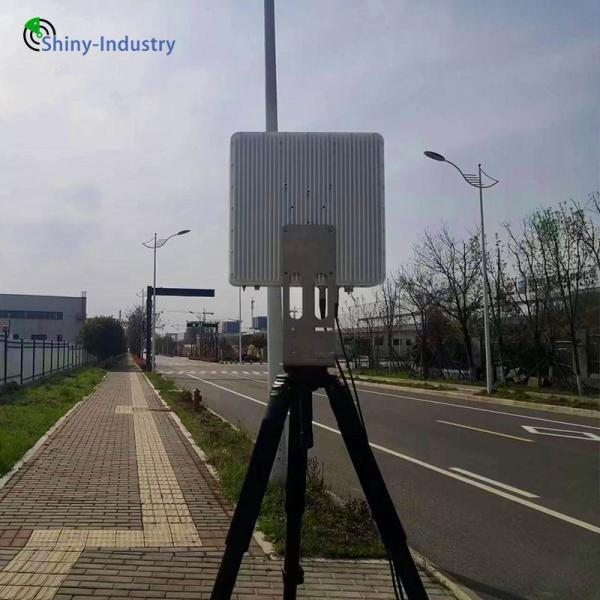

Ground Steel Bracket or Tripod Installation X Band Compact Surveillance Radar for Detection
Ground Steel Bracket or Tripod Installation X Band Compact Surveillance Radar for Detection
Specifications
Certification :
ISO
Model NO. :
RS3000A
Installation Mode :
Ground Steel Bracket or Tripod
Application :
Industry, Special Equipment
External Interfaces :
Rj-45
Power Consumption :
≤30W
Communication Protocol :
TCP/IP
Transport Package :
Aviation Box Packaging
Specification :
X Band
Trademark :
OME acceptable
Origin :
China
HS Code :
8526109090
Supply Ability :
100pieces/Year
Customization :
Available
Type :
Sensor
Usage :
Security Warning and Protection
MOQ :
10
Place of Origin :
China
Brand Name :
OEM
Description
Basic Information

Model NO.RS3000A
Operating frequencyX Band
Work frequency pointeleven
tracking modeTWS
Azimuth scan rangeSingle-sided array phase sweeping ± 45°, by expanding the array, 180°,
270° and 360° phase sweeping can be realized
Pitch coverage7°
Maximum Detection Range1.3km (Pedestrians) ≥ 2.4km (Vehicle/Ships)
Minimum travel distance≤150m
Target velocity range0.5m/s~50m/s(1.8km/h~180km/h)
Packaging & Deliver
weight≤12kg
Structural dimensions350mm*350mm*105mm
Ingress protectionIP66

Ground Steel Bracket or Tripod Installation X Band Compact Surveillance Radar for Detection
Schematic Diagram of the Work

Ground Steel Bracket or Tripod Installation X Band Compact Surveillance Radar for DetectionSchematic Diagram of Radar Multi-Array Combination
Ground Steel Bracket or Tripod Installation X Band Compact Surveillance Radar for Detection
Ground Steel Bracket or Tripod Installation X Band Compact Surveillance Radar for Detection

Ground Steel Bracket or Tripod Installation X Band Compact Surveillance Radar for Detection



Ground Steel Bracket or Tripod Installation X Band Compact Surveillance Radar for Detection
Ground Steel Bracket or Tripod Installation X Band Compact Surveillance Radar for Detection

peculiarity


RS3000A This sophisticated radar is a versatile, fully coherent, one-dimensional active phase-scanning, single-pulse two-coordinate marvel, ideally suited for detecting individuals on foot, vehicles in motion, and ships across varied terrains and marine environments. Through extensive real-world application, optimization, and enhancement, this radar proves exceptionally reliable and robust, even in the harshest conditions such as extreme cold, humid heat, and corrosive salt spray.

Technological Advantages

1) Harnessing cutting-edge active phase scanning technology, this radar achieves unparalleled azimuth electric sweeping. Compared to traditional mechanical scanning radars, it boasts superior technical advantages with a high scanning rate, swift beam direction changes, and remarkable measurement accuracy for diverse targets.

2) Utilizing state-of-the-art radar signal processing technology, the radar ensures minimal false alarms, delivering a pristine monitoring display while accurately identifying and locking onto targets.

3) The pitch beam offers expansive angular coverage, adeptly encompassing ground, sea surfaces, valleys, hillsides, and more, efficiently detecting pedestrians, vehicles, boats, and wildlife.

4) It excels in flexible networking capabilities, allowing seamless integration based on specific needs, enabling one display and control terminal to manage multiple radar hosts simultaneously.

5) Each functional component is crafted with modular precision, featuring straightforward interfaces for effortless maintenance.

6) Showcasing an exquisite structural design, it is lightweight and compact, facilitating easy transportation, handling, and rapid deployment.

7) Embracing a user-centric integration design, the radar operation is straightforward and effective.

8) With power consumption optimization for all active components, the radar exhibits minimal overall power usage, adaptable to diverse power sources.

9) Incorporating a fanless thermal equilibrium technology, backed by thorough simulation optimization and comprehensive physical tests, it excels in extreme environments from high heat to severe cold.

10) The radar's fully sealed design meets IP66 standards, offering exceptional dustproof, waterproof, and anti-salt spray capabilities, ensuring high reliability across Gobi deserts, marine landscapes, and more.
Functions


Primarily serving in border defense and critical site surveillance, this radar monitors personnel, vehicles, ships, and more, with the following key functions:

Efficiently performs search and tracking functions for individuals on foot, moving vehicles, boats, and various targets.

Equipped with online detection, fault diagnosis, fault localization, and temperature monitoring features;

Incorporates self-positioning and orientation capabilities.

Offers features for automatic recording and playback of operational status.

Provides guidance information to upper-level systems with collaborative operational capabilities.

With robust networking functionality, it facilitates coordinated operations among multiple radars.
