Specifications
Certification :
ISO
MOQ :
10
Place of Origin :
China
Brand Name :
OEM
Model NO. :
LW-R25-SG
Installation Mode :
Ground Steel Bracket or Tripod
Application :
Industry, Special Equipment
Operating Frequency :
9370+160MHz
Peak Power :
>=150W
Power :
300W
Minimum Range :
≤200m
Transport Package :
Aviation Box Packaging
Specification :
9410± 30MHz
Trademark :
OME acceptable
Origin :
China
HS Code :
8526109090
Supply Ability :
100pieces/Year
Customization :
Available
Type :
Sensor
Usage :
Security Warning and Protection
Description
Water Area Monitoring Multi-sensor System

Introducing a groundbreaking multi-dimensional joint perception system tailored for comprehensive water monitoring. This state-of-the-art system integrates pivotal technologies such as monitoring radar, Automatic Identification Systems (AIS), optical video, and the deployment of unmanned aerial vehicles. Expertly crafted to excel in complex water environments, it provides unparalleled capabilities in detecting, identifying, and tracking small targets. Leveraging the synergy of radar-guided optical tracking, photography, and evidence collection, it ensures robust security and alerts. Enhanced by cutting-edge multi-dimensional data fusion, image recognition, and AI-driven intelligent algorithms, it adeptly identifies illegal activities such as fishing and sand mining, maritime smuggling, and immigration breaches. The system enables automatic detection, alerting, and evidencing, making it indispensable for fields including smart fishery administration, fishing ports, sand control, coastal defense, offshore oil and gas, wind power installations, and bridge collision prevention.

High Frequency Pulse Compression Water Area Surveillance Radar Multi-Dimensional Customizable
High Frequency Pulse Compression Water Area Surveillance Radar Multi-Dimensional Customizable Centers Mobile Platform
performance

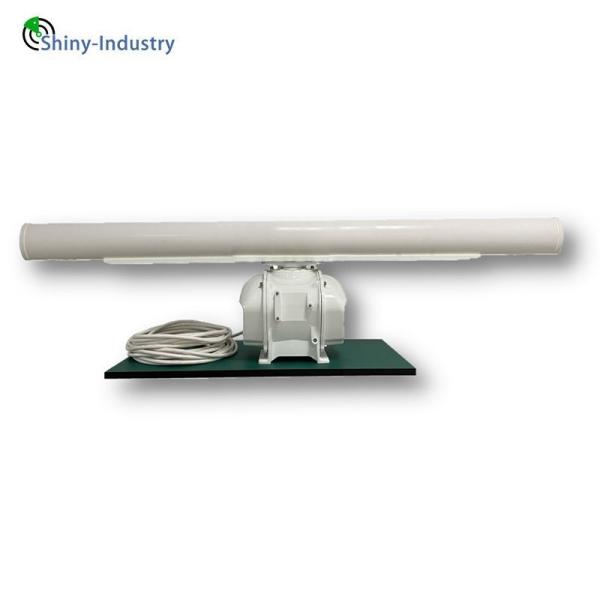

Presenting the LW-R25-SG solid-state pulse compression water monitoring radar, a significant leap forward from the LW-R25-SC model. This superior radar features cutting-edge advancements including a solid-state transmitter, digital signal processing, multi-waveform pulse compression, and sophisticated STC technology. It boasts remarkable technical prowess, offering an extended detection range, minimal blind spots in close range, and superior tracking precision. With these enhancements, it delivers precise target tracking. Perfectly suited for smart fishery administration, fishing ports, smart ports, and border defense, this radar sets the bar for high-performance water monitoring technology.

High Frequency Pulse Compression Water Area Surveillance Radar Multi-Dimensional Customizable
Technical Parameter
project index
Operating Frequency 9370±160MHz
peak power ≥150w
power 12.0km (RCS>1 m², height 2m, Pd=0.8, Pf=10-6) 20.0km (RCS>10m, height 2m, Pd=0.8, Pf=10-6) 60km (RCS 21000 m², height 10m, Pd=0.8, Pf=10-6)
resolution ratio ≤200m
positioning accuracy Distance resolution: ≤ 15m
Speed resolution: ≤ 1m/s
power Distance accuracy (root mean square): ≤ 8m
Azimuth accuracy (root mean square): ≤ 0.3
reliability 300W
