MachineU > China Products > Electrical Equipment & Supplies > Industrial Controls > PLC PAC And Dedicated Controllers
B&R Automation X20CP1584 PLC with Ethernet, POWERLINK and USB Interface, Electrical Modules
B&R Automation X20CP1584 PLC with Ethernet, POWERLINK and USB Interface, Electrical Modules
B&R Automation X20CP1584 PLC with Ethernet, POWERLINK and USB Interface, Electrical Modules
B&R Automation X20CP1584 PLC with Ethernet, POWERLINK and USB Interface, Electrical Modules
B&R Automation X20CP1584 PLC with Ethernet, POWERLINK and USB Interface, Electrical Modules
B&R Automation X20CP1584 PLC with Ethernet, POWERLINK and USB Interface, Electrical Modules
B&R Automation X20CP1584 PLC with Ethernet, POWERLINK and USB Interface, Electrical Modules
B&R Automation X20CP1584 PLC with Ethernet, POWERLINK and USB Interface, Electrical Modules
Specifications
Brand Name :
B&R
Model Number :
X20CP1584
Place of Origin :
Austira
MOQ :
1 piece
Price :
USD 2200-3000 piece
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
10 piece 7 days
Delivery Time :
3-7 working days
Packaging Details :
18*11*8cm
Brand :
B&R
Interface :
PowerLink，Ethernet，USB
Power Supply :
24 VDC -15% / +20%
Input current :
Max. 1.5 A
Protection :
IP20
Temperature :
0-55°C
Type :
PLC
Weight :
0.5 kg
Description

X20CP1584

X20CP1584 is a standard PLC for B&R Automation, with stronger computing power than X20CP1583. Equipped with Ethernet, POWERLINK, and USB interfaces for real-time communication. Although X20CP1584 can meet most of the computing needs, a card slot was designed to insert IO modules to achieve more complex computing needs.

The X20 system combines the advantages of traditional rail and plug-in I/O systems, allowing it to be pre wired outside the system; Hot swapping of electrical modules; Free bus slots for accessory use. There are 253 modules to choose from, compatible with most mainstream fieldbuses, and suitable for various industrial control fields. It is an economical and safe choice for PLC.

Product information description
Interfaces 1x RS232, 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
System module Controller
CPU and X2X Link power supply
Input voltage 24 VDC -15% / +20%
Input current Max. 1.5 A
Fuse Integrated, cannot be replaced
Reverse polarity protection Yes
Controller
CompactFlash slot 1
Real-time clock Nonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C
FPU Yes
Processor
Type Atom E620T
Clock frequency 0.6 GHz
L1 cache
Data code 24 kB
Program code 32 kB
L2 cache 512 kB
Integrated I/O processor Processes I/O data points in the background
Modular interface slots 1
Remanent variables Max. 256 kB
Shortest task class cycle time 400 µs
Typical instruction cycle time 0.0075 µs
Data buffering
Battery monitoring Yes
Lithium battery Min. 2 years at 23°C ambient temperature
Standard memory
RAM 256 MB DDR2 SDRAM
User RAM 1 MB SRAM

B&R Automation X20CP1584 PLC with Ethernet, POWERLINK and USB Interface, Electrical Modules

FAQ
Q: How can I get the quotation?
A:We will submit the quotation in 24 hours if getting detailed informations during working days.In order to quote for you earlier, please provide us the following information together with your inquiry.
1) Your engineering request such as model power, control specifcaiton and model label;
2) If replace model, you can send us the exiting model label for faster confirm.
3) Any special demands or requirements, such as packing, labels,delivery,etc.

Q: And how long is the lead-time?
A: Depending on your specific project,it usually takes 4 to 8 days to ship if we have in store. If we don't have in store, lead
time is about 25-30 days.

Q: Before shipment, how to make sure the product's quality?
A:We will supply you a video for the product detail , packing detail and so on, also will provide the high quality pictures to you forproduction approval.

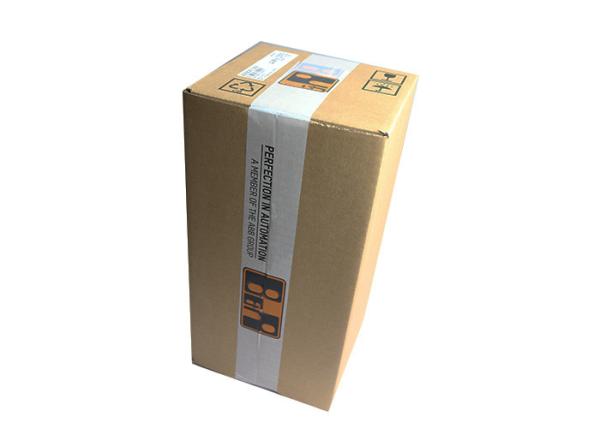

Q: How to pack the goods?
A: 1).100% Original packing, we will also pack into standard export cartons or as per customer’s request to pack to prepare for shipping.

Q: What is your payment terms?
A: Production Payment: 50% deposit in advance, 50% before sending out the final goods if do not have store. 100% deposit in advance for in store model.
