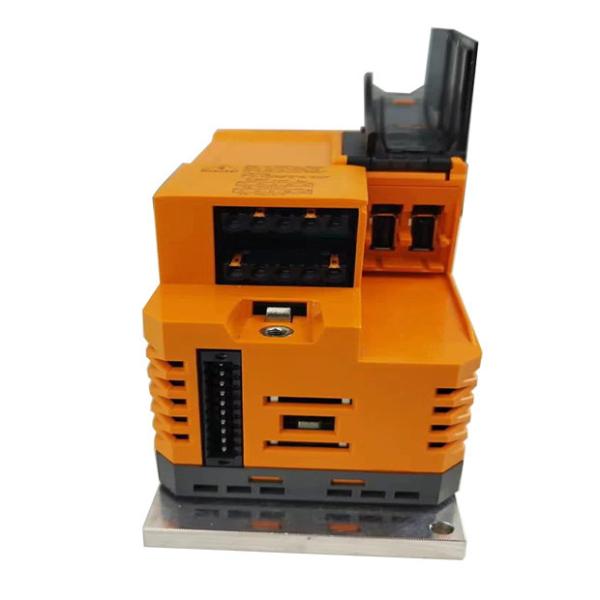

B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13
B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13
B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13
B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13
B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13
B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13
Specifications
Brand Name :
B&R
Model Number :
80SD100XD.W0XX-01
Certification :
CE UL cURus E360421 Servo and stepper motors - Component
Place of Origin :
Austira or China as original
MOQ :
1 piece
Price :
USD 500 -20000 piece as depend on booking price
Payment Terms :
D/A, D/P, T/T, Western Union
Supply Ability :
5 sets 10 days
Delivery Time :
3-70 working days
Packaging Details :
100*550*35 CM
Brand :
b&r stepper motor driver 80SD100XD.W0XX-01
Part number :
b&r linear stepper motor linear stepper motor
Nominal speed nN [rpm :
stepper motor controller 80SD100XD.W0XX-01
Maximum speed nmax [rpm :
synch motor
Maximum torque Mmax [Nm :
80SD100XD.W0XX-01
Description

B&R stepper Motor Driver:

Original 80SD100XD.W0XX-01

DESCRIPTION:

  • 256 microsteps per step
  • 2 trigger inputs
  • Enable input
  • Control for 1 stepper motor (2-phase bipolar, full bridge)
  • Motor holding brake connection
  • Automatic motor identification
  • Holding, boost and continuous current can be defined independent of one another

ACOPOSmicro stepper motor module, X2X Link interface, 24-64 VDC ±25% power supply, 1 motor connection, 10 A continuous current, 2 digital inputs 24 VDC, sink, can be used as trigger inputs, 1 digital output 24 VDC, 1 A, order terminal blocks separately!

Digital inputs / Trigger inputs
Quantity 2
Additional functions 1 input usable as trigger input
Input circuit Sink
Input voltage
Nominal 24 VDC
Maximum 30 VDC
Input current at nominal voltage Approx. 7.5 mA
Input resistance Approx. 3.2 kΩ
Switching threshold
Low <5 VDC
High >15 VDC
Switching delay
Rising edge [Instant recording] Typ. 3 µs
Falling edge [Instant recording] Typ. 4 µs
Electrical isolation
Input - ACOPOS Yes, 500 Veff
Input - Input Yes, 500 Veff
Modulation compared to ground potential Max. ±38 V

Enable inputs
Quantity 1
Nominal voltage 24 VDC
Input voltage 24 VDC ±25%
Input current at nominal voltage Typ. 60 mA
Input circuit Sink
Switching threshold
Low <5 VDC
High >15 VDC
Switching delay at nominal input voltage
Enable 1 → 0, PWM off
Maximum 500 ms (Rev. < L0: 867 ms)
Enable 0 → 1, ready for PWM
Maximum 500 ms
Isolation voltage between input and bus 500 Veff
Input capacitance 10 nF (Rev. < L0: 100 µF)

B&R stepper Motor Drivers(Others)

80SD100XD.C011-01
80PD100XD.C033-01
80SD100PD.C044-01
80SD100XD.C04X-13
80SD100XD.C0XX-01
80SD100PD.C0XX-21
80SD100PD.W044-01
80SD100XD.W0XX-01
80SD100XS.C04X-01
80SD100XS.C04X-13
80SD100XS.C0XX-01
B&R 80sd100xd Stepper Motor Driver80SD100XS.C0XX-01 B&R Stepper Motor controller 80SD100XD.C04X-13
