DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed
DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed
DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed
DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed
DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed
DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed
Specifications
Brand Name :
DFSK
Model Number :
EC31
Place of Origin :
Chongqing, China
MOQ :
1 unit
Payment Terms :
L/C, T/T
Supply Ability :
90000 units per year
Delivery Time :
10-15 working days
Packaging Details :
By Container
Price :
Negotiable
Product Name :
DFSK EC31 Flatbed Mini Truck
Type :
EV Small Truck
Exterior Dimension (mm) :
4730×1635×1985
Fuel :
New Energy
Cargo Size(guardrail, railing) :
2900×1540×350 mm
Battery Capacity :
38.7 kWh
Power :
60 kW
Fast charing :
0.6 h
Max speed :
80 km/h
Peak torque :
200 N.m
Description

DFSK Mini Electric Truck Endurance Range 275km EC31 EV Small Truck Flatbed

EC31 EV Small Flatbed Truck Specification

Model

 EC31 Small Flatbed Truck

Basic Parameter

Size (mm)

 4730*1670*1960

Wheelbase (mm)

 3050

Wheel tread (mm)

 1410/1410

Curb weight (kg)

 1320

Gross weight (kg)

 2600

Acceleration time of 0-50 km/h

 ＜10 Sec

Acceleration time of 50-80 kW/h

 ＜10 Sec

Max speed (km/h)

 80

Seater

 2

Electric Drive and Rear Axle

Motor Type

 Permanent Magnet Synchronous Motor

Rated Power (kW/rpm)

 30/3600-60/9000

Rated Torque (N.m)

 80/200

Estimated Range (WLTP)

 215 km

Battery Rated Energy

 38.7kWh

Transmission/Reducer

 Single-spped Automatic

External Configuration

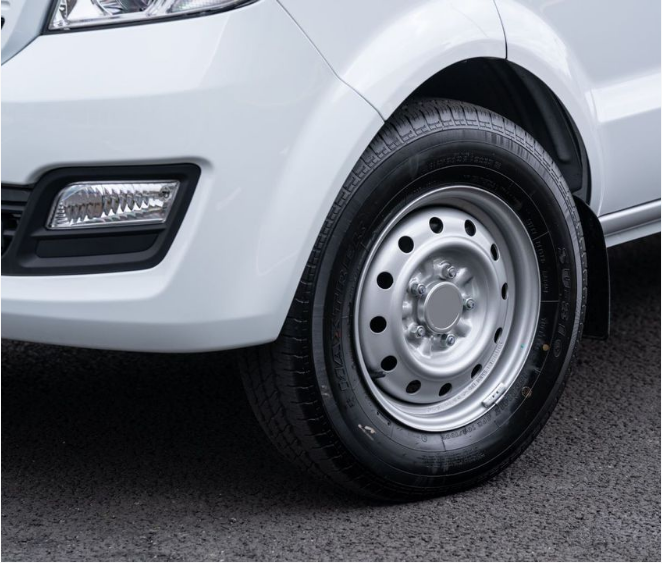

Tire

 185R14LT 8PR

Tire Rim

 Silver Steel Wheel, Steel Spare Tire (silver) (5 bolts)

Wheel Cover

 Steel wheel decoration cover with DONGFENG Logo

Front/Rear Bumper

 Body color, black middle grille

Front combination headlight

 New style: electric height adjustment with automatic headlights

Front fog lights

 ●

Daytime running lights

 ●

Side turn signal

 White lamp shade and yellow light bulb

Full car glass

 Electric lift glass for the front door, glass for rear side

Glass lifter

 Electric lift

Rear combination lights

 Double Reverse Lights & Double Fog Lights, Rear combination light strip

External spray pattern decoration

 Customizable

Internal configuration

interior style

 Black interior

Inside rearview mirror

 Double visors,front passenger seat with make-up mirrior
Audio-visual system MP5 with DAB,Multilingual (only MP5 function available, no information of electric vehicles)

Air Conditioning

 Single steam

Shift control mechanism

 Knob type (SOKON Logo)

Description of seats

 New design, Semi-enclosed cushion, fabric:M085+M086

Seat belt and cover

 Nissan Black, front seat: 3 points, back row: NA

System Structure

Body Type

 Short head, Single row, Non-reversible

Drive Mode

 Rear egine, rear drive

Steering Type

 EPS

Front Suspension

 Mac pherson independent suspension

Rear Suspension

 Non-independent 6-leaf-spring top mounted

Security, Intelligence

Airbag

 Airbag for driver seat

Reversing video image

 MP5 has reversing image

Central control

 Front door with remote central control

Reversing radar

 NA

ABS anti-lock braking

 ●

Manual air conditioning

 ●

Spare wheel

 ●

Vehicle tools

 ○

Charging gun

 ○

Tire pressure monitoring system (TPM)

 ●

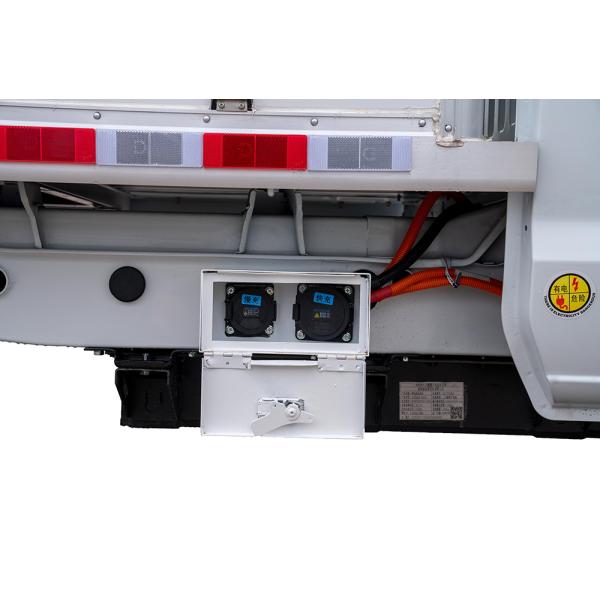

Slow charge European standard fast and slow charging integrated, European standard charging port
Fast charge European standard fast and slow charging integrated, European standard charging port

Body description
Cargo box (guardrail, railing) 2.9m square tube cargo box
(Inner size: 2900×1540×350)

Others
Visual standard parts (including the visual range with five doors and one cover open) Environmentally friendly

"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional

and “-”——Indicates that this configuration is not available

EC31 EV Small Flatbed Truck Features

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed

DFSK EC31 Electric Small Flatbed Truck Large Cargo Space, Cargo size is 4730*1670*1960

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed

DFSK EC31 Small Electric Trucks 275km Mile Range Per Charging

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed

DFSK EC31 Small Electric Trucks Fast Charging, Approved for Fast Charging,90 mins

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed

Certification

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed
DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed

Facotry

DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed
DFSK Mini Electric Vans And Trucks 38.7kWh Endurance Range 275km EC31 EV Small Truck Flatbed
