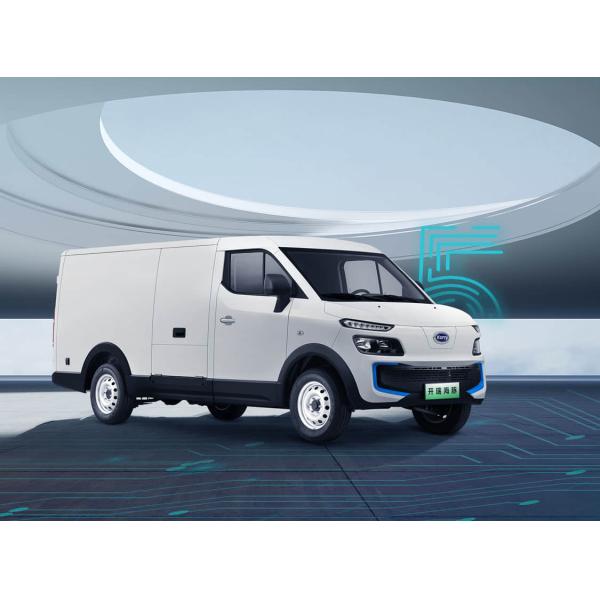

Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use
Specifications
Brand Name :
Chery
Model Number :
Karry Dolphin
Place of Origin :
Chongqing, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80000 units per year
Delivery Time :
10-15 working days
Packaging Details :
By Container
Product Name :
Karry Dolphin
Size :
5457*1850*2046 mm
Type :
Van
Number of Door :
5
Number of Seat :
2
Wheelbase :
3380 mm
Fast Charging :
0.5 hour
Max Speed :
80 km/hour
Battery Capacity :
41.86/43.5 kwh
Wheelbase (front/rear) :
1624/1624 mm
Cargo compartment volume :
7.5 m³
Description

Karry Automobile Dolphin Ev New Energy Electric Vehicle Five Door Two Seat Truck Logistics Vehicle Minivan Household Truck

Specifiction

Announcement Model

 SQR5037XXYBEVH12 SQR5035XXYBEVH12

■ Model

 Economy Edition Wealth Edition

■ Basic parameters

Length × width × height mm

 5457×1850×2046 5457×1850×2046

Wheelbase mm

 3380 3380

Cargo compartment length × width × height mm

 2980×1730,1742×1425,1435 2980×1730,1742×1425,1435

Wheelbase (front/rear) mm

 1624/1624 1624/1624

Number of seats

 2 2

Passenger seat

 ● ●

Cargo compartment volume m³

 7.5 7.5

Tyre specifications

 195/75R16LT 195/75R16LT

Minimum ground clearance (full load) mm

 190 190

Minimum turning diameter m

 13.9 13.9

Maximum speed km/h

 80 80

Curb weight kg

 1620 1650

Total weight kg

 3060 3060

Rated load kg

 1310 1280

CLTC operating range km

 251 270

0~50km/h acceleration time S

 ≤8 ≤8

Maximum climbing grade %

 ≥25 ≥25

■ Motor parameters

Rated power kW

 45 40

Peak power

 80 75

Maximum speed r/min

 12000 9000

Peak torque

 220 265

■ Battery parameters

Battery type

 Lithium iron phosphate Lithium iron phosphate

Battery brand

 Karry Guoxuan

Battery capacity kwh

 41.86 43.5
Fast charging time (min) Normal temperature SOC 30%~80% ≤30 ≤30
Slow charging time (h) Normal temperature SOC 0%~100% - ＜8

■ Braking, suspension, drive mode

Braking system (front/rear)

 Front disc and rear drum Front disc and rear drum
Suspension system (front/rear) Front McPherson independent suspension/rear leaf spring non-independent suspension Front McPherson independent suspension/rear leaf spring non-independent suspension

Drive type

 Rear-mounted rear-wheel drive Rear-mounted rear-wheel drive

■ External View

Black exterior mirrors

 ● ●

Bumper integrated grille

 ● ●

Rear license plate decorative plate (black)

 ● ●

■ Body

Number of cockpit doors

 2 2

Rear side door (right)

 Lift-up opening Lift-up opening

Back door opening method

 Double-opening tailgate Double-opening tailgate

■ Interior

Interior mirror

 — —

PVC carpet (cockpit)

 ● ●

Driver's visor

 ● ●

Multi-function LCD instrument

 ● ●

Two-door step pedals (driver and co-driver)

 ● ●

Cargo compartment aluminum floor

 ● ●

■ Safety

Front disc and rear drum brakes

 ● ●

Front bumper (same color as body)

 ● ●

Rear bumper (black)

 ● ●

All-metal enclosed load-bearing body

 ● ●

High-strength side door anti-collision bar

 ● ●
Non-adjustable collapsible energy-absorbing steering column ● ●

Steering column lock

 ● ●

Position light

 ● ●

Daytime running light

 — —

Rear fog light

 ● ●

Front three-point seat belt

 ● ●

ABS+EBD

 ● ●

Reversing radar

 ● ●

Reversing image

 — —

Enclosed partition with observation window

 ● ●

Fire extinguisher

 — —

Emergency brake double flash reminder

 ● ●

■ Seat

Cloth seat fabric

 ● ●

Driver's seat back angle adjustable

 ● ●

Driver's seat manually adjustable front and rear

 ● ●

Co-driver's seat back angle adjustable

 ● ●

Co-driver's seat manually adjustable front and rear

 ● ●

■ Control device

Electric power steering (EPS)

 ● ●

ECO mode for energy saving

 ● ●

Central lock + remote key

 ● ●

PTC heating system

 ● ●

Electric glass lift for front door

 ● ●

Manual exterior mirrors

 ● ●

Headlights (halogen)

 ● ●

Front room lights

 ● ●

Multi-function steering wheel

 — —

Ordinary steering wheel

 ● ●

Single-tone speaker

 ● ●

■ Audio multimedia
10.1 floating screen (reversing image, Bluetooth, carlife, radio, USB charging and data transmission, no navigation, mobile phone APP) — —

Bluetooth audio

 ● ●

USB interface

 ● ●

2 speakers

 ● ●

■ Special device
Vehicle restrictions (the background can restrict the vehicle and cancel the restrictions) ● ●

LED cargo compartment lighting

 ● ●

Air conditioning system

 ● ●

OTA air upgrade (VCU, MCU, BMS, OBC+DCDC)

 ● ●
In-car temperature control technology for charging conditions (the air conditioning function can be turned on simultaneously when charging) ● ●

Full-size spare tire

 — ●
On-board tools (trailer hook, reflective tripod, reflective vest) ● ●

Slow charging

 — ●

"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional, and "-" - indicates that there is no such configuration;

Features

Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan New Energy Truck for Urban Transport Household Use

Karry Dolphin EV 5 Doors 2 Seats Electric Logistics Minivan, adopting a two-seat blind window cargo body structure design, the new car uses more aviation aluminum in the body materials, which reduces the weight of the vehicle by about 200 kilograms, and the weight of aluminum accounts for 58%, which can effectively absorb and decompose collision energy and improve the safety of the vehicle.

In addition, the 2023 Karry Dolphin EV has a cargo space of 7.5 cubic meters and a rated load of 1.1 tons, which can meet the needs of supermarket distribution and logistics transportation.


The 2023 Karry Dolphin EV features a three-spoke steering wheel with an in-line instrument cluster, while the center console has a floating layout, adding a sense of technology to the interior. In addition, the bee system equipped with the new car supports functions such as remote opening and closing, vehicle condition monitoring, remote pile finding, and remote upgrade. In urban conditions the cruising range will be more than 271 km and 200km full-load range make it sufficient for urban logistics. An alternate model offering a peak power of 75kW and a maximum torque of 265Nm is also available for smoother power delivery.

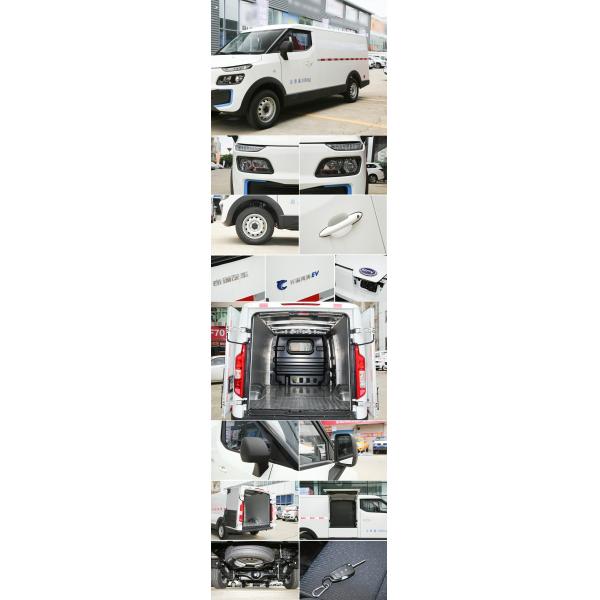

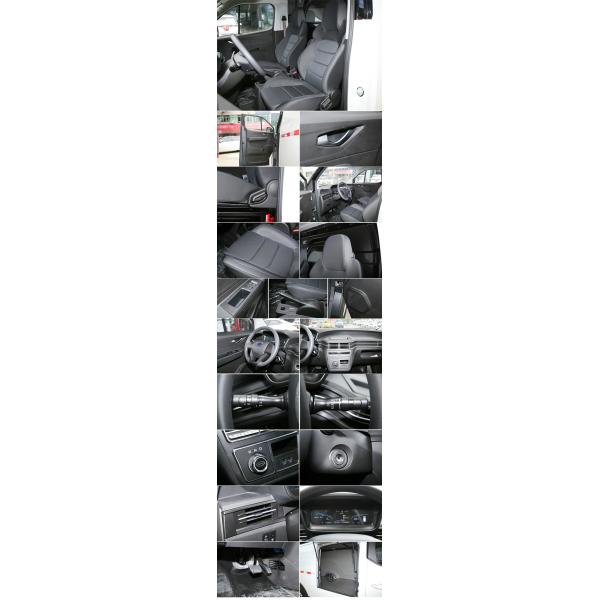

Pictures
