3 Inch Diamond Core Drill Hole Cutter Three Parts 80mm 90mm 117mm Custom
3 Inch Diamond Core Drill Hole Cutter Three Parts 80mm 90mm 117mm Custom
Specifications
Brand Name :
oem
Model Number :
83mm
Certification :
iso9001
Place of Origin :
china
MOQ :
200pcs
Price :
usd
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
15 days
Packaging Details :
white box,, as customer's requirments
name :
Diamond Core Cutting Bits
size :
3 Inch
for :
Reinforced Concrete
Description

3 Inch 80mm 90mm 117mm Diamond Core Drill Hole Cutter For Reinforced Concrete Three Parts

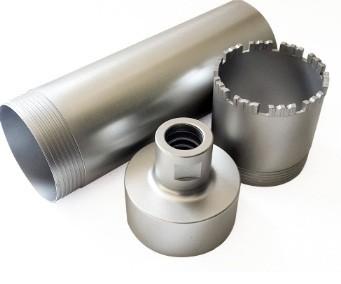

  • Three parts diamond core drill bit for reinforced concrete, concrete
  • All our diamond core bit segments have well designed bond systems combined with high concentrations of top quality synthetic diamonds to provide trouble-free drilling through a variety of applications
  • Diamond core bit Segments including:1)crown type; 2) turbo type; 3)roof type 4)straight type for you choose.

Outer Diameter(mm) Segment No. Wrorking Length(mm) Connection Thread
18 Rim 100/170/200/300/450/500/1000 Reference Picture
20 Rim 100/170/200/300/450/500/1000 Reference Picture
22 Rim 100/170/200/300/450/500/1000 Reference Picture
25 Rim 100/170/200/300/450/500/1000 Reference Picture
28 Rim 100/170/200/300/450/500/1000 Reference Picture
30 Rim or 3, 4 100/170/200/300/450/500/1000 Reference Picture
32 Rim or 3, 4 100/170/200/300/450/500/1000 Reference Picture
34, 35 3, 4 100/170/200/300/450/500/1000 Reference Picture
38 4 100/170/200/300/450/500/1000 Reference Picture
41, 42 4, 5 100/170/200/300/450/500/1000 Reference Picture
45, 46 4, 5 100/170/200/300/450/500/1000 Reference Picture
49 5 100/170/200/300/450/500/1000 Reference Picture
51, 52 5, 6 100/170/200/300/450/500/1000 Reference Picture
56, 57, 58 6 450/500/1000 Reference Picture
61, 62 6 450/500/1000 Reference Picture
65, 66, 67 6 450/500/1000 Reference Picture
71, 72 6, 7 450/500/1000 Reference Picture
76, 77, 78 7 450/500/1000 Reference Picture
81, 82 7 450/500/1000 Reference Picture
87 7 450/500/1000 Reference Picture
91, 92 8 450/500/1000 Reference Picture
101, 102 8, 9 450/500/1000 Reference Picture
107, 108 8, 9 450/500/1000 Reference Picture
111, 112 8, 9 450/500/1000 Reference Picture
117 9 450/500/1000 Reference Picture
120, 121, 122 9, 10 450/500/1000 Reference Picture
125, 126, 127 10 450/500/1000 Reference Picture
131, 132 10, 11 450/500/1000 Reference Picture
142 11 450/500/1000 Reference Picture
151, 152 12 450/500/1000 Reference Picture
158 12 450/500/1000 Reference Picture
161, 162 12 450/500/1000 Reference Picture
171, 172 13 450/500/1000 Reference Picture
178 13 450/500/1000 Reference Picture
181, 182 13, 14 450/500/1000 Reference Picture
187 14 450/500/1000 Reference Picture
192 14 450/500/1000 Reference Picture
200, 201, 202 14, 15 450/500/1000 Reference Picture
212 15 450/500 Reference Picture
218 15 450/500 Reference Picture
220, 225 15 450/500 Reference Picture
227, 230 15 450/500 Reference Picture
250 16, 17, 20 450/500 Reference Picture
270 16, 18, 22 450/500 Reference Picture
300 16, 18, 19, 24 450/500 Reference Picture
320 18, 24 450/500 Reference Picture
350 20, 21, 22, 24 450/500 Reference Picture
400 22, 30 450/500 Reference Picture
450 24, 30 450/500 Reference Picture
500 26, 30 450/500 Reference Picture
550 28, 30 450/500 Reference Picture
600 30, 32 450/500 Reference Picture
Different connections and segment specifications are available upon request.
