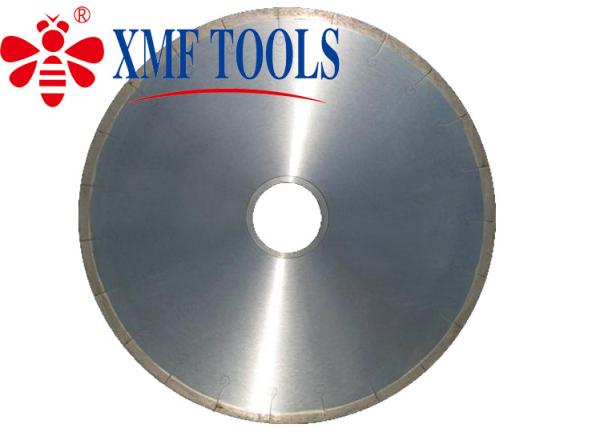

14 8 Inch Diamond Wet Saw Blade For Ceramic Tile MUSIC SLOT Available
14 8 Inch Diamond Wet Saw Blade For Ceramic Tile MUSIC SLOT Available
Specifications
Brand Name :
XMF
Model Number :
105MM-350MM
Certification :
MPA
Place of Origin :
CHINA
MOQ :
500PCS
Price :
dollars 0.7-15 1PCS
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1million PCS 30 days
Packaging Details :
Color Box,White Box,Double Blister
Speed :
fast
size :
14 Inch 8 Inch
name :
Diamond Wet Saw Blade
for :
Ceramic Tile
Description

14 Inch 8 Inch Diamond Wet Saw Blade For Ceramic Tile With MUSIC SLOT

Description

The Diamond continuous rim blades is an excellent value continuous rimmed diamond blade that will fit on a variety of angle grinders, tile saws, masonry bridge saws and masonry saws. (Please see the specifaction table above for details).
The blade wil cut a variety of medium hard tiles as well as ceramic tiles.
Can be used wet or dry.

Different arbor sizes and segment specifications are available upon request

Item NO. Diameter Bore Segment Segment
mm inch size(mm/inch) thickness(mm) height(mm)
US105SH 105 4" 20.00/ 0.787" 1.8 8/10
US110SH 110 4.3" 20.00/ 0.787" 1.8 8/10
US115SH 115 4.5" 22.23/ 0.875" 1.8 8/10
US125SH 125 5" 22.23/ 0.875" 2.0 8/10
US150SH 150 6" 22.23/ 0.875" 2.2 8/10
US180SH 180 7" 22.23/ 0.875" 2.4 8/10
US200SH 200 8" 22.23/ 0.875" 2.4 8/10
US230SH 230 9" 22.23/ 0.875" 2.6 8/10
US250SH 250 10" 22.23/ 0.875" 2.8 8/10
US300SH 300 12" 25.4/ 1" 3.0 8/10
US350SH 350 14" 25.4/ 1" 3.2 10/12/15

Definition

Diamond continuous rim blades have softer bonds for cutting hard materials such as tile, porcelain, granite, ceramic, glass, and other materials that can chip easily. These diamond saw blades don’t have individual segments but instead have a solid, continuous rim or edge. Most diamond continuous rim blades are designed for wet cutting applications, providing the smoothest, chip free cuts

.

These diamond saw blades are most commonly available in 4” to 14” diameters. The smaller, 4” to 5” diameter saw blades are often used in hand-held grinders while the larger sizes are often used with circular saws and tile saws.

There are also variations of diamond continuous rim blades. The J-slot design is one variation that has J-slots around the edge of the blade to help dissipate heat for increased durability, extended blade life, and faster cutting speeds. Additionally, there are J-slot continuous rim blades available for dry cutting applications. People use J-slot diamond saw blade for cutting marble as well.
