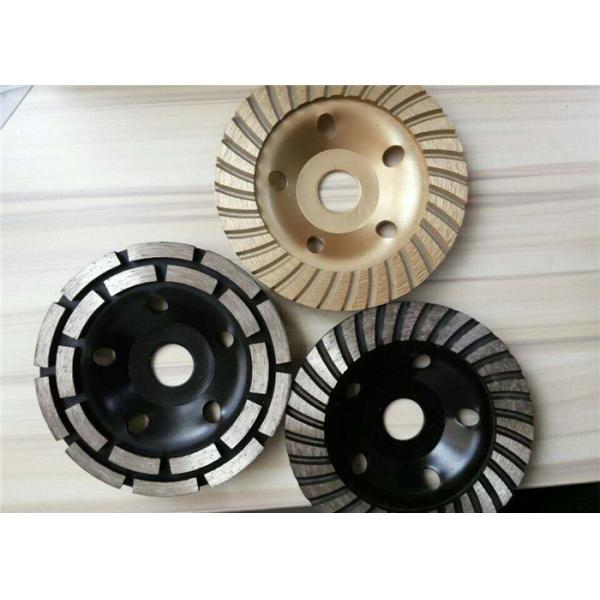

Silver Brazed Diamond Turbo Cup Wheel , Diamond Grinding Wheels MPA Approved
Silver Brazed Diamond Turbo Cup Wheel , Diamond Grinding Wheels MPA Approved
Specifications
Brand Name :
XMF
Model Number :
105MM-180MM
Certification :
MPA
Place of Origin :
CHINA
MOQ :
500PCS
Price :
dollars 1.5-30 1PCS
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
20000 PCS 30 days
Packaging Details :
Color Box,White Box,Double Blister
Color :
Black,blue,green,red,brown，grey，multiple color
Material :
Diamond Metal 65Mn
Size :
4'' 4.5'' 5'' 6'' 7''
Product name :
Silver Brazed Double Row Cup Wheel
Description

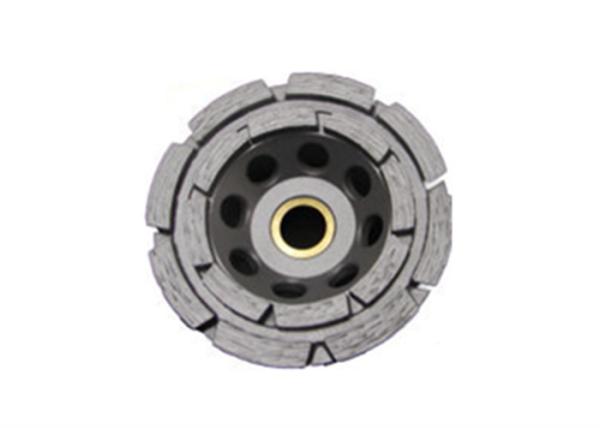

Grey Black 4 Inch Diamond Cup Wheel Silver Brazed Double Row Cup Wheel

Choice of grinding dosage: the grinding speed can not be too high and too low, too low will increase the cutting thickness of the abrasive, grinding wheel consumption, too high to increase the cutting temperature, are adverse to grinding.Grinding speed of bronze bond grinding wheel: dry grinding 12~18 m/S, wet grinding 18 ~22 m/S;Resin binder grinding speed, dry grinding 15~20 m/S, wet grinding 18 ~25 m/S.The radial feed amount (grinding depth) of the grinding wheel is the key factor of rational use of diamond grinding wheel.If the selection is too large, the efficiency will be high, but the consumption of diamond will be large, the surface quality will decline, and even the defects of grinding wheel, such as cracking, dropping and cracking, will occur.The radial feed is generally selected as 0.005 ~0.02 mm.

Smooth grinding and finishing of construction material surface

Features:Double row grinding wheel is ideal for beveling,smothing and shaping,excellant performance.

Application: Granite, marble, concrete products, cured concrete, masonry material and all types of nutural stone.

Machinery: Angle grinder

Different arbor sizes and segment specifications are available upon request

Item No.

 Diameter Bore Segment Segment
inch mm mm inch W(mm) H(mm) NO.
WB105SD 4 '' 105 22.23 7/8 '' 5 8 8/8
WB115SD 4.5 '' 115 22.23 7/8 '' 5 8 9/9
WB125SD 5 '' 125 22.23 7/8 '' 5 8 10/10
WB150SD 6 '' 150 22.23 7/8 '' 5 8 11/11
WB180SD 7 '' 180 22.23 7/8 '' 5 8 12/12
