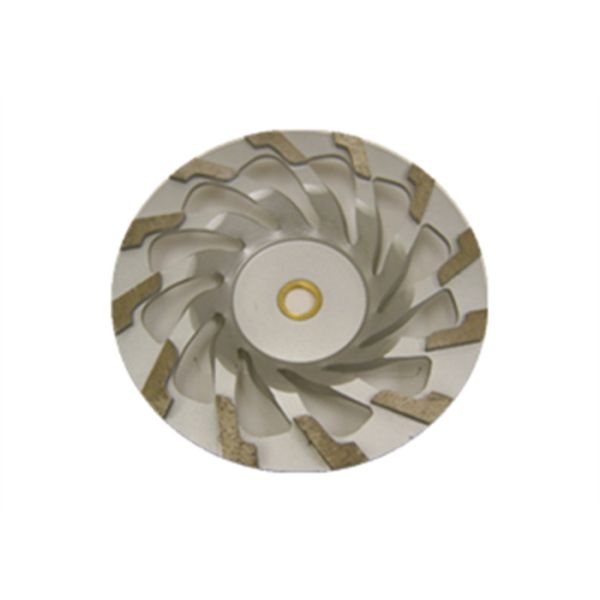

Green Grey 4 '' 4.5 " Inch Diamond Cup Wheel Diamond Angle Grinder Wheel
Diamond is commonly known as "diamond bit".Diamond, as we call it, is a mineral made of pure carbon.Diamond is the hardest substance in nature.Diamond has many USES, such as arts and crafts, cutting tools in industry.Carbon can form diamond at high temperature and pressure.
The diamond grinding wheel is one of the diamond tools, which is mainly used for the surface grinding of various kinds of refractory materials, the products adopt the specially designed conical installation hole structure, easy to assemble and disassemble, and have the advantages of good processing flatness, high grinding efficiency and long life, which can be applied to all domestic and imported grinding equipment.
Granite, concrete and other non-metallic brittle hard materials professional processing, suitable for all kinds of food materials, concrete, ceramics and other materials grinding and polishing, renovation.Chamfering, leveling, rough grinding, fine grinding, etc.
When we choose diamond grinding wheel, we can choose the right one according to our own use.For example, when we polish hard surfaces, we should choose the soft tire wheel;If the ground is quite soft, we can choose relatively hard body.For the ground grinding with different roughness, we should choose the suitable one when selecting the granularity. Generally, we should choose the soft matrix and high quality grinding wheel for coarse grinding, and the grain size can be large.
Smooth grinding and finishing of construction material surface
Features:The silver brazed cup wheel is ideal for beveling,smothing and shaping
Application: Granite, marble, concrete products, cured concrete, masonry material and all types of nutural stone.
Machinery: Angle grinder
Different arbor sizes and segment specifications are available upon request
Item No. | Diameter | Bore | Segment | |||
inch | mm | mm | inch | W(mm) | H(mm) | |
WB105SG | 4 '' | 105 | 22.23 | 7/8 '' | 5.0 | 8 |
WB115SG | 4.5 '' | 115 | 22.23 | 7/8 '' | 5.0 | 8 |
WB125SG | 5 '' | 125 | 22.23 | 7/8 '' | 5.0 | 8 |
WB150SG | 6 '' | 150 | 22.23 | 7/8 '' | 5.0 | 8 |
WB180SG | 7 '' | 180 | 22.23 | 7/8 '' | 5.0 | 8 |
WB250SG | 10 '' | 250 | 22.23 | 7/8 '' | 5.0 | 8 |
