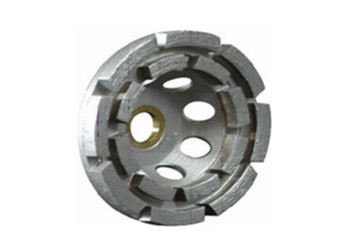

4.5 Inch Diamond Grinding Wheel , Concrete Grinding Cup Wheel Smooth Surface
4.5 Inch Diamond Grinding Wheel , Concrete Grinding Cup Wheel Smooth Surface
Specifications
Brand Name :
XMF
Model Number :
105MM-180MM
Certification :
MPA
Place of Origin :
CHINA
MOQ :
500PCS
Price :
dollars 1.5-30 1PCS
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
20000 PCS 30 days
Packaging Details :
Color Box,White Box,Double Blister
Color :
Black,blue,green,red,brown，grey，multiple color
Material :
Diamond Metal 65Mn
Size :
4'' 4.5'' 5'' 6'' 7''
Product name :
Sintered Double Row Cup Wheel
Description

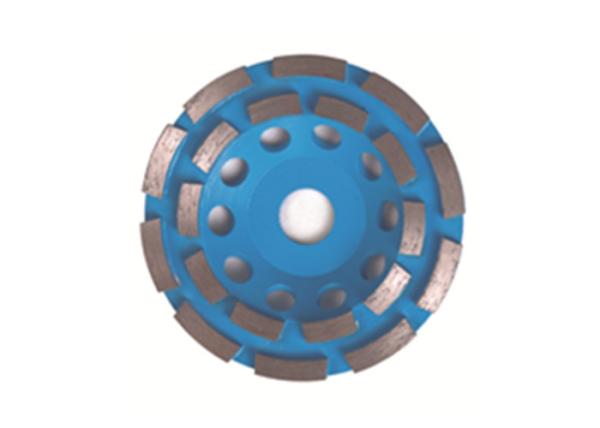

Blue Grey 4.5 Inch Diamond Cup Wheel Sintered Double Row Cup Wheel

Diamond grinding wheel is widely used in grinding hard and high quality hard material and precious material with ordinary grinding wheel.Such as grinding and cutting hard alloy, ceramics, glass, agate, gem, semiconductor materials, stone and other non-metallic workpiece, also applies to titanium alloy.

Choice of particle size: the choice of diamond particle size is the same as the general abrasive.The lower the surface roughness, the finer the particle size.In general grinding, choose #80 ~#120, semi-fine grinding #120~#180, fine grinding #180~W40.

Smooth grinding and finishing of construction material surface

Features:Double row grinding wheel is ideal for beveling,smothing and shaping,excellant performance.

Application: Granite, marble, concrete products, cured concrete, masonry material and all types of nutural stone.

Machinery: Angle grinder

Different arbor sizes and segment specifications are available upon request

Item No.

 Diameter Bore Segment Segment
inch mm mm inch W(mm) H(mm) NO.
WB105SD 4 '' 105 22.23 7/8 '' 5 8 8/8
WB115SD 4.5 '' 115 22.23 7/8 '' 5 8 9/9
WB125SD 5 '' 125 22.23 7/8 '' 5 8 10/10
WB150SD 6 '' 150 22.23 7/8 '' 5 8 11/11
WB180SD 7 '' 180 22.23 7/8 '' 5 8 12/12

4.5 Inch Diamond Grinding Wheel , Concrete Grinding Cup Wheel Smooth Surface
